Flange Type 35m Intelligent Level Transmitter 316 SS Particle Medium

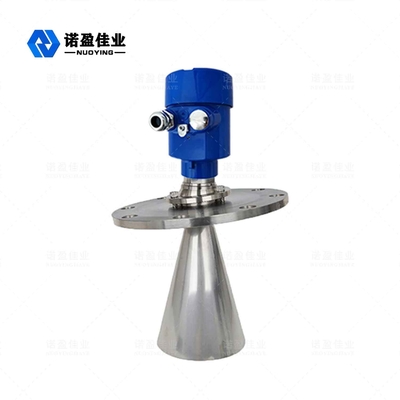

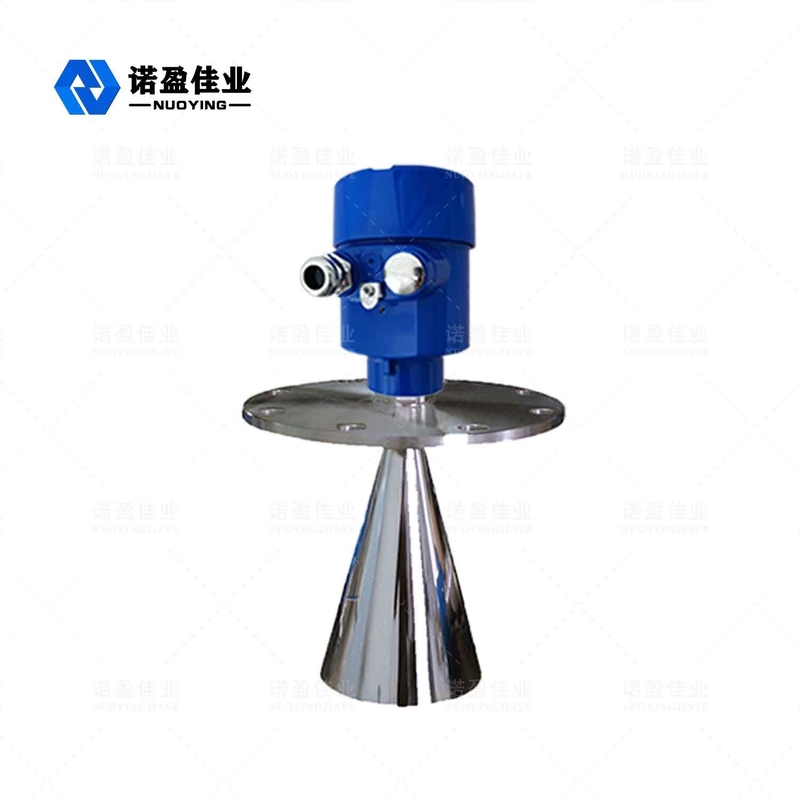

NYRD803 Intelligent Radar Level Meter

Radar level meter adopts microwave pulse measurement method, and can be normal in the range of industrial frequency band, low beam energy, can be installed in a variety of metal, non-metal containers or pipelines, liquid, slurry and particle material level of non-contact continuous measurement. Suitable for dust, temperature, pressure change, inert gas and steam. Radar level meter has no harm to the human body and the environment, but also has the advantages of not being affected by the proportion of medium, not being affected by the change of dielectric constant, and not needing on-site adjustment. It is a very good choice whether for industrial needs, or for the consideration of economic benefits to customers.

Radar Level Meter Technical Parameter

※ Note: Products can be customized according to the specific requirements of users!

Radar Level Meter Operating Principle

Low emission energy pulses through very short microwave transmitting and receiving antenna systems. with the speed of light. Running time can be converted to the electronic components of level signals. A special time for a very short extension method ensures stable and accurate measurements.
Even if the condition more complex cases, there is a false echo, with the latest micro-processing technology and debugging software can accurately analyze the material level echo.

Radar Level Meter Installation requirements

Installation description

Recommended distance(1)from wall to the outer wall of installed short pipe:

• A distance from the tank wall:1/6 of the tank diameter, min. distance is 200mm
• Not allowed to install above the material feeding silo(4)
• Not allowed to install in the central position(3),in case it is installed in the center, it will cause ma false wave echo,it interrupts wave echo and cause signal loss.
• If the distance between the gauge and wall of the tank cannot be secured, the mediums on tank wall will be adhered causing false wave echo, during the gauge debugging, the false wave echo has not be saved.

Optimized installation option

• Antenna size: the bigger the antenna size is, the smaller the wave bean angle is, and the interruption wave echo will be weaker.
• Antenna adjustment: adjust antenna to the optimized measuring position.
• Guided wave tube: the guided wave tube is used to avoid interference wave echo.

NYRD803 Installation inside the tank

Standard installation:

• Antenna cannot be inclined towards tank wall.
• Horn antenna must be extended outside of the installation short pipe; otherwise the antenna extension pipe has to be used.
• The horn antenna must be adjust to be vertical, do not let the bean point towards tank wall.
