Product Details:
|
| Measuring Range: | 35m | Antenna Type: | High Temperature Horn Antenna |
|---|---|---|---|
| Accuracy: | < 0.1% | Process Connection: | Flange(optional), |
| Explosion-proof: | EXiaIICT6 | Operating Temperature: | -40~250℃ |
| Signal Output: | 4-20mA, 4-20mA/HART(Two Wire/FOUR Wire) | Process Pressure: | -1~40BAR |
| Highlight: | High Temperature guided wave radar transmitter,Guided Wave Radar Transmitter 6.8GHz,6.8GHz radar type level sensor |
||

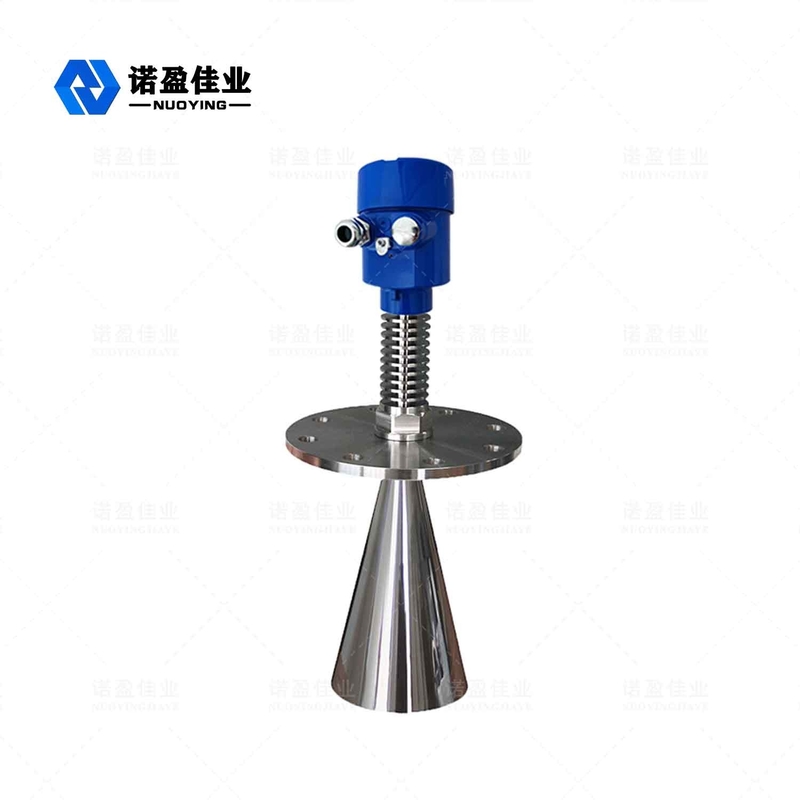

NYRD803 (High Temperature Type)Intelligent Radar Level Meter
Radar level meter is suitable for liquid, slurry and granular material level of non-contact continuous measurement, suitable for temperature, pressure change; Where inert gases and volatiles are present.
The measurement method of microwave pulse is adopted, and it can work normally in the range of industrial frequency band. Low beam energy, can be installed in a variety of metal, non-metal containers or pipes, no harm to human body and the environment.
Radar Level Meter Technical Parameter
| Application |
Process conditions simple, Liquid, slurry, solid examples:Liquid water storage tank; Soda acid storage tank; Slurry tank; Solid particles; Small tanks |
| Measuring range | 35m |
| Material | 304,316 (optional) |
| Fitting process | Flange(optional), |
| Process temperature | -40-250℃ |
| Process presure: | -1~40bar,-0.1~4MPa |
| Repeatability | ± 3mm |
| Accuracy | < 0.1% |
| Frequency rate limits | 6.8GHz |
| Explosion-proof | EXiaIICT6 |
| Protection grade | IP67 |
| Signal output | 4-20mA, 4-20mA/HART(Two wire/FOUR wire) |
| Power supply | 24VDC |
※ Note: Products can be customized according to the specific requirements of users!

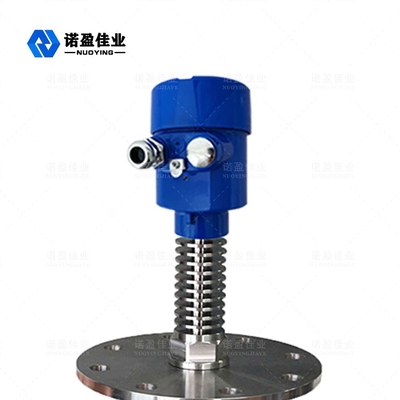

Radar level meter antenna to join structure of radiator, radiator is a kind of to electrical appliances used hot electron component cooling device, made more than 304/316 of material such as stainless steel sheet structure. The heat sink can make the heat from the components more effective conduction, so that the product can be applied to higher temperature occasions.
