Cast Aluminum Radar Level Meter 20mA HART Slurry Solid Particles

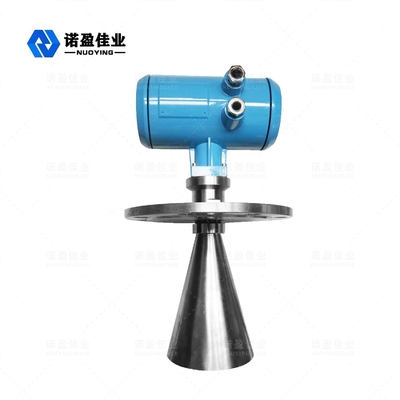

NYRD803 Stainless Steel Housing Intelligent Radar Level Meter Level Transmitter

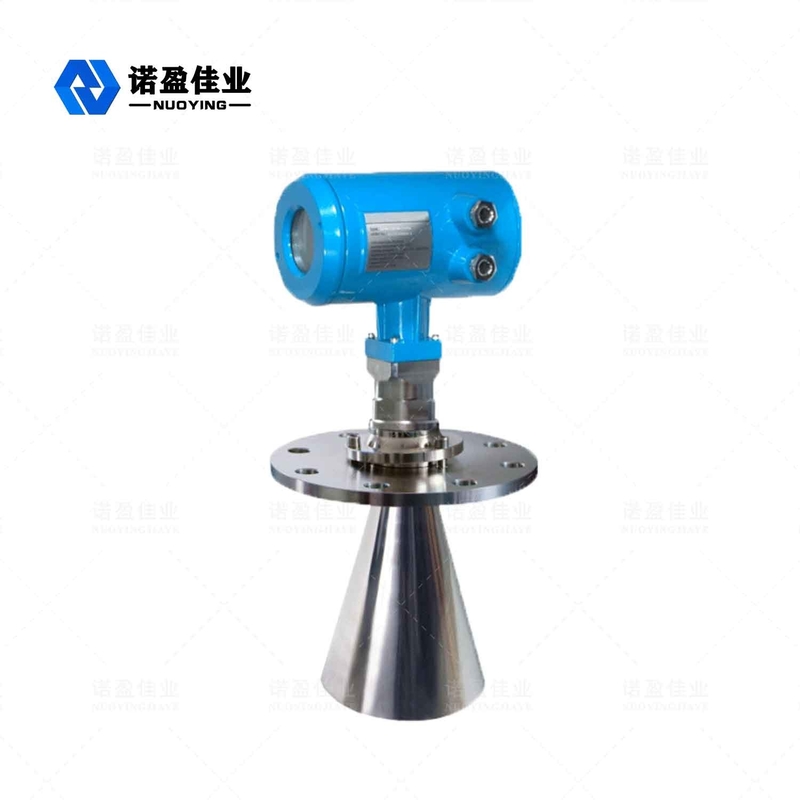

NYRD803 Intelligent Radar Level Meter

Radar Level Meter Operating Principle

Low emission energy pulse is very short by microwave transmitting and receiving antenna system. At the speed of light. The running time can be converted to the level signal of electronic components. The special time of a very short extension method ensures stable and accurate measurements.

False echo will appear even under complicated conditions. With the help of the latest micro-processing technology and debugging software, the material level echo can be accurately analyzed.

Radar Level Meter Technical Parameter

※ Note: Products can be customized according to the specific requirements of users!

Radar Level Meter Design Features

◎ NYRD803 of level meter is suitable for continuous non-contact measurements of liquids, Slurry and pellets, pressure variation; the presence of inert gases and volatile situations
◎ Use microwave pulse measurement method, it can be worked normally within the band of frequent industry . For the lower energy beam, can be installed on a variety of metals, non-metallic container or pipe, no harm to humans and the environment.

Radar Level Meter Installation requirements

Optimized installation option

• Antenna size: the bigger the antenna size is, the smaller the wave bean angle is, and the interruption wave echo will be weaker.
• Antenna adjustment: adjust antenna to the optimized measuring position.
• Guided wave tube: the guided wave tube is used to avoid interference wave echo.

NYRD803 Installation inside the tank

Standard installation:

• Antenna cannot be inclined towards tank wall.
• Horn antenna must be extended outside of the installation short pipe; otherwise the antenna extension pipe has to be used.
• The horn antenna must be adjust to be vertical, do not let the bean point towards tank wall.

Radar Level Meter Measuring Conditions

Attention

• The measuring range counts from the point where the wave beam touches the bottom of the tank, but under special conditions, if the bottom of the tank is concave or tapered, it is not possible to measure when material level is lower than this point.
• If the medium is low medium electric constant, when it is at the low liquid level, it is visible at the bottom of the tank, now to secure measuring precision, we suggest setting the cero position at the low height C position.
• Theoretically, it is possible to reach the tip point of the antenna for measuring, but considering the influence of the corrosion and adherence, the final value of the measuring range must be at the point 100mm way from the tip of the antenna
• For overflow protection, we can define a safe distance added on the blind area.
• The Min. measuring range is related to the antenna.
• Under different concentration conditions, foams can absorb and reflect microwave, but under certain conditions, it is measurable.
