Product Details:
|
| Measurement Range: | Nge: 0 ~ 5g / Cm3 | Accuracy: | 0.002g/cm3 |
|---|---|---|---|
| Temperature: | 0 ~ 300 ℃ | Application: | Differential Pressure Mud |
| Output: | 4-20mA DC+HART | Function: | Inline Density Meter |
| High Light: | LCD Tuning Fork Density Meter,Milk Density Meter Side mounted,Elbow Mounted online density meter |
||

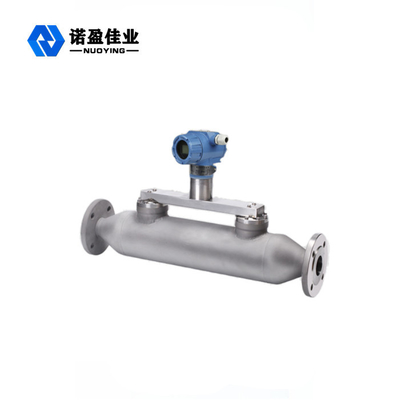

Side-mounted And Elbow-mounted LCD Online Density Meter For Milk
Side-mounted And Elbow-mounted LCD Online Density Meter For Milk Description:
Differential pressure online density meter (also known as online density transmitter) is a device for continuous online measurement of liquid concentration and density, which can be directly used in industrial production processes. The intelligent online density meter adopts the principle of differential pressure density meter, which can calculate the density value according to the differential pressure value of the medium at a certain vertical distance, and automatically perform temperature compensation, with high precision, good reliability, and simple installation and use.
Side-mounted And Elbow-mounted LCD Online Density Meter For Milk Parameters:
| Singnal output | 4-20mA current output, superimposed digital signal (HART protocol) |
| Density range: | 0-5g/cm3; |
| Accuracy | 0.002g/cm3 |
| Power supply | 16-30VDC power supply |
| Resolution | 0.001g/cm3 |
| Temperature range | 0-300℃ |
| Temperature accuracy | 0.5℃ |
| Ambient temperature | -10～60℃ |
| Humidity range | 0-90% |
| Damping adjustment | 0-16 seconds; 0-32 seconds |
| Wetted material | 316L stainless steel Hastelloy |
| shell | Aluminum alloy |
Side-mounted And Elbow-mounted LCD Online Density Meter For Milk Application:
1.Dairy industry (condensed milk, lactose, cheese, cottage cheese, lactic acid, etc.)
2.Mining (coal, potash, brine, phosphate, calcium compounds, limestone, copper, gold, etc.)
3.Food processing (tomato juice, grape juice, lemon juice, ketchup, molasses, vegetable oil, fructose syrup, jelly, jam, etc.)
4.Pulp and paper industry (black pulp, green pulp, pulp cleaning, evaporator, caustic, etc.)
5.Beverage processing (beer, soft drinks, fruit wine, instant coffee, malt, etc.)
6.Chemical (caustic soda, acid, urea, detergent, polymer density, ethylene glycol, sodium chloride, sodium hydroxide, etc.)
7.Oil refining (lubricating oil, aromatics, fuel oil, vegetable oil, etc.)
8.Sugar industry and winemaking industry (extracting fruit juice, syrup, grape juice, lime juice density, alcohol GL, molasses, hexane/ethanol interface, etc.)
9.Petrochemical (natural gas, oil and gas washing, kerosene, lubricating oil, oil/water interface, etc.)
