Product Details:
|
| Features: | Applied To A Variety Of Complex Conditions. | Products Model: | NYRD80X |
|---|---|---|---|
| Typical Application: | Dust, Small Particals Of Material, No Mixing Liquid | Process Temperature: | -40~130℃ |
| Type: | Non-contact | ||
| High Light: | Radar Level Measurement Gauge,Radar Level Gauge NYRD80X,Long Range Radar Level Sensor 26GHz |
||

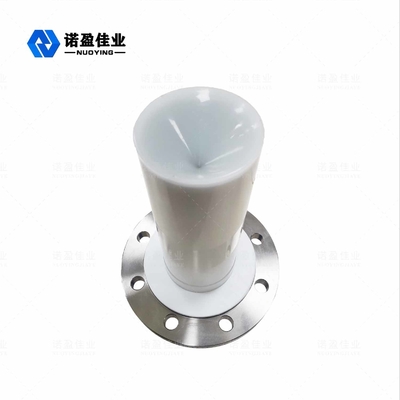

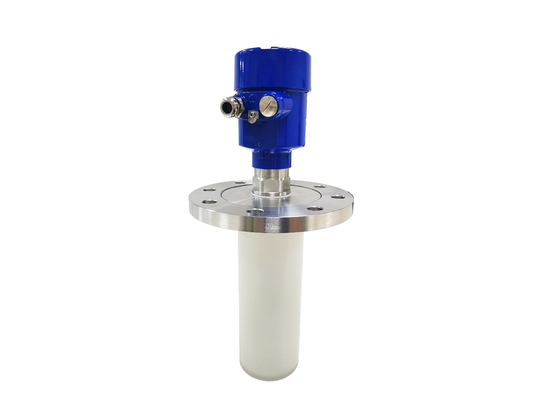

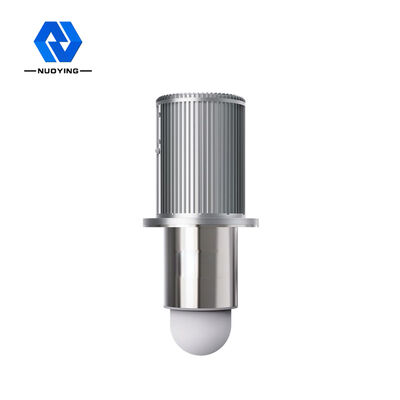

The radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions such as reaction gold and solid silos.
Working principle of Radar Level Transmitter
The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal (because the pulse propagation speed is extremely fast, the electromagnetic wave reaches the target and is reflected back to the receiver. The time it takes to go back and forth is almost instantaneous)
Datum of measurement: the sealing surface of the underside of the thread or flange.
Note: when using radar object level timing, make sure that the highest material level cannot enter the blind area of measurement (the area shown in D).
Design features of Radar Level Transmitter
◎Antenna size is small, easy to install, non-contact radar, no wear, no pollution.
◎Almost impervious to corrosion and foam. Not affected by medium density, temperature and pressure change.
◎Serious dust environment has little effect on the work of high frequency level meter.
◎Shorter wavelengths, better reflection of sloping solid surfaces.
◎Beam Angle is small, energy concentration, enhance the echo ability at the same time is conducive to avoid interference.
◎The measurement blind area is smaller, and good results can be achieved for small tank measurement.
◎High signal-to-noise ratio, even in the case of fluctuations can achieve better performance.
◎High frequency, is the best choice for measuring solid and low dielectric constant media.
Technical parameter of NYRD86 Radar Level Transmitter
| Typical application | All kinds of liquid (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc) |
| All kinds of dust (strong dust, dust, cement powder, lime powder, fly ash, crystallization, etc) | |
| All kinds of solid (grain, small stones, iron ore, coal, etc.) | |
| Product model | NYRD805,NYRD806,NYRD807,NYRD808,NYRD809,NYRD810,NYRD86 |
| NYRD87, NYRD-PB, NYRD-SD, NYRD-TJ, NYRD-SL | |
| Antenna form | Bar type, water type, plate type, horn type, buffing surface, perspective lens |
| Antenna material | PTFE, 304/316, PP, PFA |
| Measuring range | 10m, 20m, 30m, 35m, 40m, 80m |
| Measurement accuracy | 0.05%~0.1% F.S |
| Power supply | 24VDC(two wire, four wire), 220VAC |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature |
- 40 ~ + 130 ℃, -40 ~ + 150 ℃, -40 ~ + 260 ℃,- 40 ~ + 1200 ℃ |
| Process pressure | - 0.1 ~ 0. 3MPa, - 0. 1 ~ 2. 0MPa, - 0. 1 ~ 4. 0MPa |
| Process connection | Thread, bracket, flange, sanitary clamp (optional) |
| Electrical interface | M20×1.5, ½ "NPT |
| Protection grade | IP65, IP67, IP 68 (optional) |
| Explosion-proof grade | ExiaIICT6 Ga, ExdIICT6Gb(see certificate for details) |
※Note: The product can be customized according to the specific requirements of users!
