Product Details:
|
Antenna Form: | Horn Type, Buffing Surface,etc. | Antenna Material: | PTFE, 304/316, PP, PFA |
---|---|---|---|
Measuring Range: | 10m, 20m, 30m, 35m, 40m, 80m | Measurement Accuracy: | 0.05%~0.1% F.S |
Power Supply: | 24VDC(two Wire, Four Wire), 220VAC | Process Connection: | Thread, Bracket,Flange, Sanitary Clamp |
Process Temperature: | - 40 ~ + 130 ℃ | Process Pressure: | - 0.1 ~ 0. 3MPa |
High Light: | Non Contact Liquid Level Transmitter,26G Radar Level Meter,Liquid Radar Level Meter |

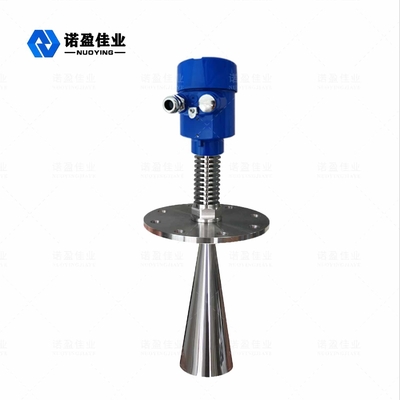

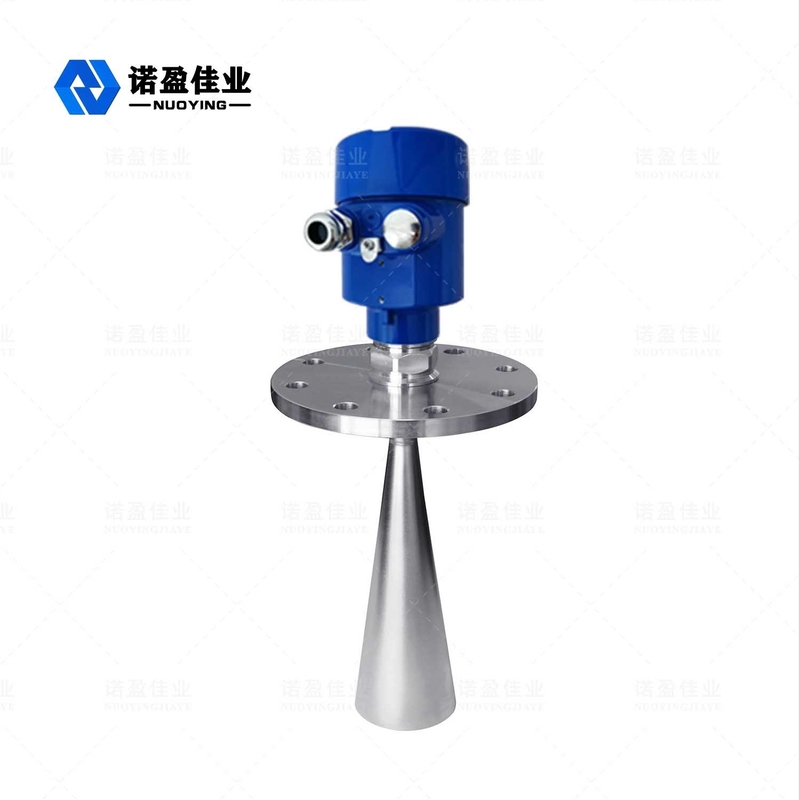

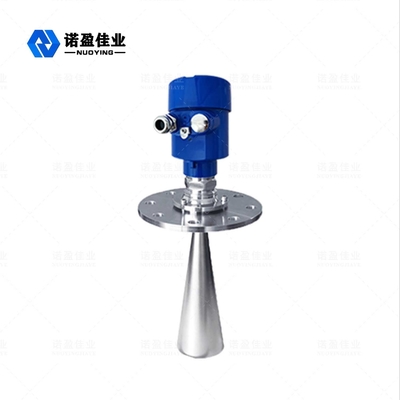

Non-contact Level Measurement Meter Radar 26G Radar Level Meter Liquid Level Transmitter
26G Radar Level Meter Discription
The radar level meter NYRD806 series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions such as reaction gold and solid silos.
26G Radar Level Meter Working Principle
The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal.
26G Radar Level Meter Design Features
◎Antenna size is small, easy to install, non-contact radar, no wear, no pollution.
◎High frequency, is the best choice for measuring solid and low dielectric constant media.
◎Almost impervious to corrosion and foam. Not affected by medium density, temperature and pressure change.
◎High signal-to-noise ratio, even in the case of fluctuations can achieve better performance.
◎Serious dust environment has little effect on the work of high frequency level meter.
※Note: The product can be customized according to the specific requirements of users!
