Product Details:
|
| Typical Application: | Liquids,strong Corrosion Liquid. | Process Temperature: | -40~130℃ |
|---|---|---|---|
| Process Pressure: | -0.1~1.0MPa | Measuring Range: | 20m |
| Measuring Accuracy: | ±5mm | Power Supply: | 24VDC |
| Signal Output: | 4...20mA/Modbus... | Explosion Proof Grade: | Exia II CT6 Ga |
| High Light: | Radar Level Meter Transmitter,Radar Level Meter 26GHz Pulse,Anticorrosive Type Radar Level Transmitter |
||

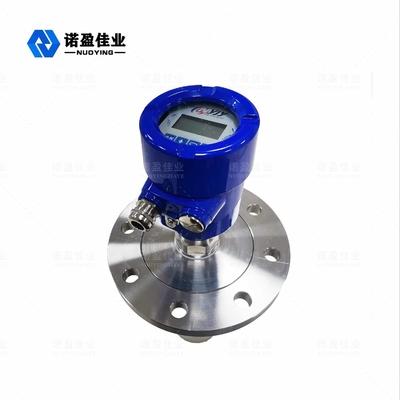

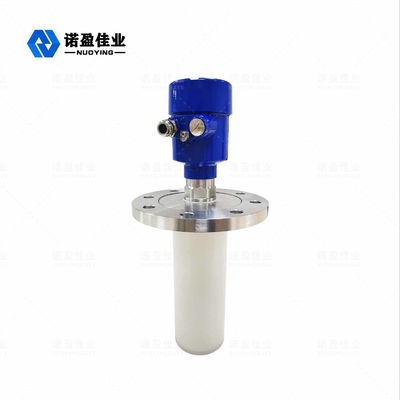

High Frequency NYRD86 26GHz Pulse Radar Level Meter Transmitter Anticorrosive Type
NYRD86 26GHz Pulse Radar Level MeterTransmitter
The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse pulse touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal (because the pulse propagation speed is extremely fast, the electromagnetic wave reaches the target and is reflected back to the receiver. The time it takes to go back and forth is almost instantaneous).
NYRD86 26GHz Pulse Radar Level MeterTransmitter Typical applications
1. Various liquids (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc.)
2. All kinds of dust (strong dust, floating dust, cement powder, lime powder, fly ash, crystallization, etc.)
3. Various solids (grain, pebbles, iron ore, coal, etc.)
NYRD86 26GHz Pulse Radar Level Meter Technical Parameter:
| Typical application |
Liquids,strong corrosion liquid. |
| Transmit frequency | 26GHz |
| Products model | NYRD86 |

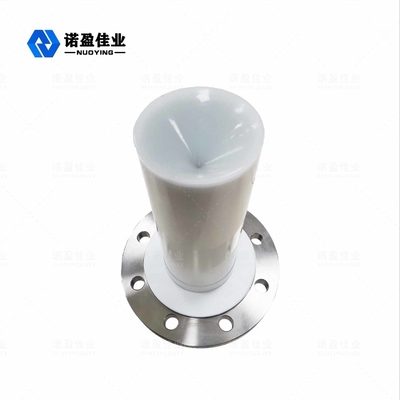

| Antenna type | Rod type |
| Antenna material | PTFE |
| Measuring range | 20m |
| Measuring accuracy | ±5mm |
| Power supply | 24VDC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~130℃ |
| Process pressure | -0.1~1.0MPa |
| Procedure connection | Flange(optional) |
| Protection level | IP67 |
| Explosion proof grade | Exia II CT6 Ga |
Note: Products can be customized according to the specific requirement of users!
