Product Details:
|
| Typical Application: | Liquid With Simple Process | Antenna Material: | PTFE |
|---|---|---|---|
| Measuring Range: | 20m | Media Temperature: | -40~+130℃ |
| Process Pressure: | -0.1~0.3MPa | Process Connection: | Thread(optional) |
| Power Supply: | 24VDC(Two Lines, Four Lines) | Accuracy: | ＜0.1%F.S |
| High Light: | 20mA Radar Type Level Transmitter,Radar Level Meter 6GHz,Thread Radar Level Transmitter |
||

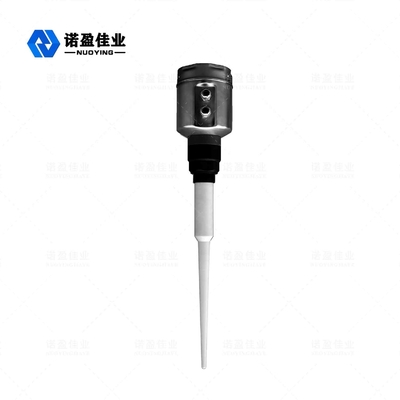

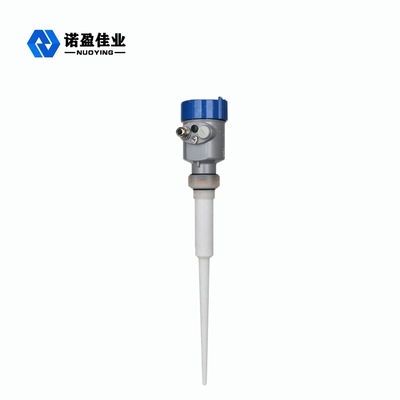

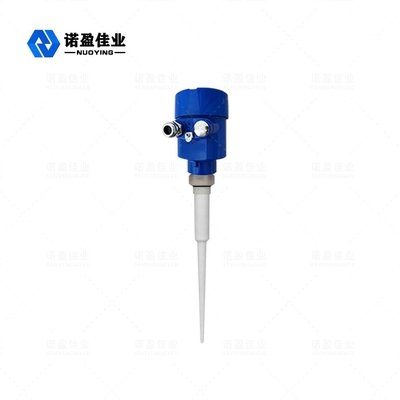

Hot Sale 4-20mA Liquid 6GHz NYRD801 Radar Level Meter
6GHz NYRD801 Radar Level Meter Working Principle
Very short microwave pulses with very low energy are transmitted and received through the antenna system. Radar waves travel at the speed of light.The running time can be converted into level signal through electronic components. A special time extension method can ensure stable and accurate measurement in a very short time. Even if there is false echo under complex working conditions, the echo of material level can be accurately analyzed with the latest microprocessor technology and debugging software.
Input:
The antenna receives the reflected micro pulse and transmits it to the electronic circuit. The microprocessor processes the signal and identifies the echo generated by the micro pulse on the material surface. The correct echo signal recognition is completed by pulse software, and the accuracy can reach millimeter level. The distance D from the material surface is proportional to the pulse time travel T: D=C×T/2(C is the speed of light)
Since the distance E of the empty tank is known, the material level L is: L=E-D.
Output:
It is set by inputting empty tank height E (= zero point), full tank height F (= full scale) and some application parameters. The application parameters will automatically adapt the instrument to the measurement environment, corresponding to 4-20mA output.
6GHz NYRD801 Radar Level Meter Technical Parameters
| Typical application | Liquid with simple process |
| Product model | NYRD801 |
| Antenna material | PTFE |
| Measuring range | 20m |
| Process connection | Thread |
| Process temperature | -40~+130℃ |
| Process pressure | -0.1~0.3MPa |
| Power supply | 24VDC(Two lines, four lines) |
| Accuracy | ＜0.1%F.S |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 |
6GHz NYRD-801 Radar Level Meter Design Feature
1.Advanced microprocessors and unique Echo Discovery echo processing technology for complex applications.
2.The only radar that touches the medium.
3.Measuring liquid with the highest accuracy and most accurate.
4.Adhesive or hanging material,pulse signal can penetrate, does not affect measurement.
5.Easy to install no harm to human body or environment.
6GHz NYRD801 Radar Level Meter Application Field
1.Power plants: coal piles, raw coal silos, fuel silos, reservoirs, exhaust gas cleaning tanks.
2.Oilfield: crude oil storage tanks, refined oil storage tanks, three-phase separators, settling tanks, sewage tanks, oil-water interfaces.
3.Metallurgy: Blast furnace, ore silo, ore crusher, raw material silo, auxiliary material silo.
4.Chemical: crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, solids silo, separator.
5.Pharmaceutical: Chinese medicine storage tank, separator, fermentation tank.
6.Other: mixing tank, cement, paper, water treatment and so on.
