|Products Model:||NYRD705||Transmit Frequency:||1.8GHz|
|Signal Output:||4...20mA/HART/RS485/Modbus...||Process Temperature:||-40~500℃|
|Process Pressure:||-0.1~2.0MPa||Procedure Connection:||Flange (optional)|
|Measuring Range:||15m||Measuring Accuracy:||±1mm|
High Pressure Guided Wave Radar Sensor,
Guided Wave Level Transmitter 1.8GHz,
High Temperature Guided Radar Level Sensor

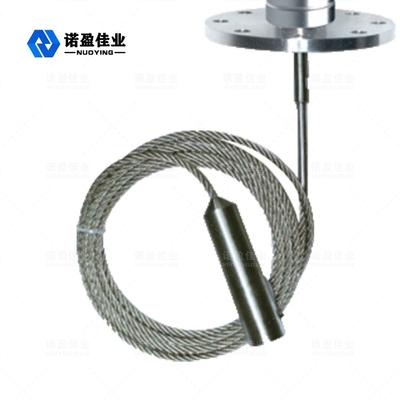

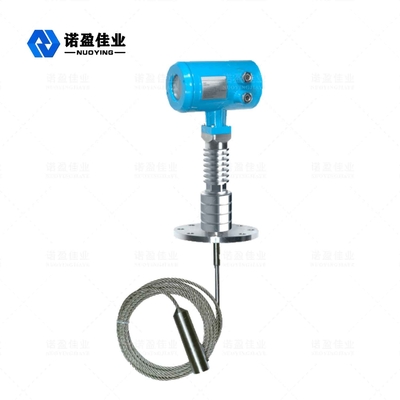

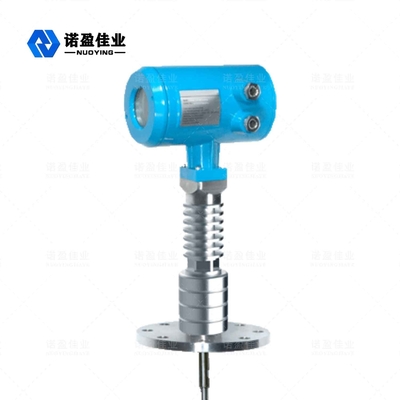

High Temperature High Pressure NYRD705 1.8GHz Guided Wave Radar Level Meter Large Blue Case
NYRD705 1.8GHz Guided Wave Radar Level Meter Working Principle
The guided wave radar emits high-frequency microwave pulse which spread along the detection component (steel cable or steel rod) , and when it encounters the measured medium, due to the sudden change of the dielectric constant which causes reflection, and part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance of the measured medium.
NYRD705 1.8GHz Guided Wave Radar Level Meter Technical Parameter
Liquid measurement at high temperature and high pressure
|Antenna type||Rod type;Cable type (optional)|
|Antenna material||304,316 (optional)|
|Echo sampling||55 times/s|
|Power supply||24VDC,220VAC (optional)|
|Procedure connection||Flange (optional)|
|Explosion proof grade||Exia II CT6 Ga|
Note: Products can be customized according to the specific requirement of users!
NYRD705 1.8GHz Guided Wave Radar Level Meter Design Features
1. Using the pulse working pattern, the product has extremely low emission power, and can be installed in various metal and non-metal containers, without harm to the human body and the environment.
2. A variety of process connection methods and detection components types make 70X series guided wave radar level gauges suitable for various complex working conditions and applications. Such as: high temperature, high pressure and low dielectric constant medium.
3. The guided wave radar level instrument adopts advanced microwave processing technology and unique Echo Discovery processing technology, contact measurement, high measurement accuracy and more accurate measurement. At the same time, the guided wave radar is anti adhesion and is not affected by the external environment such as medium temperature and adhesion.
