Product Details:
|
| Frequency: | 100MHZ-1.8GHZ | Measuring Range: | Cable :0-30m |
|---|---|---|---|
| Repeatability: | ± 3mm | Resolution: | 1mm |
| Sampling: | Echo 55 Samples / S | Response Speed: | 0.2S |
| Output Current Signal: | 4-20mA | Accuracy: | 0.05%~0.1%F.S |
| High Light: | Guided Wave Radar Water Level Sensor,Radar Water Level Gauge,Stainless Steel Radar Tank Level Indicator |
||

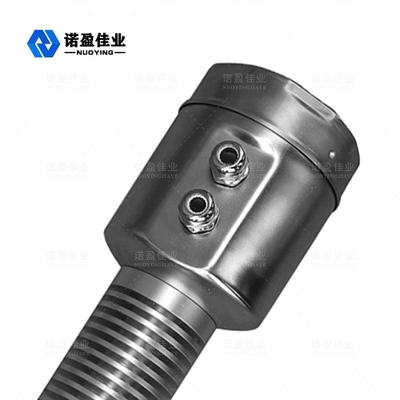

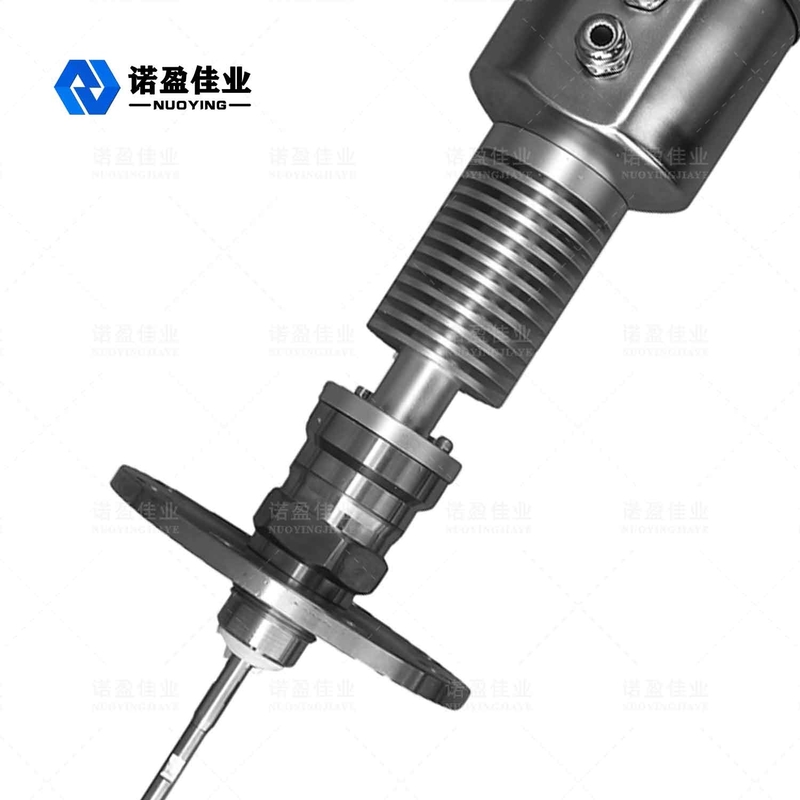

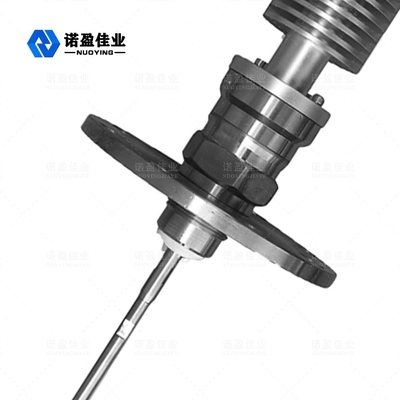

Stainless Steel NYRD705 1.8GHz Guided Wave Radar Level Transmitter Water Level Sensor Radar
Stainless Steel NYRD705 1.8GHz Guided Wave Radar Level Transmitter Working principle
The guided wave radar propagates emit the high-frequency microwave pulse along the detection component (steel cable), and when it encounters the measured medium, it causes reflection,due to the sudden change of the dielectric constant, and part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance of the measured medium.
Stainless Steel NYRD705 1.8GHz Guided Wave Radar Level Transmitter Technical Parameter
| Parameters |
Frequency: 100MHZ-1.8GHZ Measuring range:-cable :0-30m; rod, coaxial :0-6m Repeatability: ± 3mm Resolution: 1mm Sampling: echo 55 samples / s Response speed: 0.2S (depending on the actual usage) Output current signal :4-20mA Accuracy: 0.05%~0.1%F.S |
| Communication Interface | HART communication protocol |
| Process connection |
G1-1/2 Flange DN50, DN80, DN100, DN150 |
| Process pressure | -1 ~ 40bar |
| Power |
Power: 24VDC (± 10%), ripple voltage: 1Vpp Power consumption: max 22.5mA |
| Environmental conditions | Temperature -40 ℃ ~ +80 ℃ |
| Housing protection grade | IP68 |
| Explosion levels | EXiaIICT6 |
| Instrumentation power supply and signal output wire connection |
Sharing a two-core shielded cable Cable entry: 2 M20 × 1.5 (the cables diameter of 5 - 9mm) |
※ Note: Products can be customized according to the specific requirements of users!
