Product Details:
|
| Transmit Frequency: | 26GHz | Accuracy: | 3mm |
|---|---|---|---|
| Range: | 80m | Antenna Material: | 304 ,316L (optional) |
| Echo Sampling: | 100 Times/s | Process Temperature: | -40~130℃ |
| Ambient Humidity: | 0~90% | Signal Output: | 4...20mA/HART/RS485/Modbus... |
| High Light: | Parabolic Antenna Radar Level Meter,Explosion Proof Guided Radar Level Sensor,Radar Level Gauge 26GHz |
||

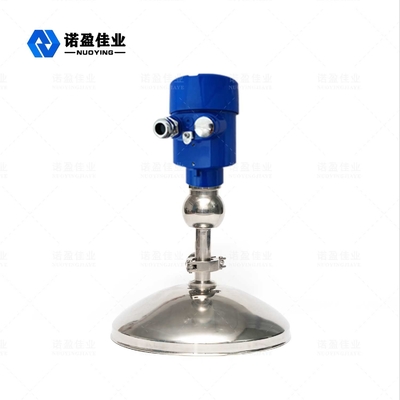

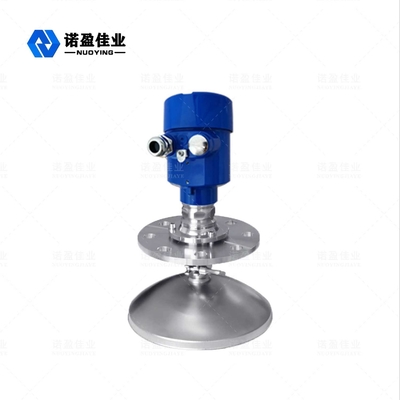

Arcuation NYRD810 Parabolic Antenna Radar Level Gauge 26GHz Explosion Proof
NYRD810 Parabolic Antenna Radar Level Gauge
The NYRD-810 radar level gauge is used for the tank material level of height measurement.The high-frequency radar level gauge's antenna emits narrow microwave pulses. Between the transmitted pulse and the received pulse time interval is proportional to the distance from the antenna to the the measured medium surface.This narrow microwave pulse propagates in space at the speed of light and meets the surface of the measured medium. Parts of its energy is reflected back ,the same antenna received it. Because of the extremely high propagation speed of electromagnetic waves, the time interval is very small and difficult to confirm. The NYRD-810 high-frequency radar level meter uses a special related solution technology ,that can accurately identify the time interval between the transmitted pulse and the received pulse, so as to further calculate the distance from the antenna to the measured medium surface.
NYRD810 Parabolic Antenna Radar Level Gauge Technical Parameter
| Typical application | Solids,liquid, dust, particles, etc |
| Transmit frequency | 26GHz |
| Accuracy | 3mm |
| Range | 50m,80m |
| Antenna material | PFA,304 ,316L (optional) |
| Echo sampling | 100 times/second |
| Process temperature | -40℃~+130℃ |
| Ambient humidity | 0~90% |
| Resolution | 1mm |
| Process connection | Flange or bracket installation |
| Electrical Interface | M20×1. 5, ½ " NPT |
| Signal output | RS485/Modbus... |
| Supply power | 24VDC,220VAC (optional) |
| Power | 3W |
| Explosion-proof grade | ExiaⅡCT6 Ga (optional) |
| Protection class | IP67(optional) |
※ Note: Products can be customized according to the specific requirements of users!
