Product Details:
|
Model: | NYRD-PB-C | Antenna Material: | PTFE+304 |
---|---|---|---|
Range: | 40m | Accuracy: | 0.05%~0.1%F.S |
Process Temperature: | -40℃~+260℃ | Process Pressure: | -0.1~4.0MPa |
Process Connection: | Bracket, Flange (optional) | Electrical Interface: | M20×1. 5, ½ " NPT |
High Light: | Flanged Radar Level Transmitter,Flat Panel Radar Level Sensor,0.05% FS Radar Liquid Level Sensor |

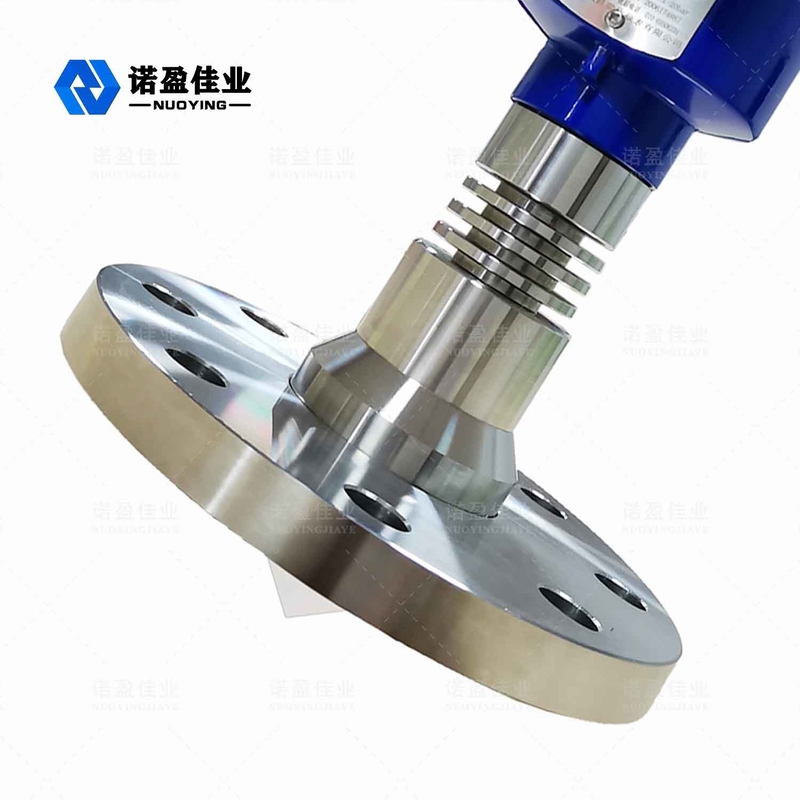

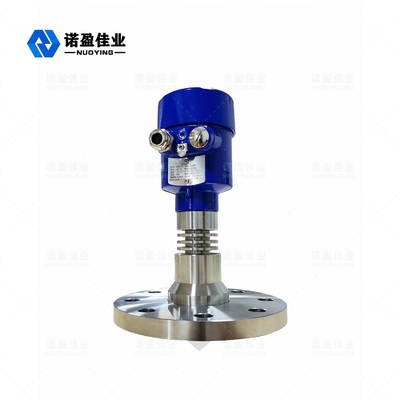

Flat Panel Radar Level Transmitter Flanged 40m NYRD-PB-C IP67 24VDC 0.05% FS
Flanged NYRD-PB-C Flat Panel Radar Level Transmitter Design Features

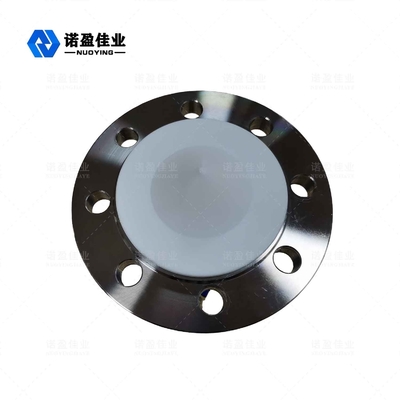

◎ The antenna size is very small, easy to install; non-contact radar, no wear and no pollution.
◎ Unaffected by corrosion, foam, water vapor, temperature and pressure changes.
◎ The energy is concentrated and the beam angle is small, enhances the echo ability and helps to avoid interference.
◎ High signal-to-noise ratio for better performance even under fluctuating conditions.
Flanged NYRD-PB-C Flat Panel Radar Level Transmitter Technical Parameter
Model | NYRD-PB-C | ||||
Typical application | Steam, strong corrosion, crystallization, adhesion, etc. | ||||
Transmit frequency | 26GHz | ||||
Echo sampling | 100 times/s | ||||
Antenna material | PTFE+304 | ||||
Range | 40m | ||||
Accuracy | 0.05%~0.1%F.S | ||||
Supply power | 220V AC | ||||
Power | 3W | ||||
Signal output | RS485/Modbus... | ||||
Process temperature | -40℃~+260℃ | ||||
Process pressure | -0.1~4.0MPa | ||||
Process connection | Bracket, flange (optional) | ||||
Electrical Interface | M20×1. 5, ½ " NPT | ||||
Protection class | IP 67 | ||||
Explosion-proof grade | ExiaⅡCT6 Ga |
※ Note: Products can be customized according to the specific requirements of users!
