Product Details:
|
| Model: | NYRD-PB-C | Transmit Frequency: | 26GHz |
|---|---|---|---|
| Echo Sampling: | 100 Times/s | Antenna Material: | PTFE+304 |
| Accuracy: | 0.05%～0.1%F.S | Supply Power: | 24VDC(Two-wire,Four-wire) |
| Process Temperature: | -40～+260℃ | Process Pressure: | -0.1～2.0MPa |
| High Light: | Flanged Radar Liquid Level Sensor,40m Radar Liquid Level Transmitter,Radar Liquid Level Gauge IP67 |
||
IP67 NYRD-PB-C Flanged 40m Radar Liquid Level Sensor 24VDC 40BAR 0.05% FS

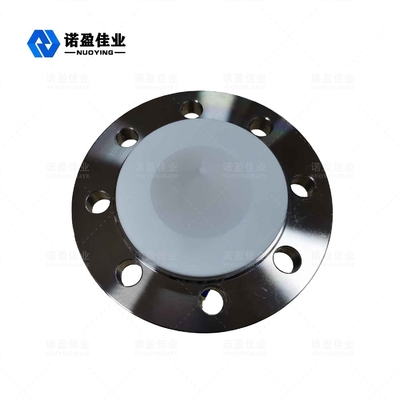

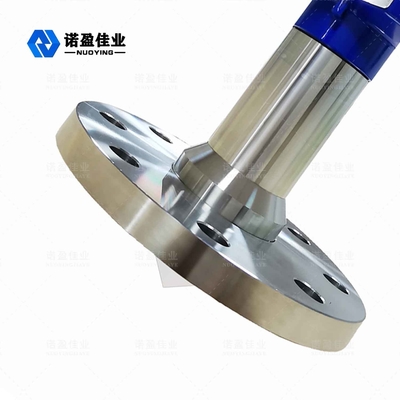

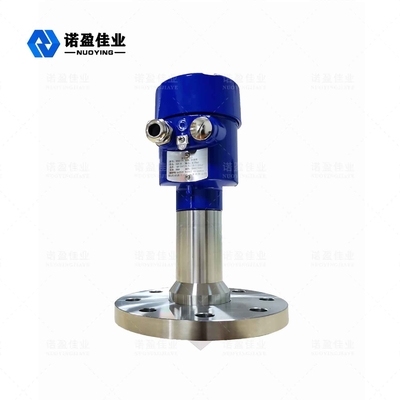

NYRD-PB-C Flanged 40m Radar Liquid Level Sensor
The NYRD-PB-C flat-panel radar level meter is a 26GHz high-frequency radar level measuring instrument, the maximum measurement distance is 40 meters.The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. The antenna is further optimized, higher-speed signal analysis and processing performed by the new fast microprocessor, so that the instrument can be used in some complex occasions such as steam, foam, dust, crystallization, condensation, etc..
NYRD-PB-C Flanged 40m Radar Liquid Level Sensor Technical Parameter
| Model | NYRD-PB-C | ||||
| Typical application | Steam, mist, foam,etc. | ||||
| Transmit frequency | 26GHz | ||||
| Echo sampling | 100 times/s | ||||
| Antenna material | PTFE+304 | ||||
| Range | 40m | ||||
| Accuracy | 0.05%～0.1%F.S | ||||
| Supply power | 24VDC(Two-wire,Four-wire) | ||||
| Power | 3W | ||||
| Signal output | 4...20mA | ||||
| Process temperature | -40～+260℃ | ||||
| Process pressure | -0.1～2.0MPa | ||||
| Process connection | Bracket, flange (optional) | ||||
| Electrical Interface | M20×1. 5, ½ " NPT | ||||
| Protection class | IP 68 | ||||
| Explosion-proof grade | ExdⅡCT6 Gb | ||||
※ Note: Products can be customized according to the specific requirements of users!
