Product Details:
|
| Model: | NYRD-PB-E | Transmit Frequency: | 26GHz |
|---|---|---|---|
| Antenna Material: | PFA | Range: | 40m |
| Accuracy: | 0.05%～0.1%F.S | Process Temperature: | -40～+130℃ |
| Process Pressure: | -0.1～2.0MPa | Protection Class: | IP 67 |
| High Light: | Corrosion Radar Level Transducer,PFA PTFE Radar Level Transducer,Modbus Flat Radar Level Transmitter |
||

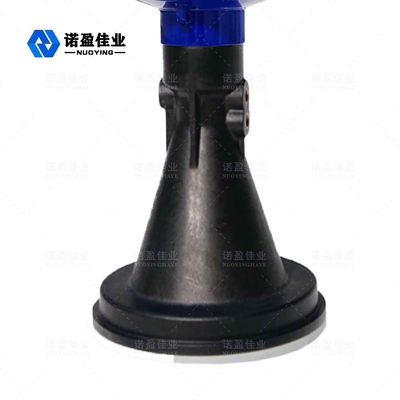

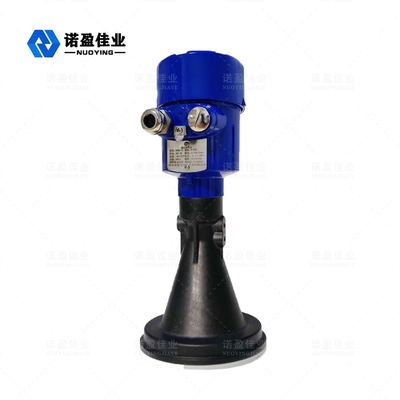

Corrosion NYRD-PB-E Modbus Flat Radar Level Transducer PFA PTFE
NYRD-PB-E Modbus Flat Radar Level Transducer Typical Applications
1. Various liquids (strong corrosion, low dielectric constant, stirring, steam, crystallization, condensation, slurry, high temperature and high pressure, etc.)
2. All kinds of dust (strong dust, floating dust, cement powder, lime powder, fly ash, crystallization, etc.)
3. Various solids (grain, pebbles, iron ore, coal, etc.)
NYRD-PB-E Modbus Flat Radar Level Transducer Technical Parameter
| Model | NYRD-PB-E | ||||
| Typical application | Steam, mist, strong corrosion, crystallization, condensation, adhesion, etc. | ||||
| Transmit frequency | 26GHz | ||||
| Echo sampling | 100 times/s | ||||
| Antenna material | PFA | ||||
| Range | 40m | ||||
| Accuracy | 0.05%～0.1%F.S | ||||
| Supply power | 24VDC(Two-wire,Four-wire), 220V AC (optional) | ||||
| Power | 3W | ||||
| Signal output | 4...20mA/HART/RS485/Modbus... | ||||
| Process temperature | -40～+130℃ | ||||
| Process pressure | -0.1～2.0MPa | ||||
| Process connection | Bracket, flange (optional) | ||||
| Electrical Interface | M20×1. 5, ½ " NPT | ||||
| Protection class | IP 67 | ||||
| Explosion-proof grade | ExiaⅡCT6 Ga, ExdⅡCT6 Gb (optional) | ||||
※ Note: Products can be customized according to the specific requirements of users!
