Product Details:
|
| Material: | PFA,PTFE (optional) | Process Temperature: | -40℃-130℃ |
|---|---|---|---|
| Process Presure: | -0.1~2MPa | Repeatability: | ± 3mm |
| Accuracy: | < 0.1%F.S | Frequency Rate Limits: | 6.8GHz |
| Explosion-proof: | EXiaIICT6 Ga | Power Supply: | 24VDC |
| High Light: | Microwave Pulse Measurement Radar Level Sensor,PTFE Radar Tank Level Sensor 20MA,Tank Radar Water Level Sensor |
||

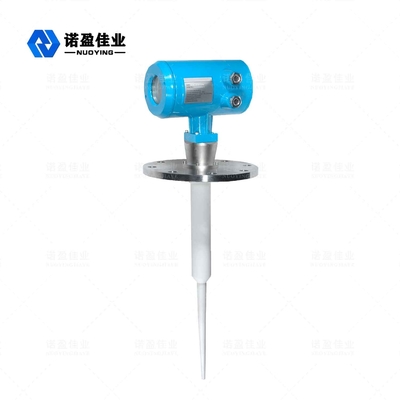

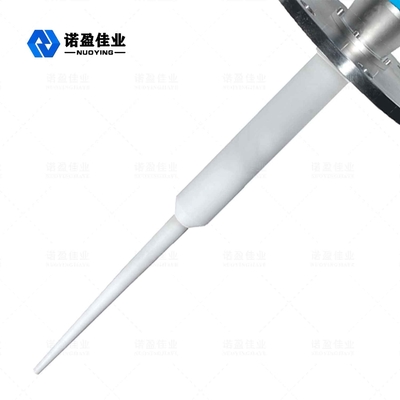

PTFE NYRD801 Radar Tank Level Sensor 4-20Ma 6.8GHz Microwave Pulse Measurement
PTFE NYRD801 Radar Tank Level Sensor Operating Principle
PTFE NYRD801 radar level meter is suitable for non-contact continuous measurement like liquid, slurry and granular material level, suitable for temperature, pressure change; Where inert gases and volatiles are present.
The microwave pulse of the measurement method is adopted, and it can work normally in the range of industrial frequency band. Low beam energy, can be installed in a variety of metal, non-metal containers or pipes, no harm to human body and the environment.
PTFE NYRD801 Radar Tank Level Sensor Technical Parameter
| Application |
Liquid water storage tank; Soda acid storage tank; Slurry tank; Solid particles; Small tanks |
| Measuring range | 20m |
| Material | PFA,PTFE (optional) |
| Fitting process | Screw thread, Flange(optional), |
| Process temperature | -40℃-130℃ |
| Process presure | -0.1~2MPa |
| Repeatability | ± 3mm |
| Accuracy | < 0.1%F.S |
| Frequency rate limits | 6.8GHz |
| Explosion-proof | EXiaIICT6 Ga |
| Protection grade | IP67 |
| Signal output | 4-20mA/HART(Two wire/FOUR wire) |
| Power supply | 24VDC |
※ Note: Products can be customized according to the specific requirements of users!
