NYRD803 High Temperature Intelligent Radar Level Transmitter 6.8GHz Explosion Proof

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

NYRD803 High Temperature Intelligent Radar Level Transmitter 6.8GHz Explosion Proof

NYRD803 High Temperature Intelligent Radar Level Transmitter 6.8GHz Explosion Proof
NYRD803 High Temperature Intelligent Radar Level Transmitter 6.8GHz Explosion Proof NYRD803 High Temperature Intelligent Radar Level Transmitter 6.8GHz Explosion Proof

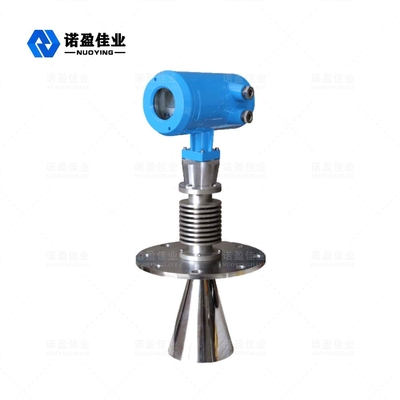

Large Image :  NYRD803 High Temperature Intelligent Radar Level Transmitter 6.8GHz Explosion Proof

Product Details:
Place of Origin: Xi'an,Shannxi,China
Brand Name: NUOYINGJIAYE
Certification: CE,ATEX,SIL
Model Number: NYRD803(High Temperature Type)
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $750~$950/pcs
Packaging Details: Carton, 90cm x 30cm x 30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 500 pcs/per month

NYRD803 High Temperature Intelligent Radar Level Transmitter 6.8GHz Explosion Proof

Description
Measuring Range: 35m Material: 304,316 (optional)
Fitting Process: Flange(optional) Process Temperature: -40℃-250℃
Process Presure: -1~40bar Repeatability: ± 3mm
Accuracy: 0.05%~ 0.1%F.S Explosion-proof: Exd II CT6 Gb(optional)
High Light:

Radar Water Level Sensor High Temperature

,

Explosion Proof GWR Level Transmitter

,

Intelligent Radar Level Sensor 6.8GHz

NYRD803 High Temperature Type Intelligent Radar Transmitter 6.8GHz Explosion Proof





NYRD803 High Temperature Type Intelligent Radar Transmitter



NYRD803 Radar level meter antenna to join structure of radiator, radiator is a kind of to electrical appliances used hot electron component cooling device, made more than 304/316 of material such as stainless steel sheet structure. The heat sink can make the heat from the components more effective conduction, so that the product can be applied to higher temperature occasions.The measurement method of microwave pulse is adopted, and it can work normally in the range of industrial frequency band.



NYRD803 High Temperature Type Intelligent Radar Transmitter Technical Parameter



Application

Process conditions simple, Liquid, slurry, solid

Measuring range 35m
Material 304,316 (optional)
Fitting process Flange(optional)
Process temperature -40-250℃
Process presure -1~40bar
Repeatability ± 3mm
Accuracy 0.05%~ 0.1%F.S
Frequency rate limits 6.8GHz
Explosion-proof Exd II CT6 Gb(optional)
Protection grade IP67,IP68 (optional)
Signal output 4-20mA, 4-20mA/HART(Two wire/FOUR wire)
Power supply 220VAC



Note: Products can be customized according to the specific requirements of users!
