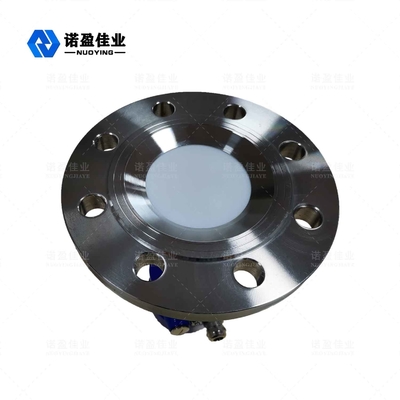

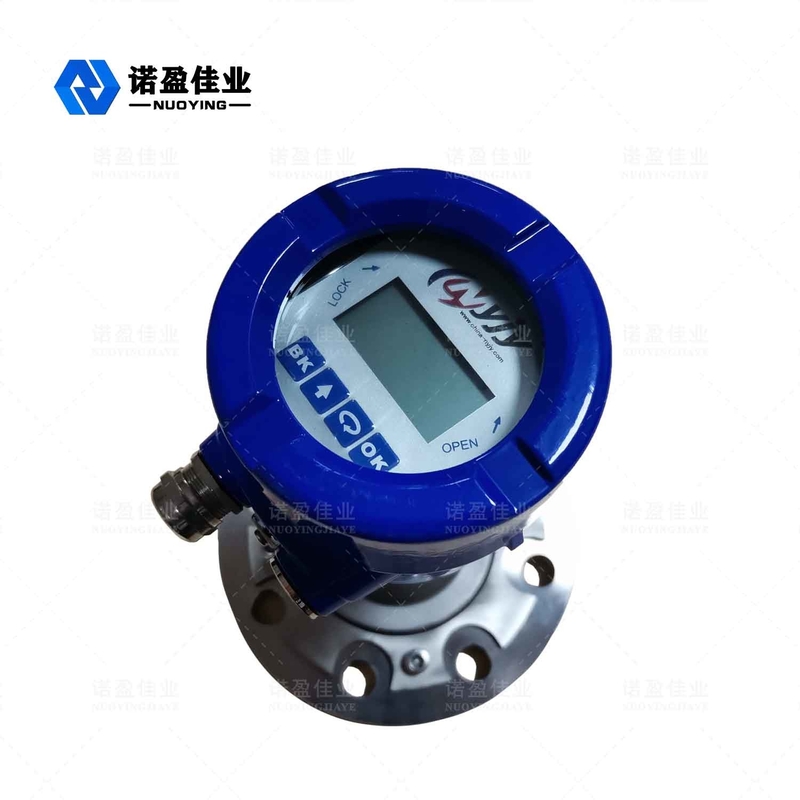

NYRD - PB - D Non Contact Radar Level Transmitter High Signal Noise Ratio

NYRD - PB - D Non Contact Radar Level Transmitter High Signal Noise Ratio

Brand Name: NUOYINGJIAYE
Model Number: NYRD-PB-D
MOQ: 1pcs
Price: $950~$1250/pcs
Payment Terms: T/T
Supply Ability: 500 pcs/per month
Detail Information
Place of Origin:
Xi'an,Shannxi,China
Certification:
CE,ATEX,SIL
Model:
NYRD-PB-D
Transmit Frequency:
26GHz
Echo Sampling:
100 Times/s
Antenna Material:
PTFE+304 (optional)
Supply Power:
24VDC(Two-wire,Four-wire)
Signal Output:
RS485/Modbus...(optional)
Process Temperature:
-40~+130℃
Process Pressure:
-0.1~2.0MPa
Packaging Details:
Carton, 40cm x 30cm x 30cm
Supply Ability:
500 pcs/per month
Highlight:

Non Contact Type Radar Level Transmitter

,

26GHz Non Contact Radar Level Sensor

,

High Signal Noise Ratio Radar Transmitter

Product Description

NYRD-PB-D High-Frequency Radar Level Transmitter High Signal-To-Noise Ratio Non Contact





NYRD-PB-D High-Frequency Radar Level Transmitter



The flat-panel radar level meter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 40 meters. Unaffected by corrosion, foam, water vapor, temperature and pressure changes.The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used in some complex occasions such as steam, foam, dust, crystallization, condensation, etc..The antenna is small in size, easy to install; non-contact radar, no wear and no pollution.High signal-to-noise ratio for better performance even under fluctuating conditions.



NYRD-PB-D High-Frequency Radar Level Transmitter Technical Parameter



Model NYRD-PB-D
Typical application Steam, mist, foam, strong corrosion, crystallization, condensation, adhesion, etc.
Transmit frequency 26GHz
Echo sampling 100 times/s
Antenna material PTFE+304 (optional)
Range 40m
Accuracy 0.05%~0.1%F.S
Supply power 24VDC(Two-wire,Four-wire) (optional)
Power 3W
Signal output RS485/Modbus...(optional)
Process temperature -40~+130℃
Process pressure -0.1~2.0MPa
Process connection Bracket, flange (optional)
Electrical Interface M20×1. 5, ½ " NPT
Protection class IP 67, IP 68
Explosion-proof grade ExiaⅡCT6 Ga, ExdⅡCT6 Gb (optional)



Note: Products can be customized according to the specific requirements of users!
