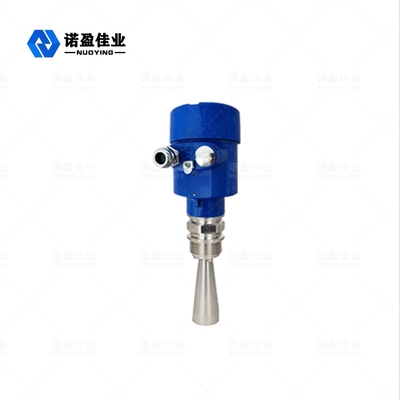

NYRD806 High Frequency Radar Level Gauge Slightly Corrosive Liquid Explosion Proof

NYRD806 High Frequency Radar Level Gauge Slightly Corrosive Liquid Explosion Proof

Brand Name: NUOYINGJIAYE
Model Number: NYRD806
MOQ: 1pcs
Price: $740~$1050/pcs
Payment Terms: T/T
Supply Ability: 500 pcs/per month
Detail Information
Place of Origin:
Xi'an,Shannxi,China
Certification:
CE,ATEX,SIL
Model:
NYRD806
Application:
Slightly Corrosive Liquid
Measurement Range:
30m
Antenna Material:
316L (optional)
Accuracy:
±3mm
Medium Temperature:
-40℃~250℃
Process Pressure:
-0.1 〜4.0MPa
Power Supply:
24VDC (two Lines, Four Lines)
Packaging Details:
Carton, 30cm x 25cm x 20cm
Supply Ability:
500 pcs/per month
Highlight:

Radar Level Gauge Explosion Proof

,

Corrosive Liquid Radar Level Gauge

,

Liquid Radar Tank Level Gauge

Product Description

Explosion Proof NYRD806 High Frequency Radar Level Gauge Slightly Corrosive Liquid





NYRD806 High Frequency Radar Level Gauge



The radar level meter NYR D80X series sensor is a 26Hz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters.Almost free from corrosion and fbam; The severe dust environment has little effect on the work of high frequency level gauges. ◎The shorter wavelengths provide better reflection fbr sloping solid surfaces.almost unaffected by changes in water vapor, temperature and pressure in the atmosphere. The antenna is further optimized, and the new fast microprocessor can perform higher rate signal analysis processing so that the instrument can be used fbr some complex measurement conditions such as reaction kettle, solid storage.The antenna is small in size and easy to install; non-contact radar, no wear and no pollution.



NYRD806 High Frequency Radar Level Gauge Technical Parameters​



Model NYRD806
Application slightly corrosive liquid
Measurement range 30m
Antenna material 316L (optional)
Accuracy ±3mm
Medium temperature -40℃~250℃
Process pressure -0.1 〜4.0MPa
Power supply 24VDC (two lines, four lines) (optional)
Process connection Support, Flange (optional)
Protection grade IP67 (optional)
Frequency range 26GHz
Explosion-proof grade Exia II C T6 Ga/ Exd ia IIC T6 Gb (optional)
Signal output 4... 20mA/HART (two / four) RS485/Modbus... (optional)
