Product Details:
|
Antenna Material: | 304(optional) | Measuring Range: | 35m |
---|---|---|---|
Power Supply: | 24VDC(Two Lines, Four Lines) | Measuring Accuracy: | 0.05%-0.1%F.S |
Medium Temperature: | -40~+130℃ | Process Pressure: | -0.1~4.0MPa |
Typical Application: | Solid Dust Particles | Electrical Interface: | M20×1.5, 1/2 "NPT |
High Light: | Non Contact Radar Level Transmitter 20mA,IP67 Radar Level Sensor,Solid Dust Radar Type Level Transmitter |

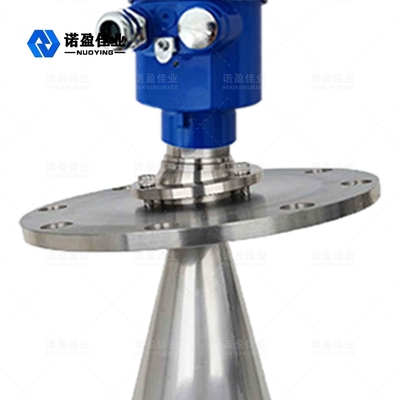

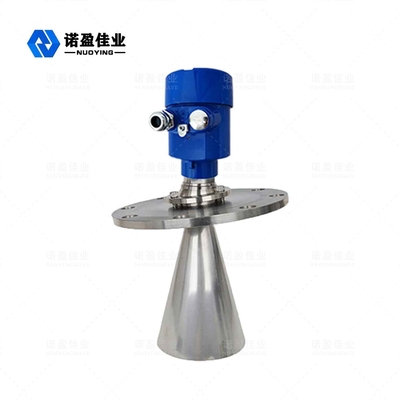

Hot Sale Non-Contact 20mA IP67 NYRD804 6G Radar Level Transmitter
NYRD804 6G Radar Level Transmitter Working Principle
Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).
NYRD804 6G Radar Level Transmitter FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
NYRD804 6G Radar Level Transmitter Technical Parameters
Typical application | solid dust particles |
Antenna material | 304(optional) |
Measuring range | 35m |
Power supply | 24VDC(Two lines, four lines) |
Medium temperature | -40~+130℃ |
Process pressure | -0.1~4.0MPa |
Process connection | Universal flange (optional) |
Measuring accuracy | 0.05%-0.1%F.S |
Protection level | IP67 |
Explosion-proof grade | Exia II CT6 |
Signal output | 4...20mA/HART/RS485/Modbus... |
Note: Products can be customized according to the specific requirements of users.
