Product Details:
|
| Typical Application: | Liquid,dust,solid | Product Model: | NYRD86 |
|---|---|---|---|
| Antenna Form: | Bar Type | Antenna Material: | 304(optional) |
| Measuring Range: | 10m, 20m(optional) | Measurement Accuracy: | 0.05%~0.1% F.S |
| Process Temperature: | - 40 ~ + 130 ℃(optional) | Process Pressure: | - 0.1 ~ 0. 3MPa(optional) |
| High Light: | Corrosive Liquid Radar Level Meter,20m Radar Liquid Level Sensor,26ghz Radar Tank Level Sensor |
||

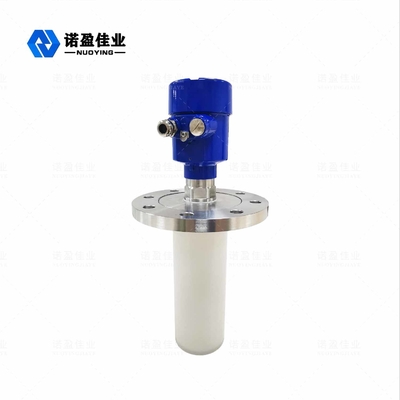

Highly Corrosive Liquid 26ghz High Frequency Radar Level Meter
26ghz High Frequency Radar Discription
The radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument.The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions such as reaction gold and solid silos.
26ghz High Frequency Radar WorKing Principle
The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal (because the pulse propagation speed is extremely fast, the electromagnetic wave reaches the target and is reflected back to the receiver. The time it takes to go back and forth is almost instantaneous)
