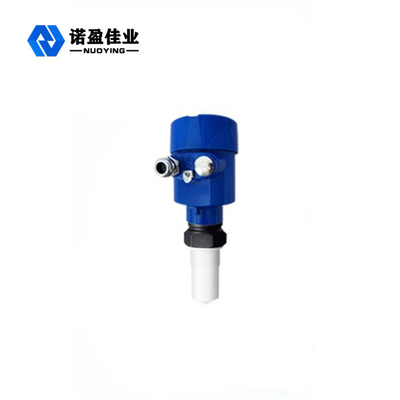

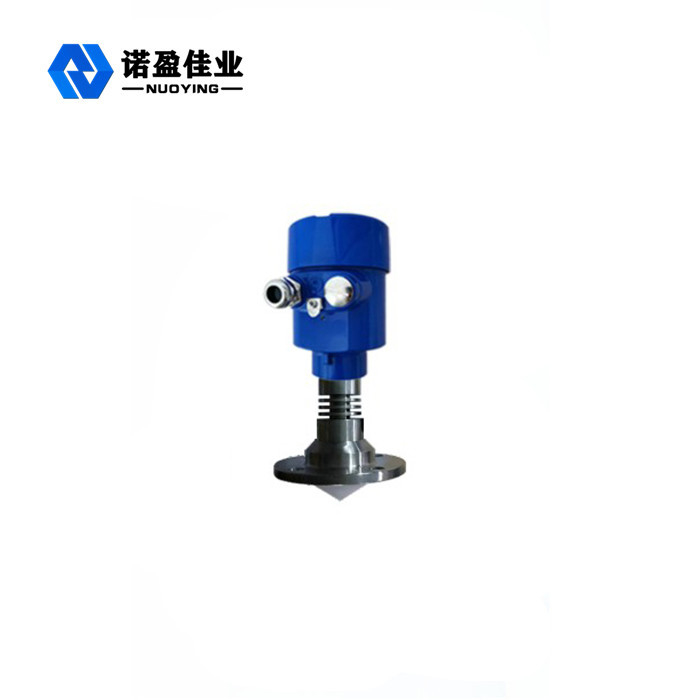

Small Beam Angel 26 G Intelligent Radar Level Transmitter NYRD805 Non Contact

Description
The Process Temperature: -40~+130"C The Process Pressure: -0. 1~0. 3MPa
The Process Connection: Thread, Bracket, Flange, Sanitary Clamp (optional) Protection Grade /IP Grade: M20X1.5, % ~NPT
Hazardously Explosive-proof Grade: ExialICT6 Ga, Exd IICT6 Gb(see Certificate For Details) Antenna Material: PTFE、304、 316、 PP、 PFA
Measurement Accuracy: 10m Typical Application: All Kinds Of Corrosive Liquid
High Light:

Gas Radar Level Switch 26G

,

Thread Radar Level Instrument Noncontact

,

Gas Guided Wave Radar Transmitter

Small Beam Angel 26 G Intelligent Radar Level Transmitter NYRD805 Non Contact





working principle of Small Beam Angel 26 G Intelligent Radar Level Transmitter NYRD805 Non Contact



The radar level antenna emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again, and the signal is transmitted to the electronic circuit part and automatically converted into a level signal (because the pulse propagation speed is extremely fast, the electromagnetic wave reaches the target and is reflected back to the receiver. The time it takes to go back and forth is almost instantaneous)



Small Beam Angel 26 G Intelligent Radar Level Transmitter NYRD805 Non Contact 0



Datum of measurement: sealing surface of thread bottom or flange.
Note: When using radar level timing, make sure that the highest material level cannot enter the measurement blind area (the area shown in D in the figure).



Designing Features of Small Beam Angel 26 G Intelligent Radar Level Transmitter NYRD805 Non Contact



◎The antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
◎ almost immune to corrosion and foam; Not affected by medium density, temperature and pressure changes.
◎ Serious dust environment has little influence on the work of high frequency level meter.
◎ Shorter wavelength, better reflection on inclined solid surfaces.
◎ The beam Angle is small, the energy is concentrated, which enhances the echo ability and is conducive to avoid interference objects.
◎ Measuring blind area is smaller, for small tank measurement will also achieve good results.
◎ High signal-to-noise ratio, even in the case of fluctuations can also obtain better performance.
case of fluctuations can also obtain better performance.
◎ High frequency, is the best choice for measuring solid and low dielectric constant medium.High frequency, is the best choice for measuring solid and low dielectric constant medium.



Technical Parameters of Small Beam Angel 26 G Intelligent Radar Level Transmitter NYRD805 Non Contact



Typical application Various liquids (strong corrosion.)



product model



NYRD805


Antenna form

Stick, water drop, flat, trumpet,thrown surface, lens

Antenna material PTFE
measuring range 10m
accuracy of measurement 0.05%~0.1%F.S
Power Supply Voltage 24VDC(two wire,four wire),220VAC

signal output

4...20mA/HART/RS485/Modbus...
Process temperature -40~+130℃
Process pressure

-0.1~0.3MPa

procedure linkage screw thread,flange(optional)
Electrical interface M20*1.5,½ ″NPT
levels of protection IP67(optional)
explosion-proof classification Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details)



※Note:The product can be customized according to the specific requirements of users.
