Product Details:
|
| Typical Application: | Liquid Without Stirring | The Antenna Material And Form: | 304 |
|---|---|---|---|
| Echo Sampling: | 55 Times /s | Signal Output 4…20mA/HART/RS485/ Modbus.: | 4…20mA/HART/RS485/ Modbus. |
| The Process Temperature: | - 40 ~ + 130 ° C | Electrical Interface: | M20×1.5 |
| Protection Class I: | IP67（optional) | Process Connection: | Thread |
| Explosion-proof Grade: | Exia II CT6 | ||
| High Light: | Stainless Steel Radar Type Level Transmitter,Industrial Radar Level Transmitter,6G Solid Radar Level Transmitter |
||

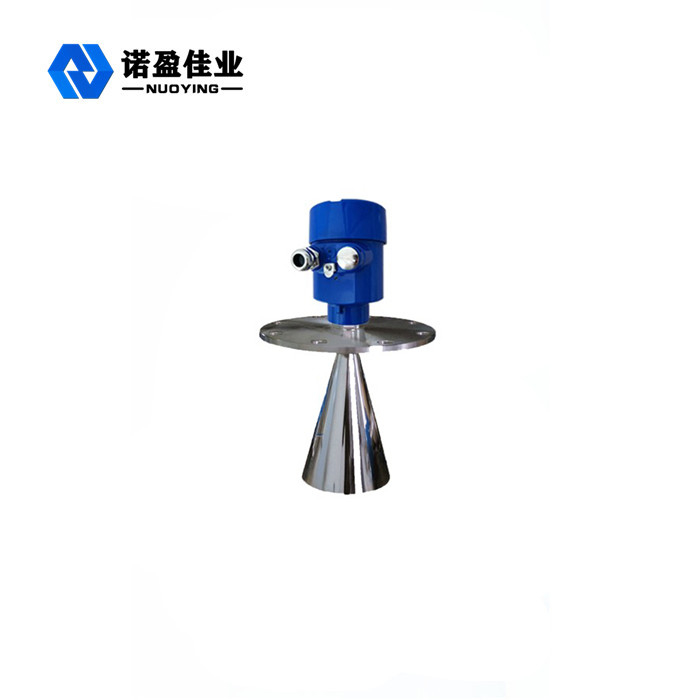

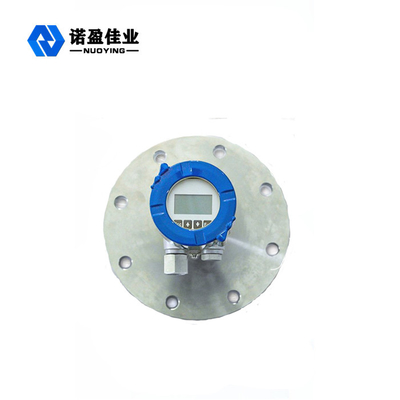

Stainless Steel Intelligent Radar Level Transmitter 6G For Liquid Without Stirring
Working Principle of Stainless Steel Intelligent Radar Level Transmitter 6G For Liquid Without Stirring
To transmit and receive microwave pulses at very low energy poles by means of an antenna system. At the speed of light, the RADarman can pass the signal through the device and convert it into a level signal. A special time-extension method ensures stable and accurate measurements in a very short time
Even if there is false echo in the case of complex working conditions, the echo of the object level can be accurately analyzed with the latest microprocessing technology and modulating software
Design features of Stainless Steel Intelligent Radar Level Transmitter 6G For Liquid Without Stirring
◎ Intelligent radar level meter adopts advanced microwave processing technology and unique Echo Discovery Echo processing technology, the product can be applied to all kinds of complex working conditions.
◎ The function of "false echo learning" makes the instrument can accurately identify the real echo under the condition of multiple false echoes, so as to obtain accurate measurement results.
◎ Various process connection modes and detection components can be customized according to customer needs
◎ The pulse working mode, the product transmission power is very low, can be installed in all kinds of metal, non-metal containers, no harm to human body and environment
Technical Parameters of Stainless Steel Intelligent Radar Level Transmitter 6G For Liquid Without Stirring
| Typical application | liquid without stirring |
|
product model |
NYRD803 |

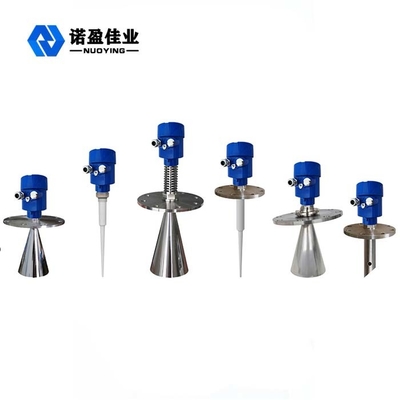

| Antenna form | Stick,trumpet,Guide wave tube type |
| Antenna material | 304 |
| The echo sampling | 55 Times / s |
| measuring range | 35m |
| Measurement precision | 0.05%~0.1%F.S |
| Power Supply | 24VDC(two lines,four lines) |
| signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+130℃ |
| Process pressure | -0.1~4.0 MPa, |
| Process Connection | flange(optional) |
| Electrical interface | M20*1.5,½ ″NPT |
| Protection Level | IP67 |
|
Explosion-proof Grade |
Exia II CT6 |
※Note:The product can be customized according to the specific requirements of users.
