Product Details:
|
Typical Application: | Solid Dust Particles | Antenna Form: | Horn Type, |
---|---|---|---|
Power Supplies: | 220VAC | Measuring Range: | 35M |
Process Connection: | All Of The Flange | Antenna Material: | 304、 316 |
Process Pressure: | -0.1 ~0.3MPa, -0.1 ~2.0MPa, -0.1 ~4.0MPa | Signal Output: | 4...20mA/HART/RS485/Modbus. . |
Accuracy Of Measurement: | <0.25% (range <20 M), <0.5% (range >20 M) | Echo Sampling: | 55 Times /s |
High Light: | Stainless Steel Smart Radar Level Switch,6G Radar Level Meter,Smart Flange Radar Level Transmitter |

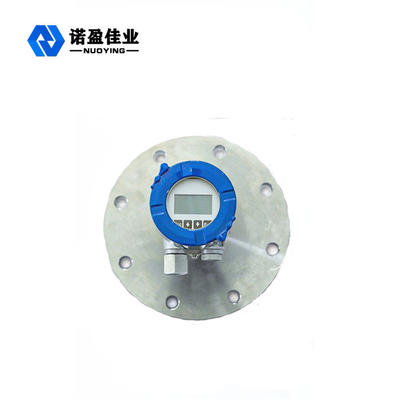

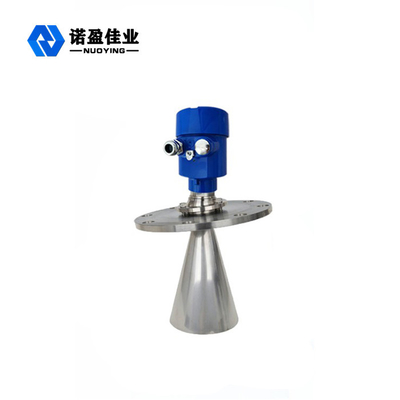

Flange Stainless Steel Smart Radar Level Transmitter 6G NYRD 804
The working Principle of Flange Stainless Steel Smart Radar Level Transmitter 6G NYRD 804
To transmit and receive microwave pulses at very low energy polesin normal pressure and temperature stage. by means of an antenna system and the all of the flange connection method. At the speed of light, the RADarman can pass the signal through the device and convert it into a level signal. A special time-extension method ensures stablein normal pressure and temperature stage. and accurate measurements in a very short time
Even if there is false echo in the case of complex working conditions, the echo in normal pressure and temperature stage. of the object level can be accurately analyzed with the latest microprocessing technology and modulating softwarein normal pressure and temperature stage.
Design Features of Flange Stainless Steel Smart Radar Level Transmitter 6G NYRD 804
◎ The all of the flange Smart radar level meter adopts advanced microwave processing technology and unique Echo Discovery Echo processing technology, the product can be applied to all kinds of complex in normal pressure and temperature stage.working site conditions in NPT(normal pressure and temperature).
◎ The function of multi-dimensional "false echo learning" makes the all of the flange instrument can accurately identify the real echo under the condition of multiple false echoes, so as to obtain accurate measurement results in NPT(normal pressure and temperature.
◎ Various process connection modes and in normal pressure and temperature stage.detection and PTFE Material components can be customized according to customer needs
Technical Parameters of Flange Stainless Steel Smart Radar Level Transmitter 6G NYRD 804
※Note:The product can be customized according to the specific requirements of users.
