Product Details:
|
| Echo Sampling: | 55 Times /s | Measuring Range: | 5m |
|---|---|---|---|
| Measurement Accuracy: | 0.05% ~ 0.1% F.S | Power Supply: | Power Supply 220VAC |
| Electrical Interface: | M20×1.5 , ½ " NPT | Protection Grade: | IP 67 |
| Antenna Form: | Rod Type | Typical Application: | High Pressure, Built-in Heating Coil |
| High Light: | Wise Guided Wave Level Transmitter 6m,High Pressure Gwr Type Level Transmitter,Anti Corrosion Radar Level Transmitter |
||

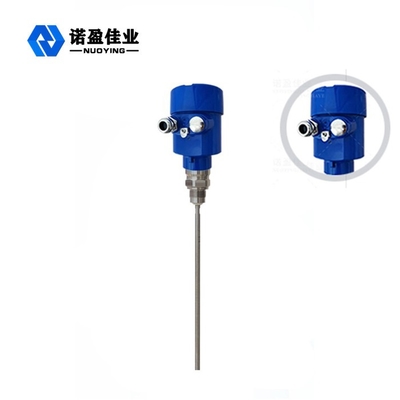

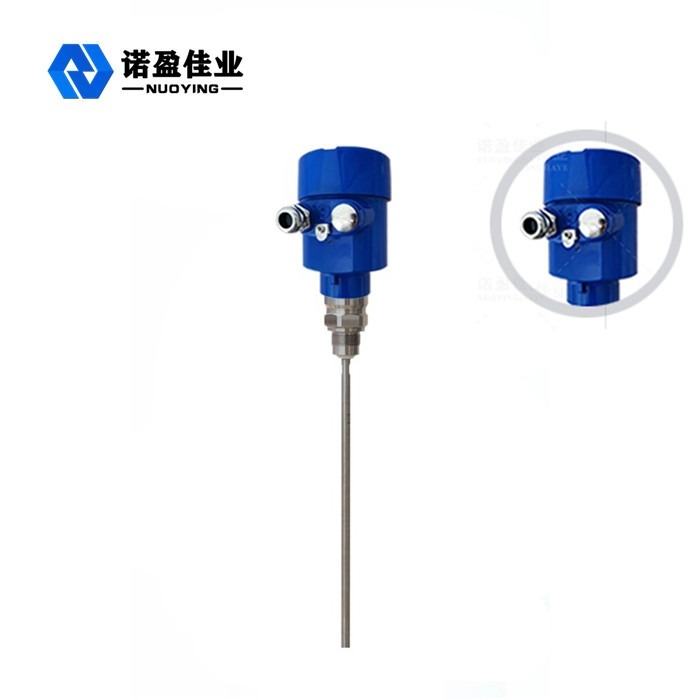

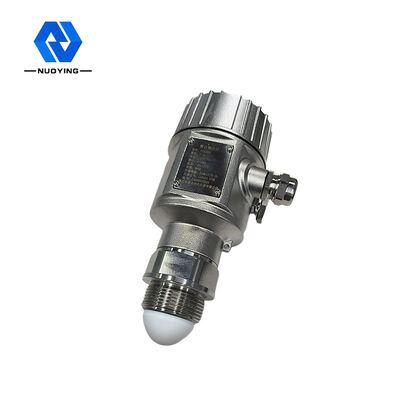

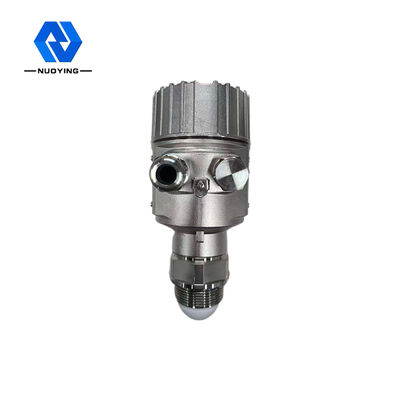

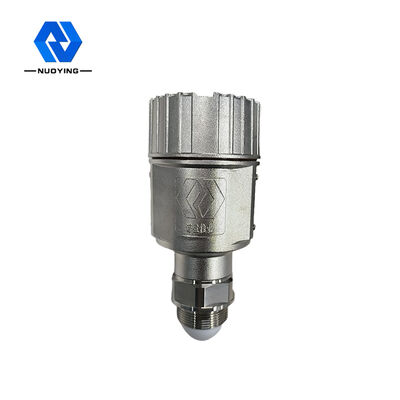

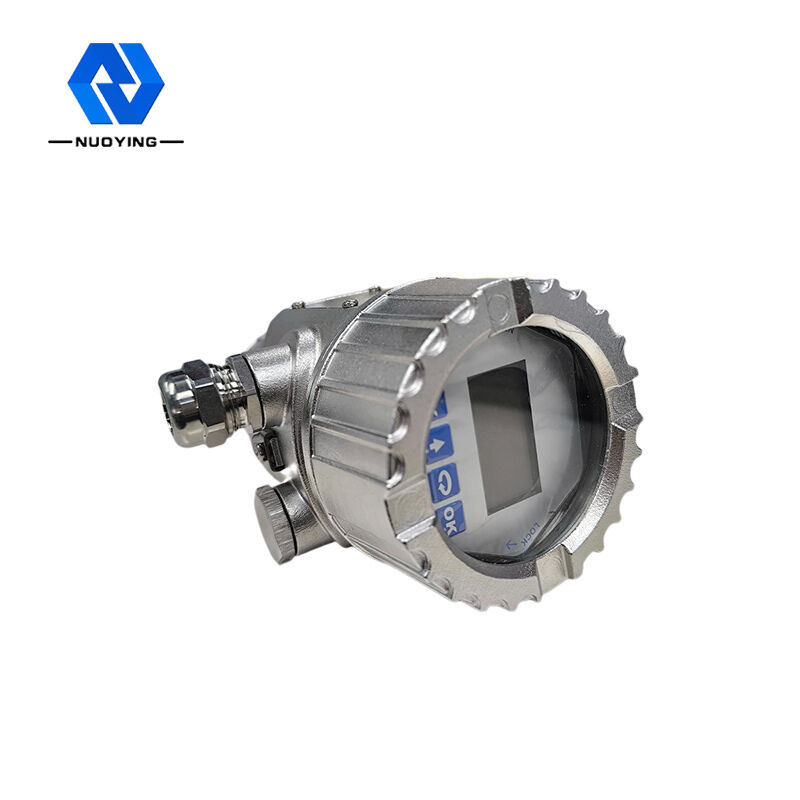

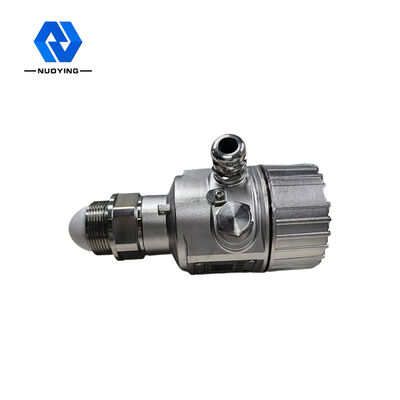

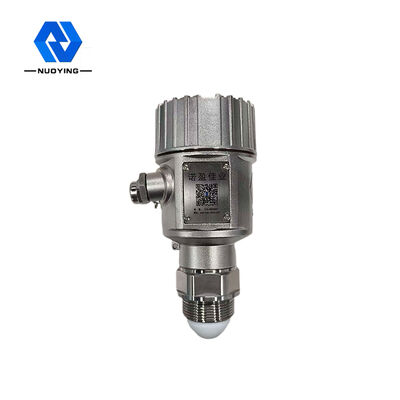

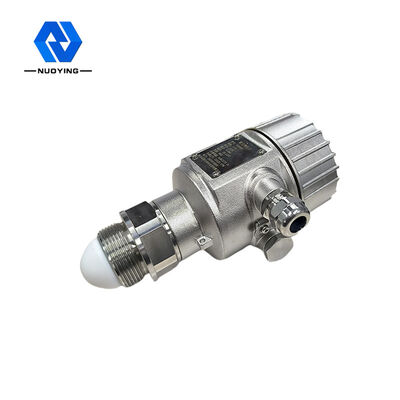

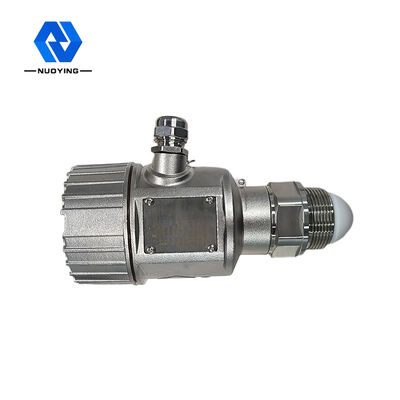

5m Unique Echo Discovery Guided Wave Radar Level Transmitter High Pressure NYRD 702
Working principle of 5m Unique Echo Discovery Guided Wave Radar Level Transmitter High Pressure NYRD 702
The anti-corrosive and microwave pulse emitted by the guided wave radar propagates along the detection component (steel cable or steel rod), and encounters the tested media. Due to the sudden change of the dielectric constant, it causes reflection, and a part of the pulse energy is reflected back. The time interval between the transmitted pulse and the reflected pulse is proportional to the distance of the measured medium.
Input processing
Guided wave radar equipment is a measuring instrument focus on the principle of time travel. The radar equipment wave runs at the speed of light, and the running time can be converted into purpose level signal by electronic components. The probe emits highly-frequency pulse & liquild and propagates along the cable or rod probe.
Output processing
By entering empty tank height E(= zero), full tank height F(= full range) and some application parameters, the application parameters will automatically adapt the meter to the measuring environment, corresponding to 4-20mA output.
Design features of 5m Unique Echo Discovery Guided Wave Radar Level Transmitter High Pressure NYRD 702
◎Guided wave radar object level meter is suitable to advanced microwave processing technology and unique Echo Discovery Echo processing technology, contacting measurement, high-accuracy measurement, more accurate measurement. At the same time, guided wave radar is not affected by external environment such as medium temperature and adhesion.
◎The 70-X series guided wave radar object level meter is suitable for versatile complicated working conditions and applications due to the versprocess connection modes and detection module kinds. Such as: high temperature, highly-pressured and low dielectric constant medium.
◎Pulse working mode, low emission power, can be put in a variety of corrosive, non-metal containers, no harm to human body and the environment.
Technical Parameter of 5m Unique Echo Discovery Guided Wave Radar Level Transmitter High Pressure NYRD 702
| Typical application | Liquid Built-in heating Coil, ladder, floating plate |
| Dust limestone powder, cement powder | |
| Solid small particles, grain, gravel, sand | |
| Product model | NYRD702 |
| Antenna form | wave guide tube type |
| Antenna material | 316 |
| Echo sampling | 55 times /s |
| Measuring range | 5m |
| Measurement accuracy | 0.05% ~ 0.1% F.S |
| Power supply | 24VDC(two wire, four wire), |
| Signal output | 4... 20mA/HART/RS485/Modbus... |
| Process temperature | -40~ +250°C |
| Process pressure | -0.1~4.0MPa |
| Process connectio | flange |
| Electrical interface | M20×1.5 , ½ " NPT |
| Protection grade |
IP 65, IP 67 |
| Explosion-proof grade |
ExdIICT6Gb |
※Note:The product can be customized according to the specific requirements of users.
Contact Person: Anna Zhang
Tel: 15021679084
