Product Details:
|
| Application: | Less Than 3°,suitable For Narrow Space | Product No.: | NYRD900 |
|---|---|---|---|
| Frequency: | 76GHz~81GHz | Antenna Form: | Lens Antenna, Anti-corrosion Lens Antenna |
| Antenna Material: | PTFE、304+PTFE | Measuring Range: | 0.08~150m |
| Accuracy: | 0.05%~0.1%F.S | Power Supply: | 24VDC、220VAC |
| High Light: | PTFE Radar Level Transmitter,Gas Steam Measuring Radar Level Meter,0.08m High Temperature Radar Level Meter |
||

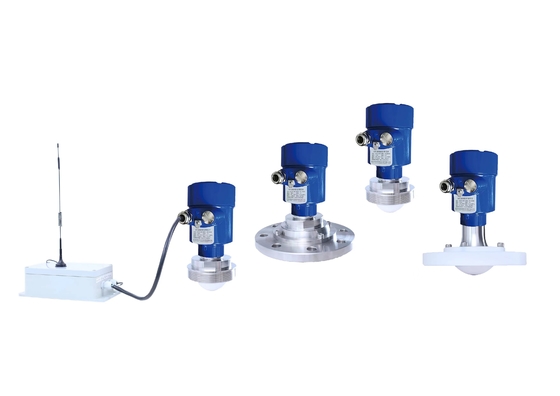

Measuring High Temperature Gas Steam 80G Radar Level Meter 76GHz~81GHz 0.08~150m
Millimeter wave electromagnetic wave: usually the frequency domain wavelength of 30-300ghz is 1~10 mm) of electromagnetic wave called millimeter wave, which is located in the wavelength range of the intersection of microwave and far-infrared wave three, so it has the characteristics of two kinds of spectrum. The 76-81ghz band is by far the least understood and applied development region.
Dsign feature
♦Good transient performance: Based on self-developed CMOS millimeter wave RF chip, achieve tighter RF structure, higher signal-to-noise ratio.
♦5GHz working bandwidth, so that the product has higher measurement resolution and measurement accuracy.
♦Coherence, dipole seismic water generation driven by coherent current or nonlinear differential frequency effects of coherent laser pulses
♦Low energy; The photon energy of millimeter-wave is only a few millielectron volts, and the phenomenon of X-ray ionization and destruction of the substance to be detected will not occur, so it is not easy to destroy the substance to be detected.
♦Strong penetration, for non-polar material has a strong penetration, many non-metallic non-polar materials in this band ray absorption is small, therefore, can be used to detect the internal structure of materials. For example, ceramic/cardboard/plastic/foam etc. are transparent to the electromagnetic radiation in this band and can also be used for airport/station security monitoring, such as detecting machinery/explosives and drugs, or for circuit board welding detection.
♦Easy to be absorbed by polar molecules, this band has less scattering in non-uniform substances, can detect and measure the content of water vapor. They can also be analyzed by their characteristic spectrum to study material composition or quality control.
Technical parameter
| Application | Electromagnetic wave emission angle is less than 3°,suitable for narrow space or guided wave tube measurement |
| Suitable for large storage tolerance(150m)and small cylinder storage “small blind area” | |
| High precision,high hygiene level and other places of measurement | |
| The process conditions are complex(stirring,heating rod,ladder,floating roof,strong dust,strong steam,etc.) | |
| Item number | NYRD900 |
| Transmission frequency | 76GHz~81GHz,FM scan frequency width 5GHz |

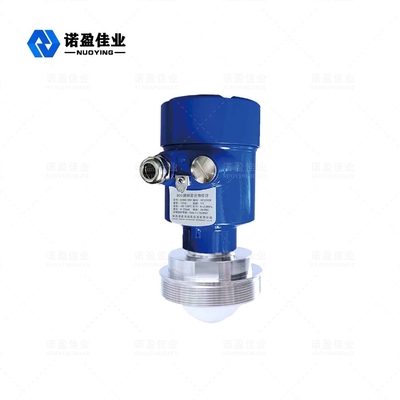

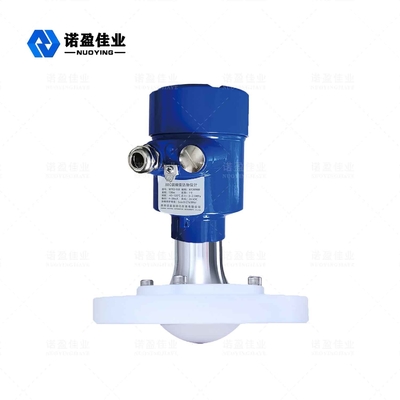

| Antenna form | Lens antenna, anti-corrosion lens antenna |
| The antenna material | PTFE,304+PTFE |
| Measuring range | 0.08~150m |
| Accuracy of measurement | 0.05%~0.1%F.S |
| Power supply | 24VDC,220VAC |
| Signal output | 4-20mA/HART/RS485/Modbus... |
| The process temperature | -40~130℃,-40~260℃(≥260℃customizable) |
| Process pressure | -0.1~2.0Mpa |

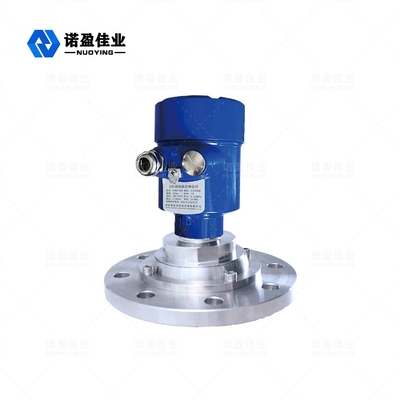

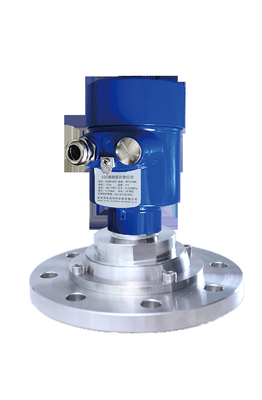

| Process connection | Thread, bracket, flange, sanitary clamp (optional) |
| Protection grade | IP65,IP67,IP68(optional) |
| Explosion-proof grade | ExiaIICT6 Ga,ExdIICT6 Gb(As shown in the certificate) |
