|Typical Application:||Complex Process Application( Stong Corrosion)||Product Model:||NYRD805|
|Antenna Type:||Rod Type(PFTE)||Antenna Material:||304, PTFE|
|Measuring Range:||10m, 20m (Customized)||Process Temperature:||-40°C~+130°C( Above130 °C Customized)|
|Process Pressure:||-0.1~0.3Mpa(Customized)||Measurement Accuracy:||0.05%~0.1% F.S|
Non Contact Radar Type Level Transmitter,
Rod Type Radar Liquid Level Sensor,
Industrial Radar Level Meter 26ghz
Compact Structure Easy to Install 26GHz Radar Level Meter Non Contact No Polution Industrial Applicatons
Anti-Corrosion 26GHz Radar Level Meter Not Affected By Foam Widely Adaptbility Operating Principle
Radar level meter NYRD80X serie sensors are 26GHz high-frequency radar type level measuring instruments, with a maximum measuring range of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform signal analysis and processing at a higher rate, so that the instrument can be used for some complex measurement conditions such as reactor and solid silo.
Its antenna transmits narrow microwave pulses, which are transmitted downward through the antenna. When the pulse wave reaches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into a level signal (because the pulse propagation speed is extremely fast, the time taken for the electromagnetic wave to reach the target and return to the receiver after reflection is almost instantaneous).
26GHz Radar Level Meter Design Feature
◎ Small antenna size, easy to install; Non contact radar, no wear, no pollution.
◎ Almost free from corrosion and foam; It is not affected by the change of medium density, temperature and pressure. Also, strong dust
environment has little impact on the operation of high-frequency level meter.
◎ Shorter wavelength, better reflection for inclined solid surface.
◎ Small beam angle and concentrated energy, which enhances the echo signal and helps to avoid interference.
◎ Smaller measurement blind area leads to better performance in small tank measurement.
◎ High signal-to-noise ratio, even in the case of fluctuations, it can perform better..
◎ High frequency, it is the best choice for measuring solid and low dielectric constant medium.
26GHz Radar Level Meter Product Parameter
|Typical Application||Complex Process Application( Stong Corrosion)|

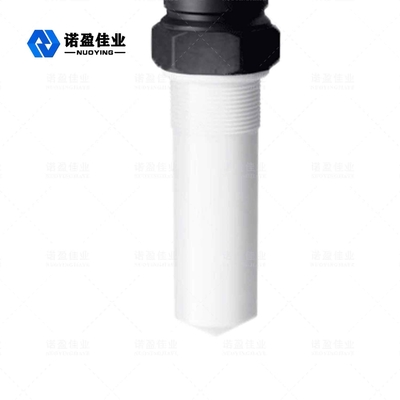

|Antenna Type||rod type,|
|Antenna Material||304, 316, PP, PFA|
|Measuring Range||10m, 20m, 30m, 35m, 40m, 80m|
|Measuring Accuracy||0.05%~0.1% F. S|
|Process Temperature||40~+130 ℃, - 40~+150 ℃, - 40~+26 ℃, 40~+℃|
|Process Presure||0.1~0.3MPa, - 0.1~2.0MPa, - 0.1~4.0MPa|

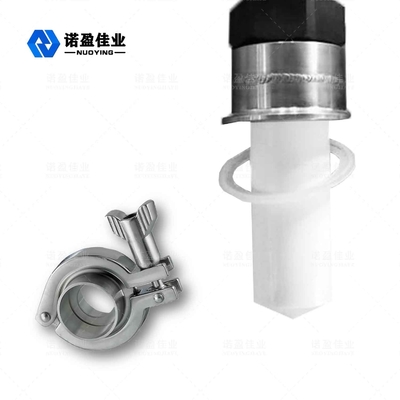

|Process Connection||thread, bracket, flange, sanitary clamp (optional)|
|Electrical Interface||M20 x 1.5, 1/2" NPT|
|Supply Power||24VDC (two wire, four wire), 220VAC|
|Signal Output||4-20 mA /HART/RS485/Modbus...|
|Protection Grade||IP67, IP68 (optional)|
|Explosion-proof Grade||Exia II CT6 Ga, Exd II CT6 Gb (details in certificate)|
