Product Details:
|
| Application: | Liquids,dust,solids | Item No.: | NYRD809 |
|---|---|---|---|
| Antenna Form: | Bar Type, Water Drop Type | Antenna Material: | PTFE、304、316 |
| Measuring Range: | 35m,40m,80m | Accuracy Of Measurement: | 0.05%~0.1%F.S |
| High Light: | NYRD809 Radar Level Transmitter,35m Radar Level Meter,Fly Ash Radar Level Meter |
||
Working Principle
The radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions such as reaction gold and solid silos.
Design Feature
◎Antenna size is small, easy to install, non-contact radar, no wear, no pollution.
◎Almost impervious to corrosion and foam. Not affected by medium density, temperature and pressure change.
◎Serious dust environment has little effect on the work of high frequency level meter.
◎Shorter wavelengths, better reflection of sloping solid surfaces.
◎Beam Angle is small, energy concentration, enhance the echo ability at the same time is conducive to avoid interference.
◎The measurement blind area is smaller, and good results can be achieved for small tank measurement.
◎High signal-to-noise ratio, even in the case of fluctuations can achieve better performance.
◎High frequency, is the best choice for measuring solid and low dielectric constant media.
Technical Parameters

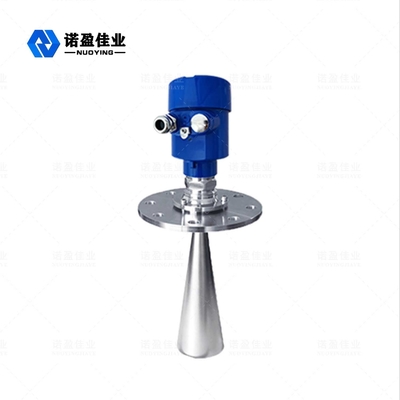

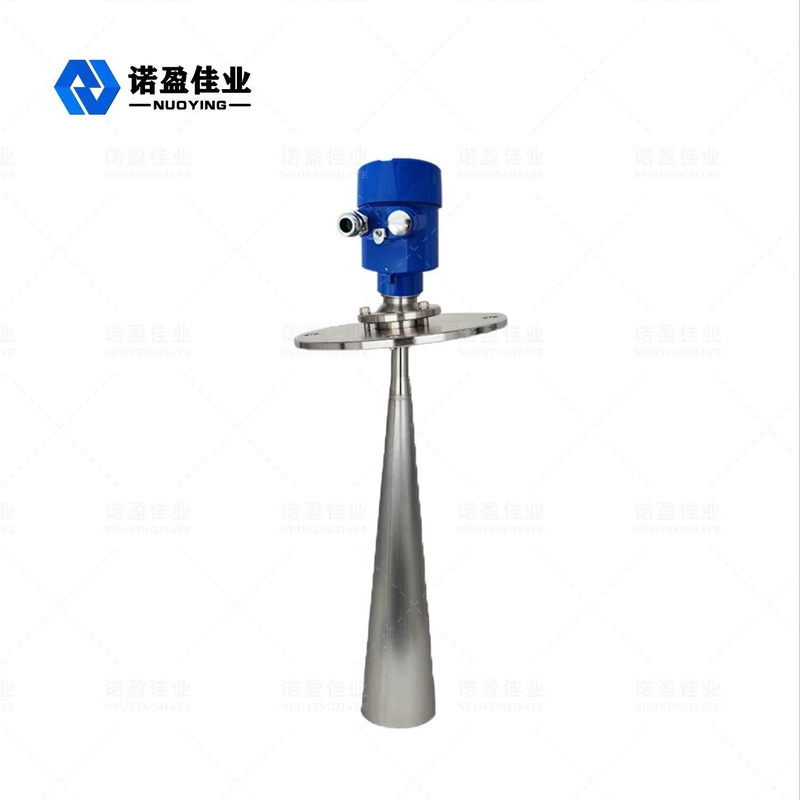

| Product series | NYRD809 |
| Typical application | Solid dust particles |
| Transmit frequency | 26GHZ |
| Antenna form | Trumpet |
| Antenna material | 316L(optional) |
| Measuring range | 35m |
| Measurement accuracy | 0.05%～0.1%F.S |
| Power supply | 24VDC(two-wire, four-wire),220V AC |
| Signal output | 4...20mA/RS485 |
| Live display | LCD |
| Process temperature | -40～+250℃ |
| Process pressure | -0.1～4.0MPa |
| Process connection | Flange,bracket(optional) |
| Electrical Interface | M20 1 5 × . , ½ "NPT |
| Shell material | Aluminum, stainless steel 304 (optional) |
| Protection grade | IP67 |
| Explosion-proof grade | ExiaⅡCT6 Ga , ExdⅡCT6 Gb(see the certificate for details) |
Application Field
NYRD809 was used to measure fly ash material level, vehicle pocket material level, open square body cone-bottom metal storage tank, normal temperature and pressure.
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
