Product Details:
|
| Product Model: | NYRD803 | Typical Application: | Liquid With Simple Process,dust,solid |
|---|---|---|---|
| Antenna Type: | Horn Type | Antenna Material: | PTFE, 304, 316 |
| Echo Sampling: | 55 Times/s | Measuring Range: | 0~30m |
| Process Temperature: | -40~+130℃ | Process Pressure: | -0.1～2.0MPa |

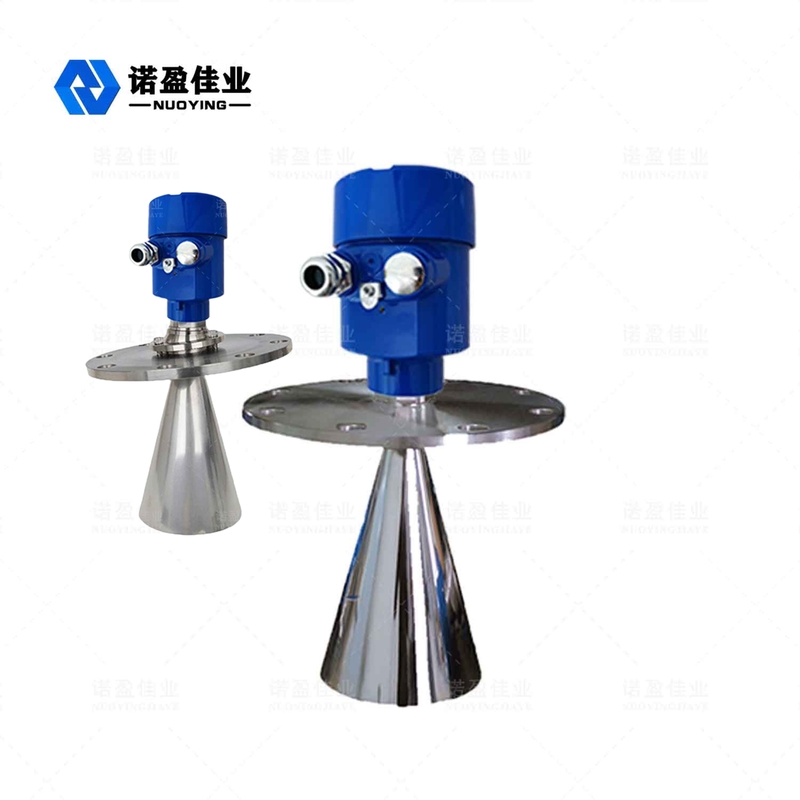

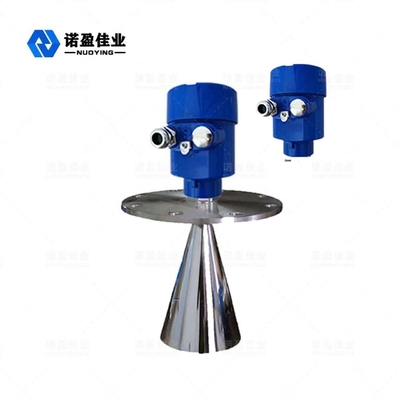

NYRD803 6G Intelligent Radar Level Meter Measuring Range 0-30m
NYRD803 Radar Level Meter Working Principle
It transmits and receives extremely short microwave pulses with very low energy through the antenna system. Radar waves travel at the speed of light. The running time can be converted into a level signal through electronic components. A special time extension method can ensure stable and accurate measurement in a very short time.
Even if there is false echo under complex working conditions, the latest micro processing technology and debugging software can accurately analyze the echo of the level.
NYRD803 Radar Level Meter Technical Parameters
|
Typical Application |
Liquid with simple process (dielectric constant>1.8, guided wave tube type with agitation) |
| Dust (strong dust can be equipped with purging or dust cover) | |
| Solid (medium such as small particles, small stones, sand, etc.) | |
| Product Models | NYRD803 |
| Antenna Type | horn type |
| Antenna Material | PTFE, 304, 316 |
| Echo Sampling | 55 times/s |
| Measuring Range | 0~30m |
| Measurement Accuracy | 0.05%~0.1%F. S |
| Power Supply | 24VDC (two wire, four wire), 220VAC |
| Signal Output | 4...20mA/HART/RS485/Modbus... |
| Process Temperature | -40~+130℃ |
| Process Pressure | -0.1~2.0MPa |
| Process Connection | Thread, bracket, flange (optional) |
| Electrical Interface | M20 × 1.5, ½ "NPT |
| Protection Grade | IP65, IP67, IP68 (optional) |
| Explosion Proof Grade | Exia Ⅱ CT6 Ga, Exd Ⅱ CT6 Gb (see certificate for details) |
Note: The products can be customized and designed according to the specific requirements of users!
NYRD803 Radar Level Meter Design Features
◎ The intelligent radar level meter adopts advanced microwave processing technology and unique Echo Discovery echo processing technology, and the product can be applied to various complex working conditions.
◎ The "false echo learning" function enables the instrument to accurately identify the real echo under multiple false echo conditions, so as to obtain accurate measurement results.
◎ Multiple process connection modes and types of detection components can be customized and designed according to customer requirements.
◎ It adopts pulse working mode, with extremely low emission power, and can be installed in various metal and non-metallic containers, without harm to human body and environment.
