| Brand Name: | NUOYING |
| Model Number: | NYRD809 |
| MOQ: | 1 pc |
| Price: | $158~$290/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
4-20mA Hart Radar Level Meter 26GHz Radar Level Transmitter of 35m Range for Level Measurement under Dusty Conditions
26GHz Radar Level Transmitter Product Description
The NYRD809 Radar level transmitter is a 26GHz high-frequency radar level measuring instrument with a maximum measurement distance of 35 meters. The antenna is further optimized, and the new fast microprocessor can perform higher-speed signal analysis and processing, so that the instrument can be used for some complex measurement conditions.
26GHz Radar Level Transmitter Design Features
1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.
3.Severe dust environment has little impact on the operation of high frequency level meter.
4.Shorter wavelength, better reflection for inclined solid surfaces.
5.Small beam angle and concentrated energy.
6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.
7.High signal-to-noise ratio for better performance even under fluctuating conditions.
8.High frequency, the best choice for measuring solid and low dielectric constant media.
26GHz Radar Level Transmitter Technical Parameters
| Typical application | Solids, particles and strong dust |
| Antenna material | PTFE, 316L (optional) |
| Antenna type | Horn antenna |
| Measuring range | 35m |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (2 Wire ,4 Wire) |
| Process temperature | -40~+250℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
Note: Products can be customized according to the specific requirements of users.

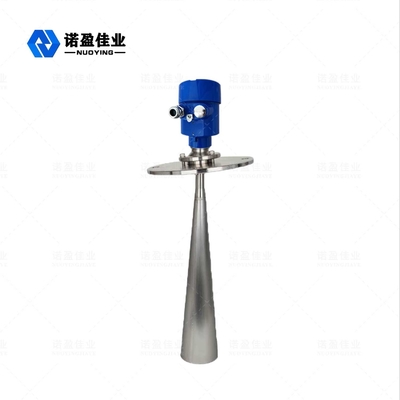

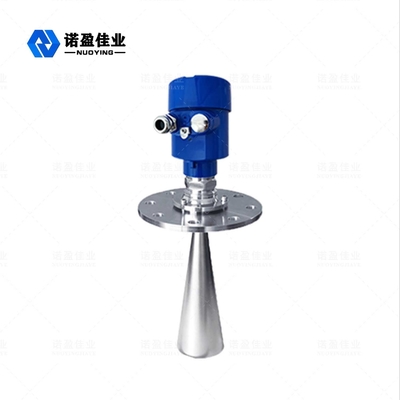

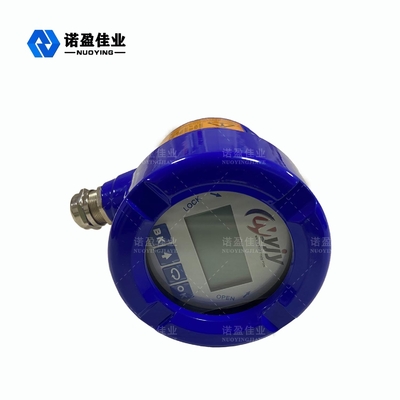

26GHz Radar Level Transmitter Related Pictures
