| Brand Name: | NUOYING |
| Model Number: | NYRD-SL |
| MOQ: | 1 pc |
| Price: | $138~$800/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
NYRD-SL Radar Level Transmitter for Liquids 80m Radar Sensor with Low Price and CE Report to Measure Water Tank
NYRD-SL Radar Level Transmitter Design Features
NYRD-SL Radar Level Transmitter Application Fields
1. Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.
2. Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
3. Other: Environmental protection, shipbuilding and other industries.
NYRD-SL 26GHz Radar Level Transmitter Technical Parameters
| Product Model | NYRD-SL |
| Typical application | Drains, reservoirs, rivers, lakes, shallows, etc. |
| Antenna material | PTFE, 304, 316, PP, PFA |
| Antenna type | Horn Antenna |
| Measuring range | 30m, 80m (optional) |
| Measuring accuracy | ±3mm |
| Power supply | 24VDC (2 Wire ,4 Wire) |
| Medium temperature | -40~+80℃ |
| Process connection | Thread, flange (optional) |
| Process pressure | -0.1~2.0MPa |
| Protection class | IP67 |
| Explosion-proof grade | Exia II CT6 (optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Electrical interface | M20*1.5, ½ ″NPT |
Note: Products can be customized according to the specific requirements of users.

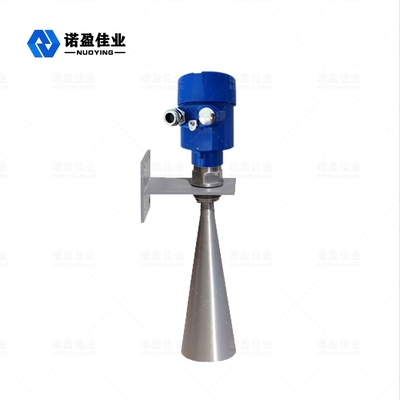

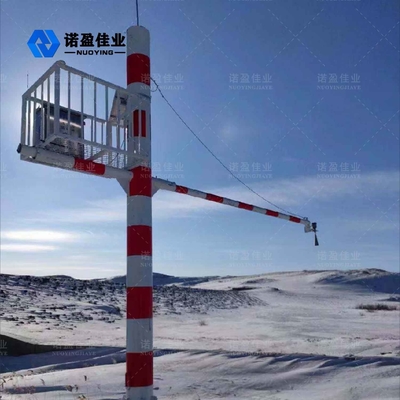

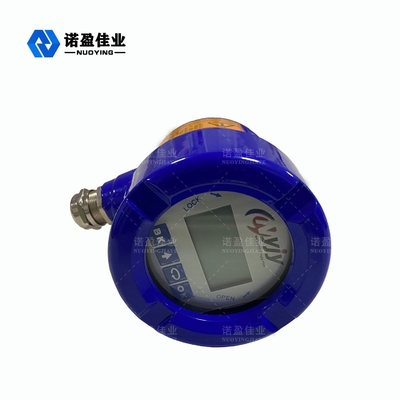

NYRD-SL 26GHz Radar Level Transmitter Related Pictures
