26GHz High Frequency Radar Water Level Gauge 4-20mA Output Radar Level Measuring Instruments for Powders
26GHz Radar Level Gauge Working Principle
The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).
The datum of measurement: Thread bottom surface or sealing surface of flange.
Note: When using the radar level transmitter, ensure that the highest level do not enter the measurement blind area (area D in the figure).
26GHz Radar Level Gauge Design Features
Multiple functions, especially suitable for strong corrosive liquids and powders
26GHz Radar Level Gauge Technical Parameters
| Product Model | NYRD-SD |
|
Typical application |
Powders, highly corrosive liquids, liquids prone to crystallization and condensation, etc. |
|
Frequency |
26GHz |
|
Accuracy |
±3mm |
|
Range |
40m |
|
Antenna material |
PTFE (optional) |
| Antenna type |
Water drop |
|
Echo sampling |
100 times/s |
|
Process temperature |
-40~+260℃ |
|
Process pressure |
-0.1~2.0MPa |
|
Ambient humidity |
0~90% |
|
Resolution |
1mm |
|
Process connection |
Thread, flange, bracket (optional) |
|
Electrical Interface |
M20×1. 5, ½ " NPT |
|
Signal output |
4...20mA/RS485/Modbus... |
|
Supply power |
24VDC; 220VAC (optional) |
|
Power |
3W |
|
Explosion-proof grade |
ExiaⅡCT6 Ga (optional) |
|
Protection class |
IP67 |
Note: Products can be customized according to the specific requirements of users.

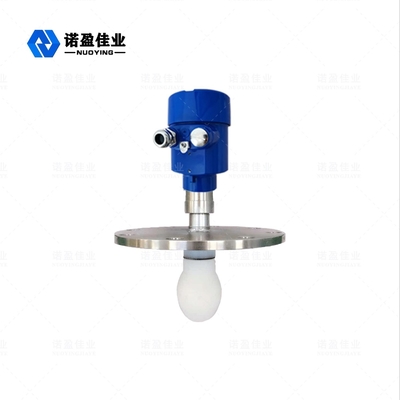

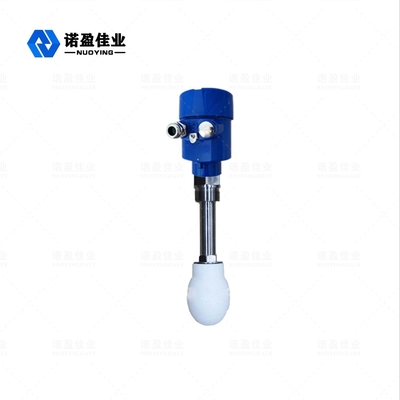

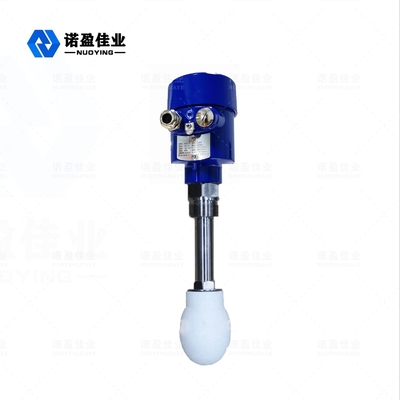

26GHz Radar Level Gauge Related Pictures
