Product Details:
|
| Measuring Range: | 30m | Frequency: | 100MHZ-1.8GHZ |
|---|---|---|---|
| Material: | 304,316L (optional) | Process Connection: | Screw Thread, Flange(optional), |
| Protection Grade: | Display Instrument IP67, IP67 | Sampling: | Echo 55 Samples / S |
| Communication Interface: | HART Communication Protocol | Process Pressure: | -0.1-4MPa |

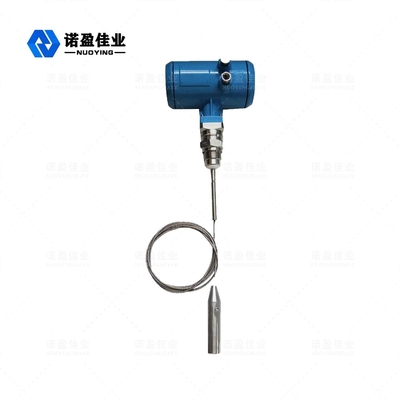

NYRD701 1.8GHz Guided Wave Radar Level Meter

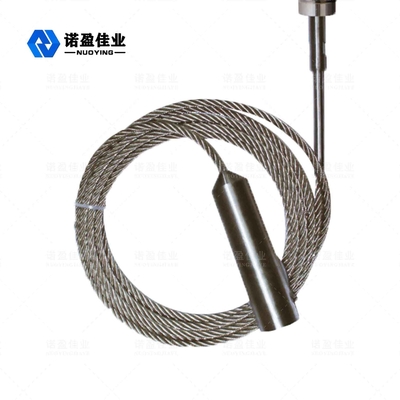

The guided wave radar level meter is a level meter based on the principle of time domain reflection (TDR). The electromagnetic pulse of the radar level gauge propagates along the steel cable or probe at the speed of light. Part of the pulse of the level meter is reflected to form an echo and return to the pulse transmitter along the same path. The distance between the transmitter and the surface of the measured medium is proportional to the propagation time of the pulse during that period, and the liquid level height is calculated.
Radar Level Meter Technical Parameter
| Parameters |
Frequency: 100MHZ-1.8GHZ Measuring range:-cable :0-30m; rod, coaxial :0-6m Repeatability: ± 3mm Resolution: 1mm Sampling: echo 55 samples / s Response speed: 0.2S (depending on the actual usage) Output current signal :4-20mA Accuracy: <0.1% |
| Communication Interface | HART communication protocol |
| Process connection |
G1-1/2 Flange DN50, DN80, DN100, DN150 |
| Process pressure | -1 ~ 40bar |
| Power |
Power: 24VDC (± 10%), ripple voltage: 1Vpp Power consumption: max 22.5mA |
| Environmental conditions | temperature -40 ℃ ~ +80 ℃ |
| Housing protection grade | IP67 |
| Explosion levels | EXiaIICT6 |
| Instrumentation power supply and signal output wire connection |
Sharing a two-core shielded cable Cable entry: 2 M20 × 1.5 (the cables diameter of 5 - 9mm) |
※ Note: Products can be customized according to the specific requirements of users!
Radar Level Meter Operating Principle
Guided Wave Radar is the kind of measuring instrument that is based on the principle of time travel. The radar wave travels at the speed of light, and its running time can be converted into a level signal by the electronic components. The probe emits high-frequency pulses which spread along the cable, and the pulses are reflected back when they encounter the material surface and received by the receiver inside the meter. The distance signal is then converted to the level signal.
Radar Level Meter Measurement Distance
The following table lists the relationship between the different categories of the measured medium and the measuring distance.
| Medium Index | DK(ε) | Solid Particles | Liquid | Measuring Range |
| 1 | 1.4…1.6 | －Condensing gas,e.g. N2CO2 | 3m(Refers only to the coaxial rod probe) | |
| 2 | 1.6…1.9 |
－Plastic belt particles －Lime stone,special cement －Sugar |
－Liquefied petroleum gas,e.g. propane －Solvent －Freon 12 / Freon －Palm oil |
25m |
| 3 | 1.9…2.5 | －Ordinary cement,Plaster | －Mineral oil,Fuel | 30m |
| 4 | 2.5…4 |
－Cereals,Seed －Stone －Sand |
－Benzene,Styrene,Toluene －Furan －Naphthalene |
30m |
| 5 | 4…7 |
－Wet stone, ore －Salt |
- Chlorobenzene, chloroform - Cellulose spray - Isocyanurate hydrochloric acid, amine |
30m |
| 6 | >7 |
- Metal powder - Carbon black - Coal |
- Aqueous liquids - Alcohol - Liquid ammonia |
30m |
