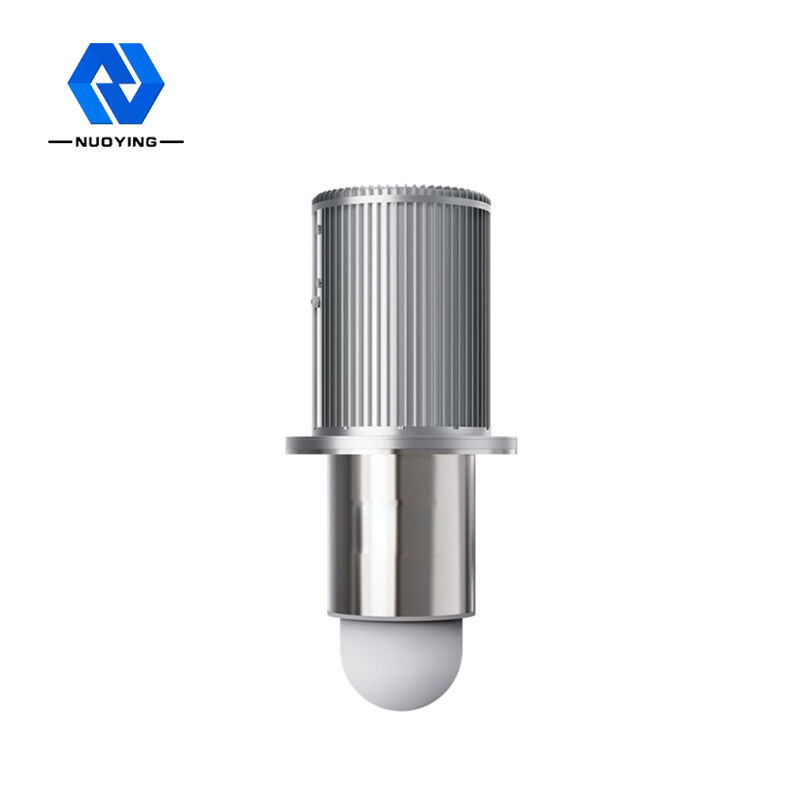

NYRD3000-3D with 360° scanning, strong dust penetration, volume accuracy ±0.5%

Name: NYRD3000-3D with 360° scanning, strong dust penetration, volume accuracy ±0.5%
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYRD705（Stainless Steel）
Price: 1,225.00 USD
Availability: InStock

Brand Name:	NUOYINGJIAYE
Model Number:	NYRD705（Stainless Steel）
MOQ:	1
Price:	$450 to $2000
Payment Terms:	T/T
Supply Ability:	1000 pcs/ pre month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Explosion-proof certificate

Measuring Range:

30m

Antenna Type:

High Temperature Type

Case Material:

Stainless Steel Case

Process Connection:

Screw Thread, Flange(optional),

Frequency:

100MHZ-1.8GHZ

Operating Temperature:

-40~250℃

Signal Output:

4-20mA, 4-20mA/HART(Two Wire/FOUR Wire)

Process Pressure:

-0.1-4MPa, -1~40BAR

Packaging Details:

40cm×30cm×30cm

Supply Ability:

1000 pcs/ pre month

Highlight:

22.5mA Guided Wave Radar Level Transmitter

1.8GHz Water Level Sensor Radar

1.8GHz Pressure Type Level Transmitter

Product Description

NYRD3000-3D Explosion-proof Scanning Imaging Radar

The explosion-proof scanning imaging radar can perform real-time material scanning of storage silos, tanks, and storage sheds at room temperature through a 360° two-dimensional axial scanning. It enables functions such as static target detection within the spatial range, point cloud data output, spatial scanning imaging, volume and weight calculation output, and is not affected by adverse environments such as rain, dust, and light.

Product advantages

· Two-dimensional axial 360° scanning for high-precision imaging of the target;
· The antenna beam angle is small, resulting in more accurate measurement and a longer detection distance;
· The farthest imaging radius is 50 meters;
· The volume calculation error is ≤ 3%;
· The scanning time is ≥ 30 seconds;
· Equipped with a high-precision attitude sensor for self-correction of inclination;
· Standard flange connection, and the imaging host can output the material surface and volume;
· Works all-weather, unaffected by rain, dust, light, temperature and other environmental factors;

Product size

NYRD3000-3D with 360° scanning, strong dust penetration, volume accuracy ±0.5% 0

技术参数

Technical Specifications
