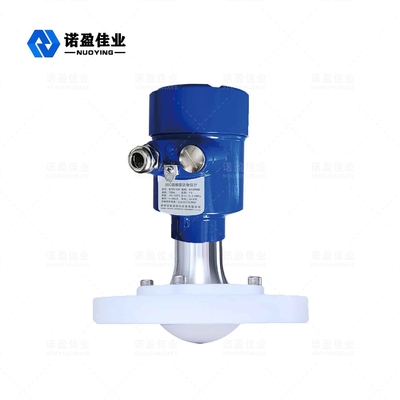

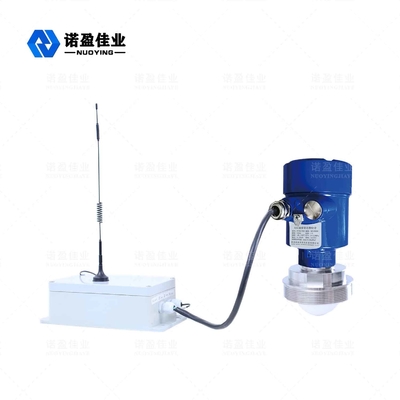

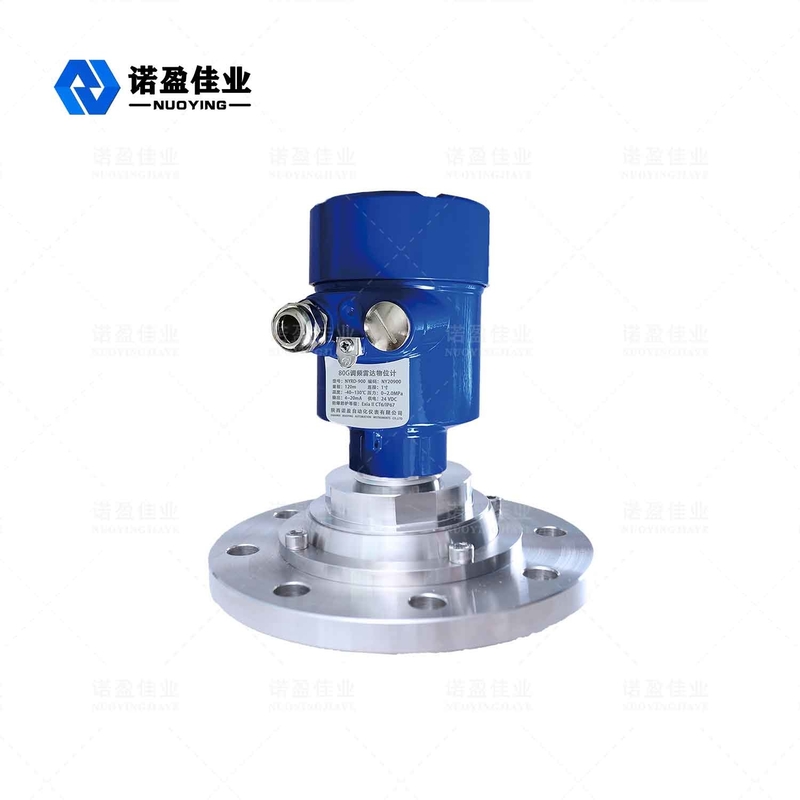

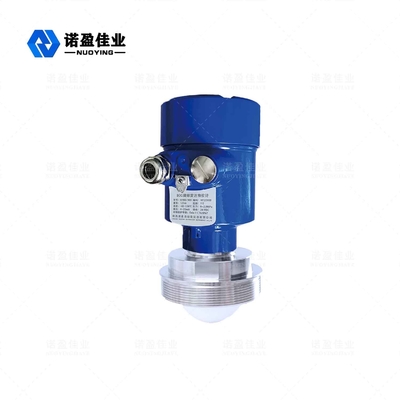

IP65 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

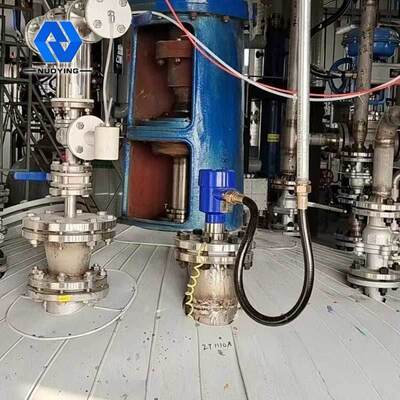

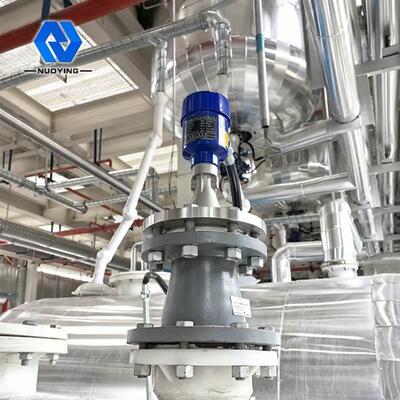

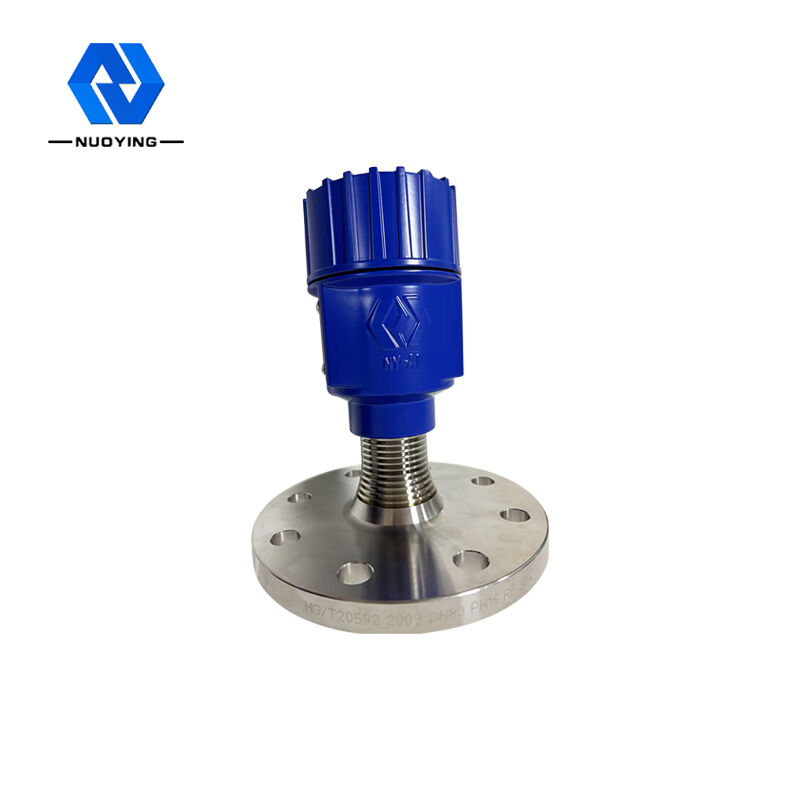

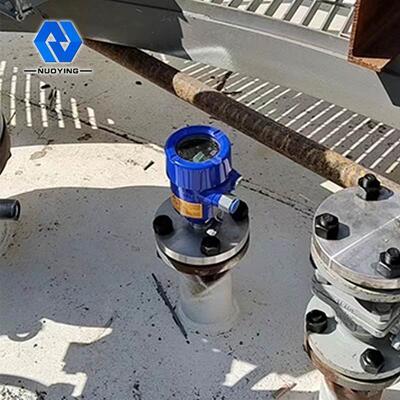

IP65 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m

IP65 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m
IP65 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m IP65 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m IP65 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m IP65 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m

Large Image :  IP65 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m

Product Details:
Place of Origin: China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYRD-PB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $160 to $1500
Packaging Details: 40cm×30cm×30cm
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 200 pcs/ pre month

IP65 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m

Description
Measuring Range: 120m Transmitting Frequency: 76GHz~81GHz, FM Scanning Frequency Width 5GHz
Antenna Form: Lens Antenna, Anti-corrosion Lens Antenna Process Connection: Screw Thread, Flange(optional), Flanged
Measurement Accuracy: 0.05%~0.1%F.S Operating Temperature: -40~130℃,-40~250℃
Signal Output: 4-20mA, 4-20mA/HART(Two Wire/FOUR Wire) Power Supply: 24VDC, 220VAC
High Light:

IP65 80 Ghz Radar Level Transmitter

,

Continuous Frequency Radar Level Transmitter

,

Liquid Level Gauge 20m 40m

80GHz Continuous Frequency Modulation Wave Radar Level Meter,Measuring Range:0~20m,0~40m,0~80m,Liquid Level Gauge

80GHz Continuous Frequency Modulation Wave Radar Level Meter



What is a millimeter wave electromagnetic wave; usually the 30-300GHz frequency domain (wavelength 1-10 mm) electromagnetic wave is called  millimeter wave, which is located in the overlapping wavelength range of microwave and far-infrared wave, so it has the characteristics
of both spectrum. The 76-81GHz band of this product is the area with the least understanding and application development of human beings so far.



Radar Level Meter Technical Parameter



Transmitting frequency 76GHz~81GHz, FM scanning frequency width 5GHz
Antenna form lens antenna, anti-corrosion lens antenna
Antenna material PTFE, 304+PTFE
Measuring range 0.08~120m
Measurement accuracy 0.05%~0.1%F.S
Power supply 24VDC, 220VAC
Signal output 4...20mA/HART/RS485/Modbus...
Process temperature -40~+130℃, -40~+260℃ (≥260℃ can be customized)
Process pressure -0.1~4.0MPa
Process connection Thread, Bracket, Flange, Sanitary clamp (optional)
Protection level IP65, IP67, IP68 (optional)
Explosion-proof grade ExiaⅡCT6 Ga, ExdⅡCT6 Gb


Note: Products can be customized according to the specific requirements of users!

IP65 Continuous Frequency 80 Ghz Radar Level Transmitter Modulation 20m 40m 80m 0



Radar Level Meter Operating Principle



FM wave FMCW radar products (also called millimeter wave radars), because they use millimeter wave bands with a higher frequency than Ku band radars, they are important in remote target detection and strong smoke and dust environments, such as long-distance imaging and multi spectral imaging. Application, and can detect smaller targets than microwave radar and achieve more accurate positioning, with higher resolution and stronger confidentiality.

Radar Level Meter Design Features



◎ Very good transient performance: Based on self-developed CMOS millimeter wave radio frequency chip, it realizes a tighter radio frequency architecture and a higher signal-to-noise ratio.

◎ 5GHz working bandwidth, so that the product has higher measurement resolution and measurement accuracy.

◎ Coherence: Dipole oscillation driven by dry current or non-linear difference frequency effect of coherent laser pulse;

◎ Low energy: The millimeter-wave photon energy is only a few millielectron volts, and there will be no X-ray ionization and damage to the substance to be detected, so it is not easy to damage the substance to be detected.

◎Strong penetrability: It has strong penetrating power for non-polar materials. Many non-metal non-polar materials have less absorption of rays in this band, so they can be used to detect the internal structure of materials. For example, ceramics/cardboard/plastic products/foams are transparent to electromagnetic radiation in this band, and can also be used for airport/station safety monitoring, such as detecting machinery/explosives and drugs, or for circuit board welding detection.

◎ Easily absorbed by polar molecules; this band has less scattering in non-uniform materials, and can detect and measure water vapor content. It is also possible to study the material composition or carry out quality control by analyzing their characteristic spectrum.

◎ Large range and small blind area. The maximum range can reach 120m, and the blind zone can reach 8cm.

◎ Small beam angle and small antenna size make it easy to install. It is less affected by the size of the tank body and the interference of obstacles.

◎The wavelength is shorter, and it has better reflection characteristics on the solid surface, so no special universal flange is needed for aiming.

◎ Support remote debugging and remote upgrade to facilitate the maintenance work of on-site personnel.



As an 80GHz band radar used in industrial measurement, it has high-precision, non-contact level and liquid level measurement. It has the incomparable advantages of other ordinary microwave pulse radars and guided wave radars. The extremely narrow beam and penetrating ability are more effective.

Adapt to ultra-complex working conditions without compromising measurement performance.
