|Measuring Range:||80m||Case Material:||Cast Aluminum Case|
|Antenna Material:||304 316L||Process Connection:||Universal Flange, Clamp And Bracket Are Optional|
|Echo Sampling:||100 Times/s||Operating Temperature:||-40~80℃|

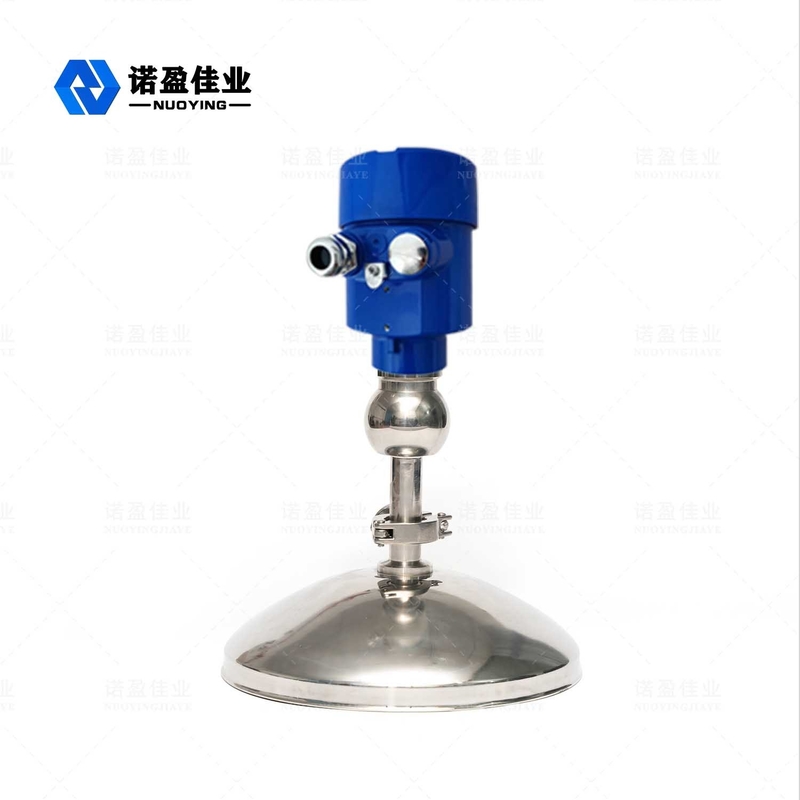

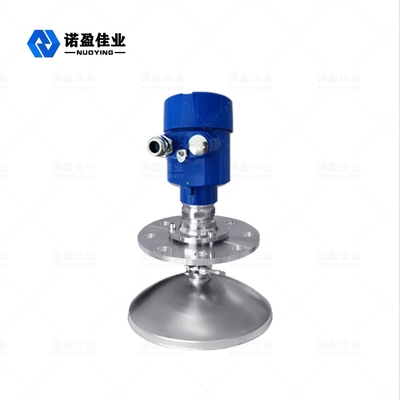

Parabolic Antenna Radar Level Gauge,
Tank Height Measurement Radar Level Gauge,
Parabolic Antenna radar tank gauge
26GHz NYRD-810 Radar Level Meter
The NYRD-810 parabolic antenna radar level gauge is used for the height measurement of the tank material level.The antenna of the high-frequency radar level gauge emits extremely narrow microwave pulses. This pulse propagates in space at the speed of light and meets the surface of the measured medium. Part of its energy is reflected back and received by the same antenna.
The time interval between the transmitted pulse and the received pulse is proportional to the distance from the antenna to the surface of the measured medium. Due to the extremely high propagation speed of electromagnetic waves, the time interval between the transmitted pulse and the received pulse is very small (nanosecond order) and difficult to confirm. The 26G high-frequency radar level meter uses a special related solution technology that can accurately identify the time interval between the transmitted pulse and the received pulse, so as to further calculate the distance from the antenna to the surface of the measured medium.
Radar Level Meter Technical Parameter
|Typical application||Monitoring Solids, dust, particles, etc|
|Antenna material||304 316L (optional)|
|Echo sampling||100 times/s|
|Process connection||Flange or bracket installation|
|Electrical Interface||M20×1. 5, ½ " NPT|
|Supply power||24V DC (optional)|
※ Note: Products can be customized according to the specific requirements of users!
