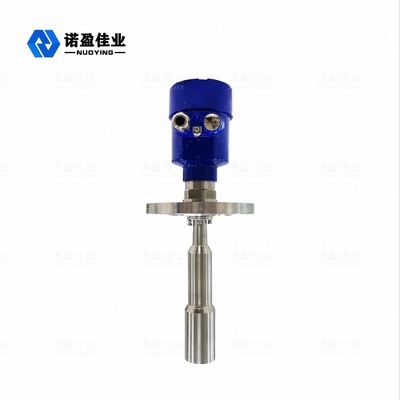

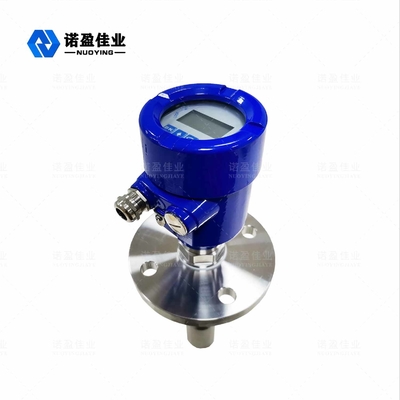

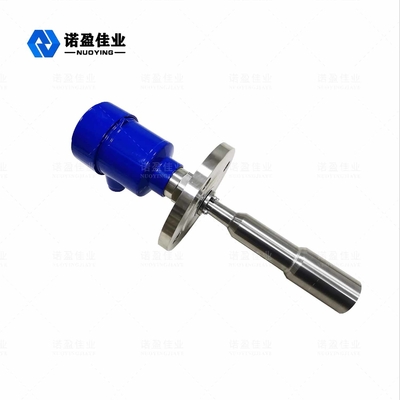

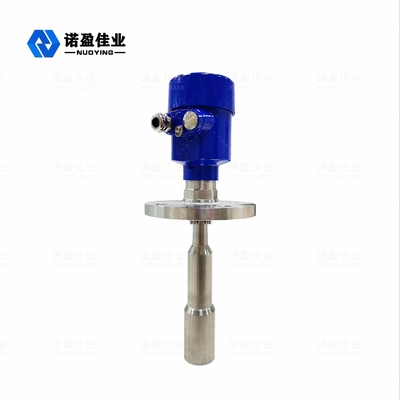

46mm Antenna Radar Level Transmitter 26GHz Explosion Proof

46mm Antenna Radar Level Transmitter 26GHz Explosion Proof
46mm Antenna Radar Level Transmitter 26GHz Explosion Proof 46mm Antenna Radar Level Transmitter 26GHz Explosion Proof 46mm Antenna Radar Level Transmitter 26GHz Explosion Proof 46mm Antenna Radar Level Transmitter 26GHz Explosion Proof

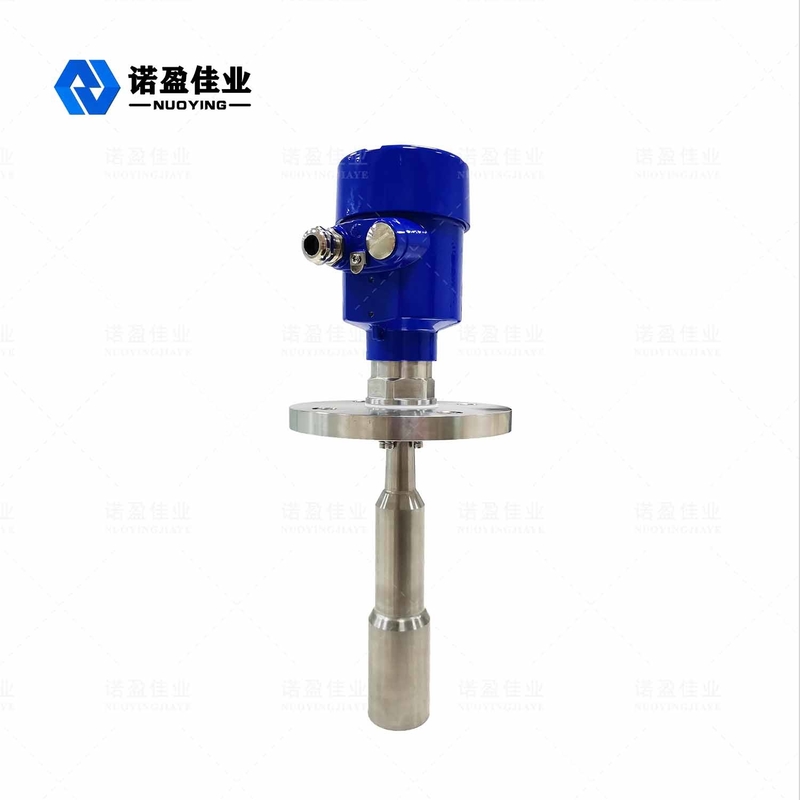

Large Image :  46mm Antenna Radar Level Transmitter 26GHz Explosion Proof

Product Details:
Place of Origin: China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYRD-806(Very Small Size)
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $400 to $1800
Packaging Details: 60cm×30cm×30cm
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 500 pcs/ pre month

46mm Antenna Radar Level Transmitter 26GHz Explosion Proof

Description
Measuring Range: 30m Transmit Frequency: 26GHz
Antenna Size: φ46mm Operating Temperature: -40~130℃
Accuracy: 3mm Typical Application: Temperature, Pressure, And Slightly Corrosive Liquid Etc
Explosion-proof Grade: Exia IICT6 (optional) Supply Power: 24V DC 220VAC (optional)
High Light:

46mm Antenna Radar Level Transmitter

,

Radar Level Transmitter 26GHz

,

Explosion Proof guided microwave level transmitters

Very Small Size Non Contact Radar Level Transmitter



26GHz NYRD-806 Radar Level Meter



The radar level meter NYRD80X series sensor is a 26Hz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher rate signal analysis processing so that the instrument can be used fbr some complex measurement conditions such as reaction kettle, solid storage.



Radar Level Meter Technical Parameter



Typical application Temperature, pressure, and slightly corrosive liquid etc
Transmit frequency 26GHz
Accuracy 3mm
Range 30m
Antenna material 304 316L (optional)
Echo sampling 100 times/s
Process temperature -40~130℃,-40~250℃
Ambient humidity 0~90%
Resolution 1mm
Process connection Universal flange
Electrical Interface M20×1. 5, ½ " NPT
Signal output 4...20mA/HART/RS485/Modbus...
Supply power 24V DC 220VAC (optional)
Power 3W
Explosion-proof grade ExiaⅡCT6(optional)
Protection class IP67



 Note: Products can be customized according to the specific requirements of users!



Radar Level Meter Measuring principle



The radar level antenna emits a narrow microwave pulse and transmits it down through the antenna. After the pulse touches the surface of the medium being measured, it is reflected back and accepted by the antenna system again, transmitting the signal to the electronic circuit part automatically converted into a object position signal(because the pulse propagation speed is extremely fast, The time it takes for electromagnetic waves to reach the target and reflect back to the receiver is almost instantaneous.)



46mm Antenna Radar Level Transmitter 26GHz Explosion Proof 0



Radar Level Meter Design features



  • The antenna is small in size and easy to install; Non-contact radar, no wear, no pollution.
  • Almost not affected by corrosion and foam; It is almost unaffected by changes in water vapor, temperature and pressure in the atmosphere.
  • Serious dust environment has little influence on the work of high frequency level meter.
  • Shorter wavelength and better reflection on inclined solid surface.
  • The beam angle is small and the energy is concentrated, which enhances the echo capability and is beneficial to avoiding interfering objects.
  • The blind area of measurement is smaller, and good results can be obtained for small tank measurement.
  • High signal-to-noise ratio enables better performance even under fluctuating conditions.
  • High frequency is the best choice for measuring solid and low dielectric constant media.
