IP67 PFA Radar Tank Level Gauge Corrosive Liquid Guided Wave Radar Transmitter

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

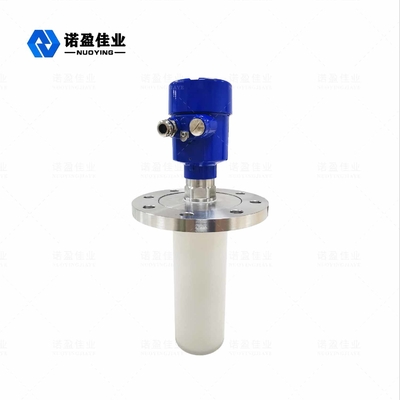

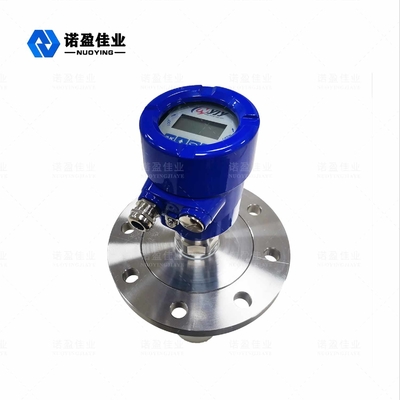

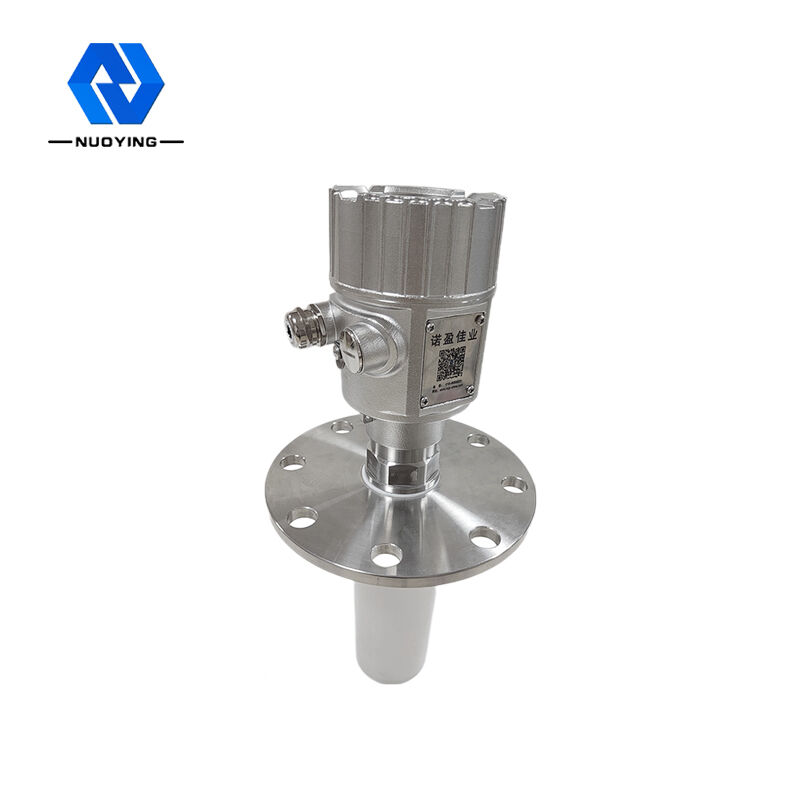

IP67 PFA Radar Tank Level Gauge Corrosive Liquid Guided Wave Radar Transmitter

IP67 PFA Radar Tank Level Gauge Corrosive Liquid Guided Wave Radar Transmitter
IP67 PFA Radar Tank Level Gauge Corrosive Liquid Guided Wave Radar Transmitter IP67 PFA Radar Tank Level Gauge Corrosive Liquid Guided Wave Radar Transmitter

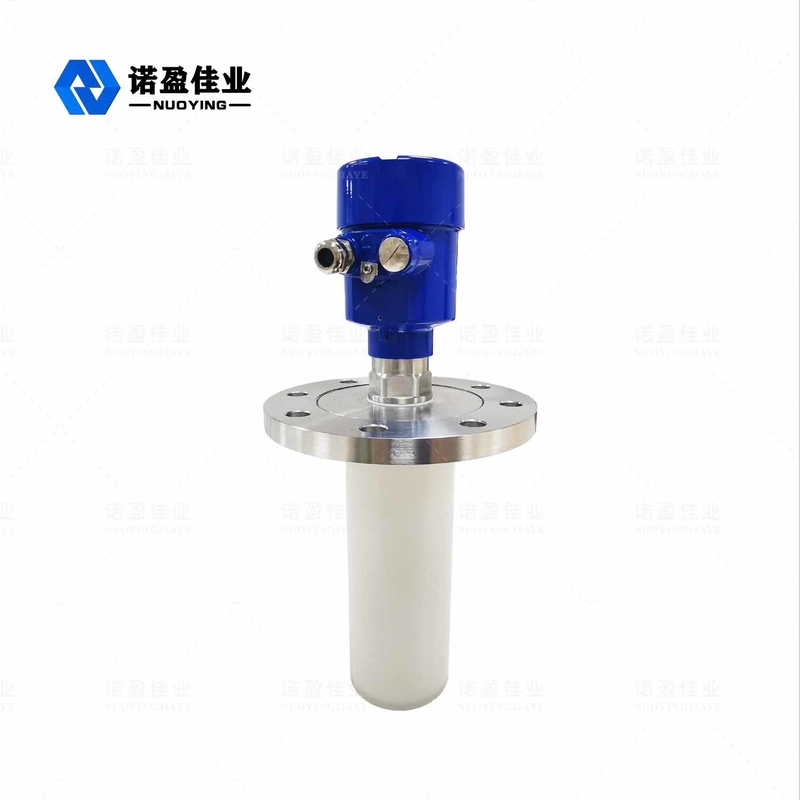

Large Image :  IP67 PFA Radar Tank Level Gauge Corrosive Liquid Guided Wave Radar Transmitter

Product Details:
Place of Origin: China
Brand Name: NUOYINGJIAYE
Certification: Explosion-proof certificate
Model Number: NYRD-86
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $400 to $1800
Packaging Details: 60cm×30cm×30cm
Delivery Time: 7 work days
Payment Terms: T/T
Supply Ability: 500 pcs/ pre month

IP67 PFA Radar Tank Level Gauge Corrosive Liquid Guided Wave Radar Transmitter

Description
Medium: Corrosive Liquid Material: PFA
Measuring Range: 20m Operating Temperature: -40~130℃
Signal Output: 4...20mA/HART/RS485/Modbus... Accuracy: 3mm
Explosion-proof Grade: Exia IICT6 (optional) Electrical Interface: M20×1. 5, ½ " NPT
High Light:

PFA radar tank level gauge

,

IP67 radar tank level gauge

,

PFA guided wave radar transmitter



26GHz NYRD-86 Radar Level Meter



The radar level meter NYRD80X series sensor is a 26Hz high-frequency radar level measuring instrument with a maximum measurement distance of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform higher rate signal analysis processing so that the instrument can be used fbr some complex measurement conditions such as reaction kettle, solid storage.



Radar Level Meter Technical Parameter



Typical application Corrosive liquid etc
Transmit frequency 26GHz
Accuracy 3mm
Range 20m
Antenna material PFA (optional)
Echo sampling 100 times/s
Process temperature -40~130℃
Ambient humidity 0~90%
Resolution 1mm
Process connection flange
Electrical Interface M20×1. 5, ½ " NPT
Signal output 4...20mA/HART/RS485/Modbus...
Supply power 24V DC 220VAC (optional)
Power 3W
Explosion-proof grade ExiaⅡCT6(optional)
Protection class IP67



 Note: Products can be customized according to the specific requirements of users!

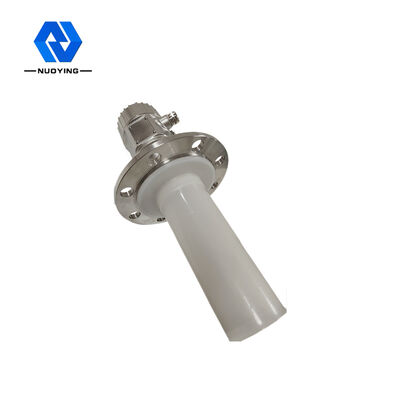

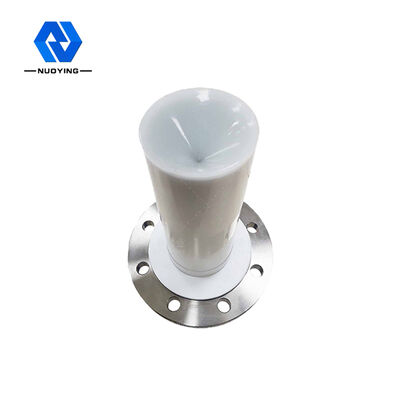

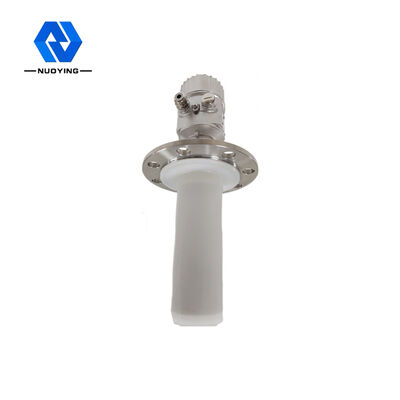

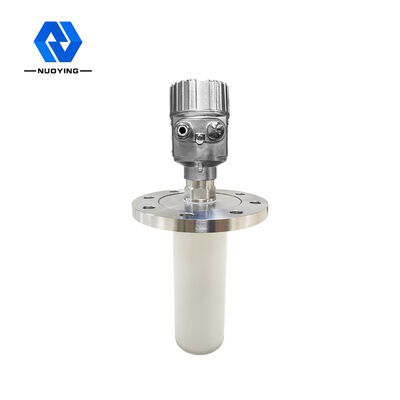

The radar level meter antenna using PFA material,PFA plastic is a copolymer of a small amount of perfluoropropyl perfluorovinyl ether and polytetrafluoroethylene. The melting cohesiveness is enhanced and the viscosity of the solution is decreased, while the properties are unchanged compared with that of PTFE. The resin can be directly processed by ordinary thermoplastic molding. Suitable for making corrosion-resistant parts, wear resistant parts, sealing parts, insulating parts and medical instrument parts.



Radar Level Meter Measuring principle



The radar level antenna emits a narrow microwave pulse and transmits it down through the antenna. After the pulse touches the surface of the medium being measured, it is reflected back and accepted by the antenna system again, transmitting the signal to the electronic circuit part automatically converted into a object position signal(because the pulse propagation speed is extremely fast, The time it takes for electromagnetic waves to reach the target and reflect back to the receiver is almost instantaneous.)

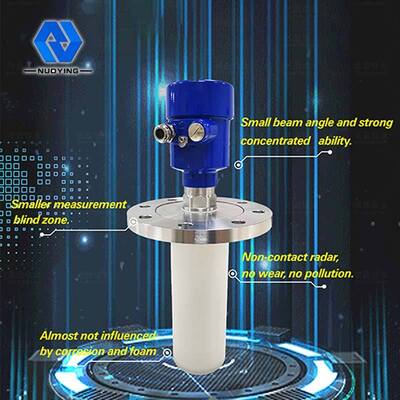

Radar Level Meter Design features



  • The antenna is small in size and easy to install; Non-contact radar, no wear, no pollution.
  • Almost not affected by corrosion and foam; It is almost unaffected by changes in water vapor, temperature and pressure in the atmosphere.
  • Serious dust environment has little influence on the work of high frequency level meter.
  • Shorter wavelength and better reflection on inclined solid surface.
  • The beam angle is small and the energy is concentrated, which enhances the echo capability and is beneficial to avoiding interfering objects.
  • The blind area of measurement is smaller, and good results can be obtained for small tank measurement.
  • High signal-to-noise ratio enables better performance even under fluctuating conditions.
  • High frequency is the best choice for measuring solid and low dielectric constant media.
