Product Details:
|
| Type: | Tuning Fork Densitometer | Usage: | Measurement Of Liquid And Solid Powders |
|---|---|---|---|
| Measurement Range: | 500-2500 Kg/m3 | Application: | Density Measurement |
| Output: | 4-20mA | Supply Power: | 24VDC |
| High Light: | Online Oil Tuning Fork Density Meter,Tuning Fork Density Meter 50mA,50mA Gas Density Meter |
||

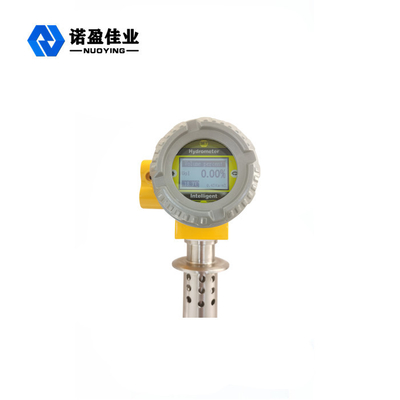

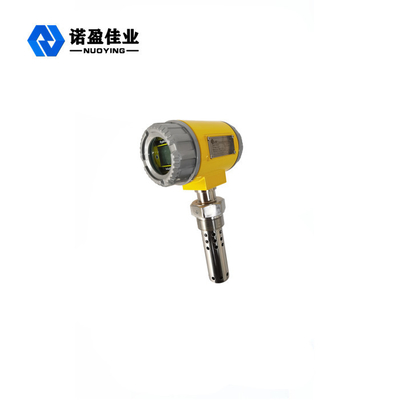

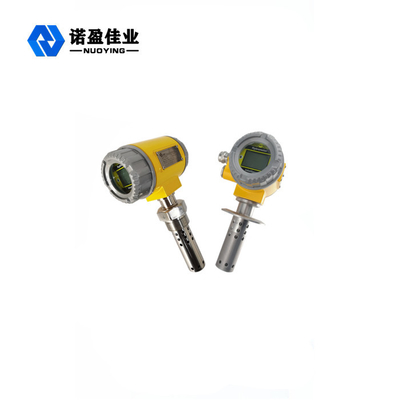

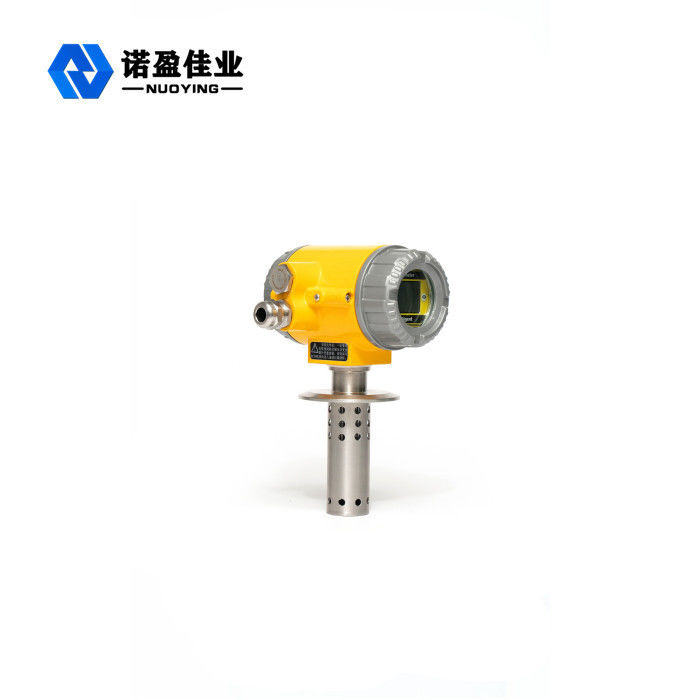

High Quality Digital Density Meter Tuning Fork Online Density Meter For Oil
High Quality Digital Density Meter Tuning Fork Online Density Meter For Oil Description:
The plug-in digital density meter tuning fork can detect density on line in real time. It can be applied to process control of products with density as basic parameter or quality control with solid percentage or concentration percentage as reference. Typical industries include petrochemical industry, brewing industry, food industry, pharmaceutical industry and mineral processing (such as clay, carbonate, silicate, etc.), which are specifically applied to interface detection in multi-product pipelines in the above industries, density detection of stirred mixture, end-point monitoring of reaction kettle, and segregation device interface detection.
High Quality Digital Density Meter Tuning Fork Online Density Meter For Oil Parameters:
| Measuring range | 0 – 2500 kg/m3 |
| Calibration range | 0 – 2500 kg/m3 |
| Measurement accuracy | ±2 kg/m3 ,±0.5% |
| Repeatability | ±0.2 kg/m3 ,±0.1% |
| Medium temperature range | -50℃ ~ +150℃ |
| Working pressure | 4Mpa |
| Fluid viscosity range | 0 – 600 cP |
| Temperature Coefficient | ＜ 0.1 kg/m3/℃(± 0.5%) After correction |
| Stress effect | Negligible |
| Built-in temperature sensor | Digital sensor |
| Wetted material | 316L |
| Power supply | 24VDC, ≥50 mA |
| Analog signal output | 4 -20 mA |
| Output accuracy (20℃) | ± 0.1% of reading or ± 0.05% FS |
| Output repeatability (-40 ~+85℃) | ± 0.05% FS |
| Process connection | DIN 50 PN16 DIN 50 PN40 |
| IDF and RJT sanitary | |
| Protection level | IP65 |
High Quality Digital Density Meter Tuning Fork Online Density Meter For Oil Features:
◎Suitable for tank, pipeline, flow or static medium density measurement. Suitable for measuring high temperature, low temperature, containing impurities and high viscosity medium.
◎Microprocessor-based electronic conversion device, integrated signal processing, calculation and diagnostic functions.
◎Continuous online measurement of liquid density and temperature, high precision, more safe and reliable, can be directly used for production process control.
◎ It can communicate with PC directly through RS485 interface. Users can directly configure nodes, diagnose faults and record data online.
