Product Details:
|
| Fork Length: | 150mm | Fork Material: | 316L |
|---|---|---|---|
| Output: | 4-20mA,RS485 | Measurement Range: | 0~100.0% |
| Pressure: | 2.0Mpa | Connection: | Thread,Flange |
| Protection Level: | IP65 | Acccuracy: | 0.001 |
| High Light: | Concentration Tuning Fork Density Meter,150mm Tuning Fork Density Meter,316L Fuel Density Meter |
||

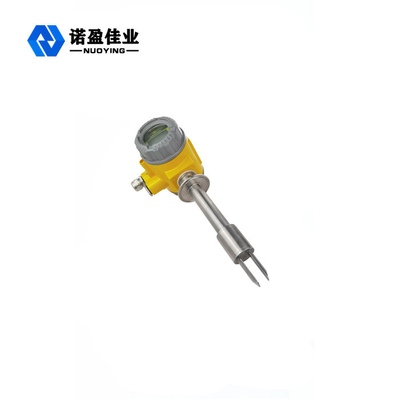

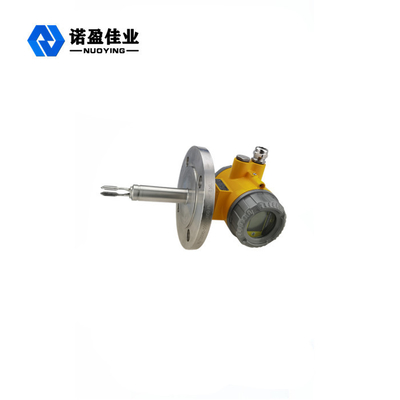

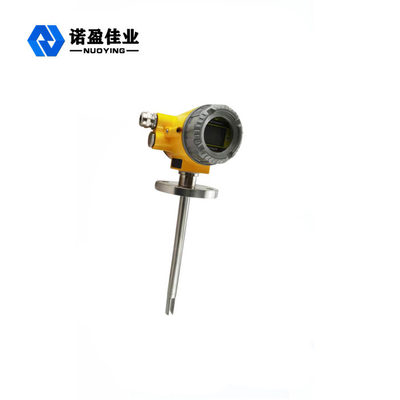

Tuning Fork Density Meter Plug-In Fuel Density Meter Juice Concentration Meter
Tuning Fork Density Meter Plug-In Fuel Density Meter Juice Concentration Meter Description:
The plug-in fuel tuning fork part induces vibration through an internal piezoelectric device fixed at the bottom end of the fork body. The oscillation frequency is detected by a secondary piezoelectric device fixed at the other end of the fork body, and then the signal is amplified by the circuit on the top. The density of the liquid is closely related to the vibration frequency when the measured liquid flows. When the density of the measured liquid changes, the vibration frequency when the liquid flows also changes. Through the following equation, the density of the measured liquid can be accurately calculated.
Tuning Fork Density Meter Plug-In Fuel Density Meter Juice Concentration Meter Parameters:
| Measuring range | 0~100.0% |
| Measurement accuracy | ±0.5% |
| Medium temperature range | -50℃ ~ +150℃ |
| Repeatability | ±0.1% |
| Calibration range | 0~100.0% |
| Working pressure | 2Mpa |
| Process connection | Flange,Thtead |
| Display | LCD |
| Wetted material | 316L |
| Power supply | 24VDC,220VAC |
| Built-in temperature sensor | Digital sensor |
| Analog signal output | 4-20mA,RS485 |
| Output accuracy (20℃) | ± 0.1% of reading or ± 0.05% FS |
| Output repeatability (-40 ~+85℃) | ± 0.05% FS |
| Protection level | IP65 |
Tuning Fork Density Meter Plug-In Fuel Density Meter Juice Concentration Meter Features:
◎ The basic density, concentration percentage, mass percentage, volume percentage and other parameters can be calculated while measuring density and temperature.Excellent overpressure protection structure, superior temperature stability, full welding seal, solid and reliable design.
◎ Easy to install and use, insert the liquid can display the reading.
◎ Easy maintenance, no regular cleaning.
◎Calibration without standard reference source, no laboratory calibration, no process interruption.
◎The intrinsically safe type can be used in dangerous sites, and the sanitary type can be installed in food production sites.
