Product Details:
|
| Typical Application: | Solid Powder / Particle Measurement | Measuring Distance: | 120m |
|---|---|---|---|
| Material: | 304/316L Stainless Steel(optional) | Process Connection: | Screw Thread, Flange(optional), Flanged |
| Process Pressure: | -0.1~ 2.5MPa | Operating Temperature: | -40~80℃ |
| Protection Grade: | IP67 | Explosion-proof Grade: | Exia IICT6 (optional) |
| High Light: | 120m Microwave Level Switch,Microwave Level Switch 2.5MPa,capacitance type level switch 2.5MPa |
||

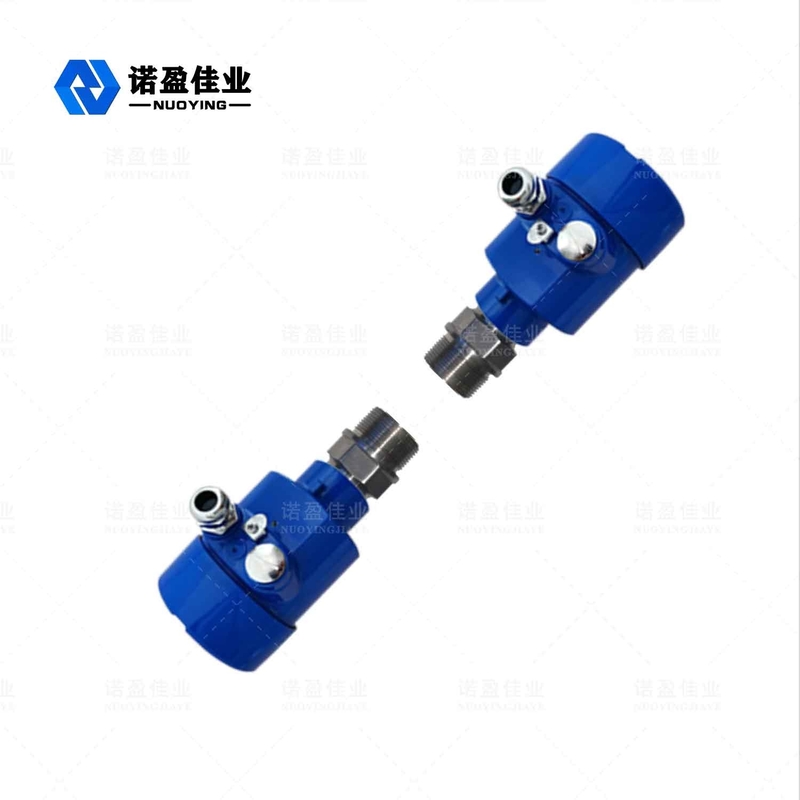

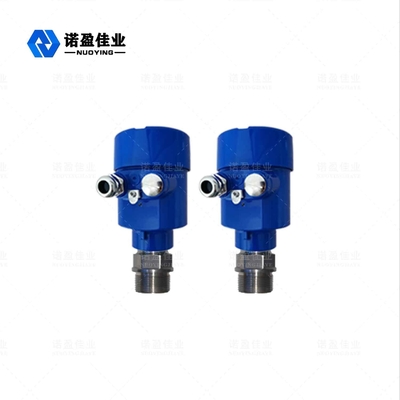

NYWBUK Microwave Level Switch Non-Contact Liquid Level Alarm
NYWBUK series of microwave level switches are based on the principle of microwave very narrow pulse detection. Microwave level switch is a solid position switch designed by microwave pair emitter-receiver. The microwave level switch is a paired set of instruments, one end is the transmitter, the other is the receiving end, which is responsible for the acquisition and output of the microwave signal, and the instrument is installed in pairs on the position to be monitored. When there is no material plugging in the monitoring position, the receiving end outputs the Mno material” signal, and when the monitoring position is blocked, the receiving end outputs the "material plugging1' signal. The state of the output signal can be set to high bit alarm and low level alarm on the spot. Police.
NYWBUK Microwave Level SwitchTechnical Parameter
|
Applications |
solid powder / particle |
|
Material |
304/316L Stainless steel(optional) |
|
Power supply |
24VDC, 220VAC (optional) |
|
Process temperature |
-40~80℃ |
|
Process pressure |
-0.1~ 2.5MPa |
|
Process connection |
Thread, flange (optional) |
|
Time delay |
0.5〜30s adjustable |
|
Sensitivity |
0〜15 level |
|
Measuring distance |
120m |
|
Protection grade |
IP67 |
|
Explosion-proof grade |
Exia IICT6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
