Product Details:
|
| Output: | RS485 | Accuracy: | 0.002g/cm3 |
|---|---|---|---|
| Range: | 0-2000g/cm3 | Supply Power: | 24VDC |
| Temp. Range: | 0-85℃ | Resolution: | 0.002g/cm3 |
| Material: | SS316 | Pressure: | 2Mpa |
| Highlight: | 316SS Liquid Density Meter,RS485 Control Liquid Density Meter,Liquid Density Transmitter |
||

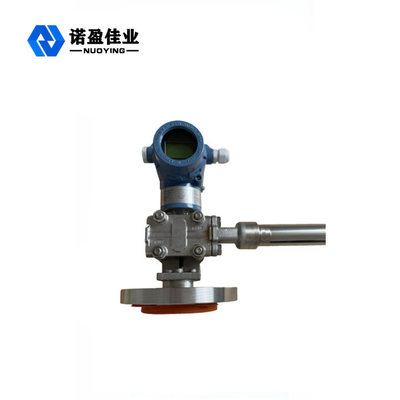

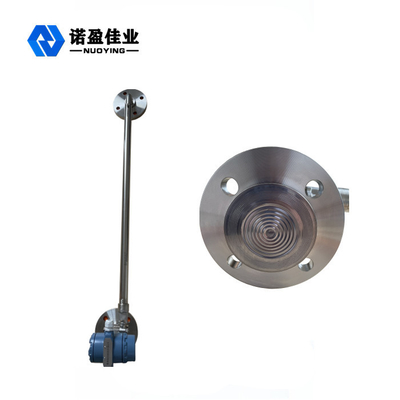

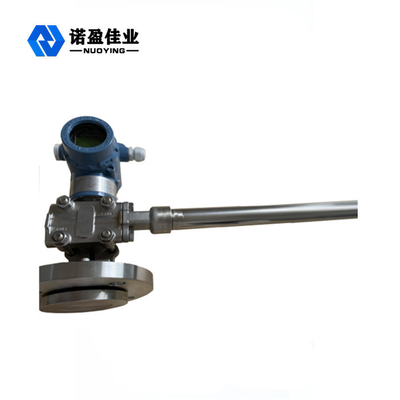

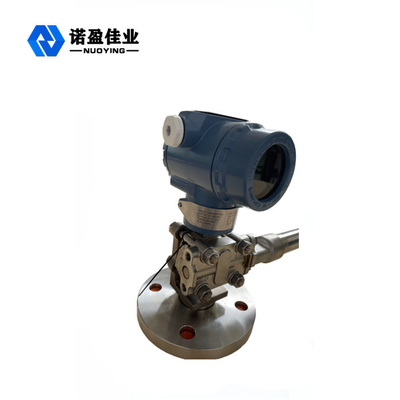

Liquid 316SS Density Meter Transmitter With RS485 Control
Liquid 316SS Density Meter Transmitter With RS485 Control Description:
The Liquid 316SS Density Meter Transmitter With RS485 Control is a two-wire density transmitter, liquid 316SS density meter transmitter with RS485 control used for industrial process control. The liquid 316SS density meter transmitter generates a corresponding RS485 signal according to the concentration and density, which can be remotely calibrated and monitored through digital communication.
Liquid 316SS Density Meter Transmitter With RS485 Control Parameters:
| Signal output | RS485 |
| Supply power | 24VDC |
| Density range | 0--2000g/cm3 |
| Accuracy | 0.002g/cm3 |
| Resolution | 0.001g/cm3 |
| Temp. range | -40--150℃ |
| Ambient temperature | -25--85℃ |
| Humidity range | 0--95% |
Liquid 316SS Density Meter Transmitter With RS485 Control Features:
1. The two-wire density transmitter with integrated structure has no moving parts and is easy to maintain.
2. Digital liquid crystal display, with backlight can be clearly displayed in the dark.
3. Easy to install and use, the reading can be displayed by inserting the liquid
4. Used for fluid or static liquid, suitable for pipeline and tank installation.
5. Continuous online measurement of liquid density without process interruption, which can be directly used for production process control.
6. The material of the parts in contact with liquid (wet parts) is optional, which is safe, reliable.
7. The hygienic type can be installed on the food production site.
