Product Details:
|
| Typical Application: | Easy Crystallization, Condensation, Corrosive Liquid, Powder | Antenna Material: | Plate Antenna, PTFE/316L(optional) |
|---|---|---|---|
| Measuring Range: | 40m | Protection Level: | IP67 |
| Medium Temperature: | -40~+260℃ | Process Connection: | Flange(optional) |
| Process Pressure: | -0.1~2.0MPa | ||
| High Light: | Flange Connected Radar Level Transmitter,Plate Type Radar Level Sensor,26GHz Radar Liquid Level Sensor |
||

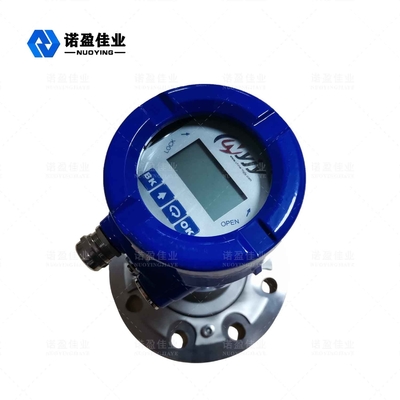

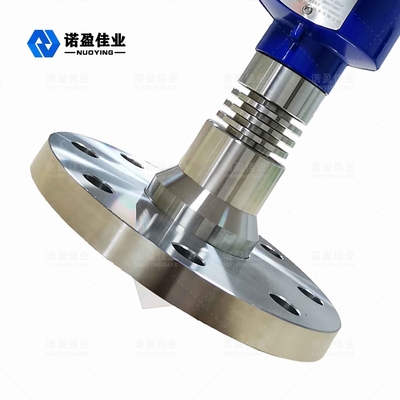

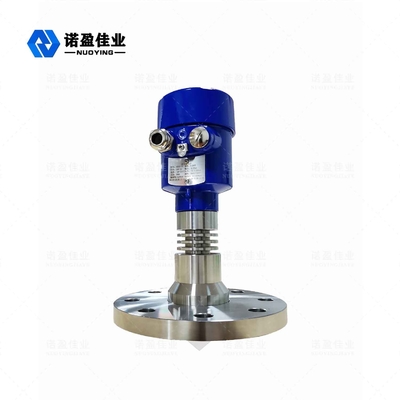

Plate Type 26GHz NYRD-PB Radar Level Transmitter Connected With Flange
26GHz NYRD-PB Radar Level Transmitter Working Principle
Radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measuring distance of 80m. The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).
The datum of measurement: Spiral bottom surface or sealing surface of flange.
26GHz NYRD-PB Radar Level Transmitter Design Feature
1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.
3.Severe dust environment has little impact on the operation of high frequency level meter.
4.Shorter wavelength, better reflection for inclined solid surfaces.
5.Small beam angle and concentrated energy.
6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.
7.High signal-to-noise ratio for better performance even under fluctuating conditions.
8.High frequency, the best choice for measuring solid and low dielectric constant media.
26GHz NYRD-PB Radar Level Transmitter Technical Parameters
| Typical application | Easy crystallization, condensation, corrosive liquid, powder |

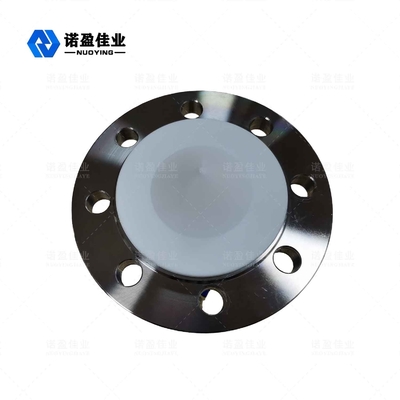

| Antenna material | Plate antenna, PTFE/316L(optional) |
| Measuring range | 40m |
| Measuring accuracy | 0.05%-0.1%F.S |
| Power supply | 24VDC(Two lines, four lines) |
| Medium temperature | -40~+260℃ |
| Process connection | flange(optional) |
| Process pressure | -0.1~2.0MPa |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
26GHz NYRD-PB Radar Level Transmitter Appication Field
1.Chemical: Crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia tank, asphalt storage tank, etc.
2.Metallurgy: Auxiliary material silos, electrolytic cell buffer tanks, etc.
3.Water Resources: Canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban flooding, etc.
4.Foodstuffs: Juice factory, milk factory, brewery storage tank, etc.
5.Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
6.Water treatment: Reservoirs, cesspools, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc.
7.Other: Quarry, environmental protection, shipbuilding and other industries.
