Product Details:
|
| Typical Application: | Solid Dust Particles | Antenna Material: | 316L(optional) |
|---|---|---|---|
| Measuring Range: | 80m | Power Supply: | 24VDC(Two Lines, Four Lines) |
| Medium Temperature: | -40~+130℃ | Process Connection: | Flange, Clamp (optional) |
| Process Pressure: | -0.1~4.0MPa | Signal Output: | 4...20mA/HART/RS485/Modbus... |
| High Light: | Solid Radar Level Transmitter,Polished Radar Level Meter,26GHz Radar Type Level Transmitter |
||

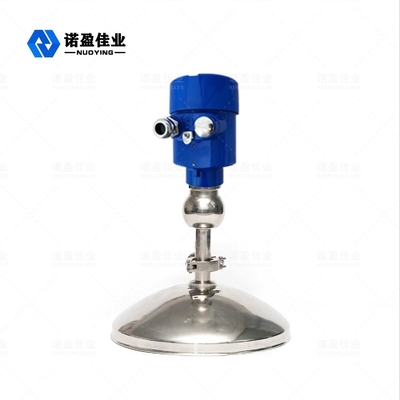

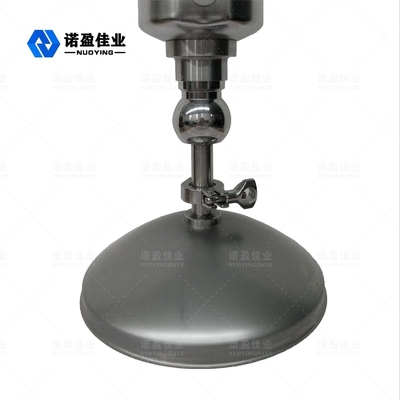

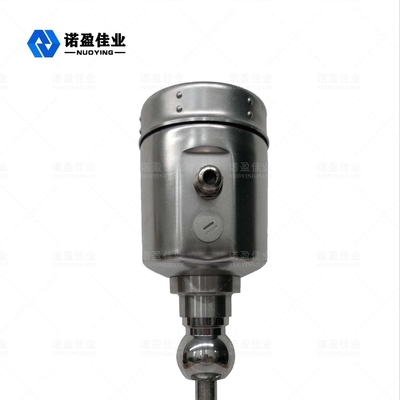

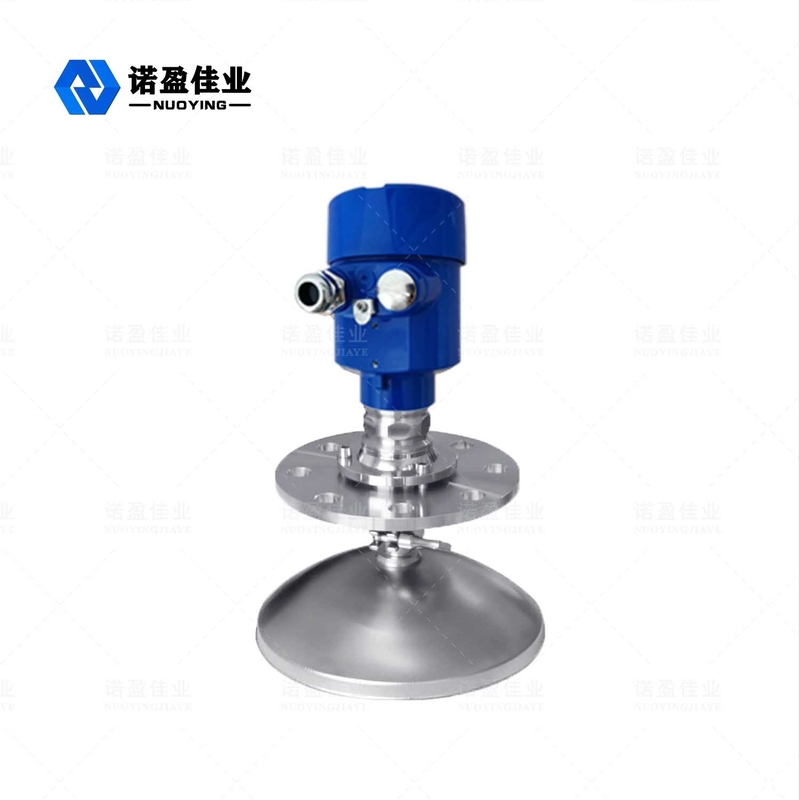

Hot Sale Polished Surface Type Solid 26GHz NYRD810 Radar Level Transmitter
26GHz NYRD810 Radar Level Transmitter Working Principle
Radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measuring distance of 80m. The antenna is further optimized, and the new fast microprocessor can carry out higher rate signal analysis and processing, making the instrument can be used in reaction kettle, solid bin and some complex measurement conditions.
The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).
The datum of measurement: Spiral bottom surface or sealing surface of flange.
26GHz NYRD810 Radar Level Transmitter Design Feature
1.Antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
2.Hardly affected by corrosion and foam; Not affected by medium density, temperature and pressure changes.
3.Severe dust environment has little impact on the operation of high frequency level meter.
4.Shorter wavelength, better reflection for inclined solid surfaces.
5.Small beam angle and concentrated energy.
6.The measurement blind area is smaller, and good results can be achieved for small tank measurement.
7.High signal-to-noise ratio for better performance even under fluctuating conditions.
8.High frequency, the best choice for measuring solid and low dielectric constant media.
26GHz NYRD810 Radar Level Transmitter Technical Parameters
| Typical application | Solid dust particles |
| Antenna material | 316L(optional) |
| Measuring range | 30m,80m(optional) |
| Measuring accuracy | 0.05%-0.1%F.S |
| Power supply | 24VDC(Two lines, four lines) |
| Medium temperature | -40~+130℃ |
| Process connection | flange, clamp (optional) |
| Process pressure | -0.1~4.0MPa |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6(optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
26GHz NYRD810 Radar Level Transmitter Application Field
1.Power plants: Reservoirs, silo pumps, steam ladles, ash storage, oil tanks, etc.
2.Chemical: Raw material silo, reaction tank, ammonia tank, asphalt storage tank, etc.
3.Metallurgy: Raw material silos, auxiliary material silos, electrolytic cell buffer tanks, etc.
4.Foodstuffs: Raw sugar storage tank, etc.
5.Pharmaceuticals: Chinese pharmaceutical storage tanks, separators, fermentation tanks, etc.
6.Paper: Raw material silo, storage tower, drying drum, chemical material storage silo, etc.
7.Other: Quarry, coal mine, environmental protection, shipbuilding and other industries.
