Product Details:
|
| Typical Application: | Liquid Level Measurement, Etc. | Product Model: | NYCFQ-UL、NYCFQ-UK |
|---|---|---|---|
| Float Material: | F4, PP, 304, PTFE (optional) | Explosion-proof Grade: | ExdIICT6Gb (see The Certificate) |
| Process Connection: | Thread, Flange (optional) | Rod Length: | 200~6000mm(optional) |
| Process Pressure: | -0.1~2.0MPa | Medium Density: | 0.5~2.0g/cm³ |
| High Light: | Float Ball Magnetostrictive Level Gauge,Liquid Magnetic Float Level Gauge,Magnetic Liquid Level Gauge |
||

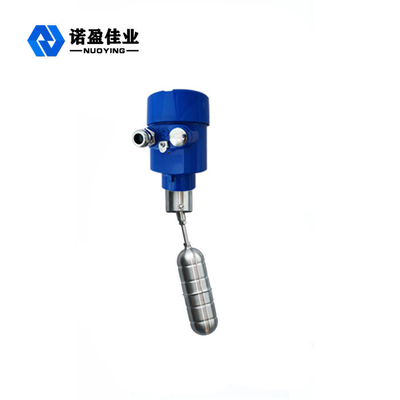

Design Feature Liquid Level Magnetic Float Ball Level Meter
Magnetic Float Ball Level Meter Design Feature
◎Stable and reliable performance, strong anti-lightning and anti-interference ability;
◎A variety of probe forms, suitable for various complex working conditions;
◎Different floating ball materials can be selected according to the different density of the medium.
Magnetic Float Ball Level Meter Technical Parameter
| Process connection | Thread, flange (optional) |
| Medium viscosity | ≤0.05Pa·S |
| Medium density | 0.5~2.0g/cm³ |
| Signal output | 4-20mA, SPDT |
| Protection class | IP 65, IP 67, IP 68(optional) |
| Explosion-proof grade | ExdIICT6Gb (see the certificate) |
| ※Note:The product can be customized according to the specific requirements of users. | |
