Product Details:
|
| Typical Application: | Liquids, Powders, Solid Particles | Antenna Material: | Flexible Cable/304/316/PTFE (optional) |
|---|---|---|---|
| Measuring Range: | 30m | Accuracy: | ±1mm |
| Power Supply: | 24VDC(Two-wire,Four- Wire) | Medium Temperature: | -40～+250℃ |
| Process Pressure: | -0.1～4.0MPa | Process Connection: | Thread, Flange (optional) |
| High Light: | Steel Cable Radar Level Meter,Cast Aluminum Guided Radar Level Transmitter,Guided Wave Radar Liquid Level Sensor |
||

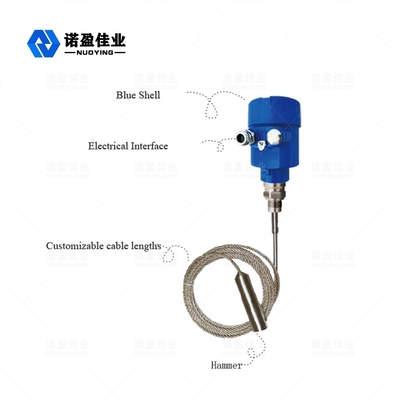

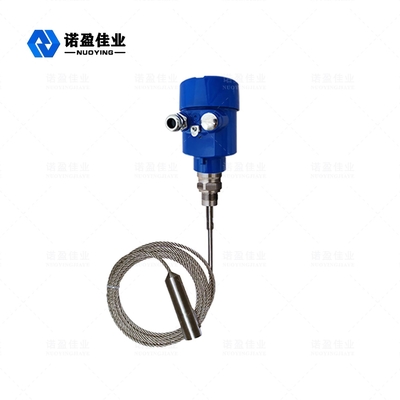

Cast Aluminum Case NYRD701 1.8GHz Guided Wave Radar Level Meter Steel Cable
NYRD701 1.8GHz Guided Wave Radar Level Meter
The guided wave radar level meter is a level meter based on the principle of time domain reflection (TDR). A variety of process connection methods and types of detection components make 70X series guided wave radar level gauges suitable for various complex working conditions and applications. Such as: high temperature, high pressure and low dielectric constant medium.The electromagnetic pulse of the radar level gauge propagates along the steel cable or probe at the speed of light. Part of the pulse of the level meter is reflected to form an echo and return to the pulse transmitter along the same path. The only radar that touches the medium Level meter transmitterThe distance between the transmitter and the surface of the measured medium is proportional to the propagation time of the pulse during that period, and the liquid level height is calculated.Using the pulse working mode, the product has extremely low emission power, and can be installed in various metal and non-metal containers, without harm to the human body and the environment.
NYRD701 1.8GHz Guided Wave Radar Level Meter Technical Parameter
| Typical application | Liquids, powders, solid particles |
| Antenna material | Flexible cable/304/316/PTFE (optional) |
| Measuring range | 30m |
| Accuracy | ±1mm |
| Power supply | 24VDC(Two-wire,Four- wire) |
| Medium temperature | -40～+250℃ |
| Process pressure | -0.1～4.0MPa |
| Process connection | Thread, Flange (optional) |
| Protection class | IP67 |
| Explosion-proof grade | ExiaⅡCT6 Ga(optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
※ Note: Products can be customized according to the specific requirements of users!
