Product Details:
|
| Typical Application: | Liquids, Powders,particles, Corrosive Media | Antenna Material: | PTFE (optional) |
|---|---|---|---|
| Measuring Range: | 30 M | Accuracy: | ±1mm |
| Power Supply: | 24 VDC(Two-wire,Four- Wire) | Medium Temperature: | -40～+250℃ |
| Pressure: | -0.1～2.0MPa | Explosion-proof Grade: | ExdⅡCT6 Gb(optional) |
| High Light: | High Corrosive Media Radar Level Meter,Guided Wave Radar Level Gauge,PTFE Guided Wave Radar Level Sensor |
||

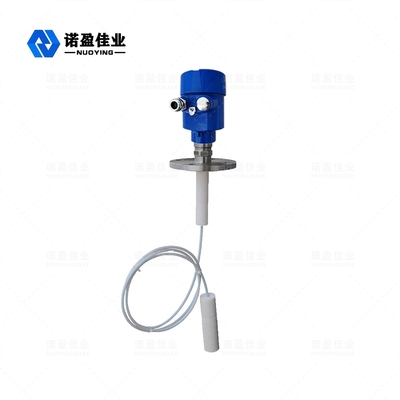

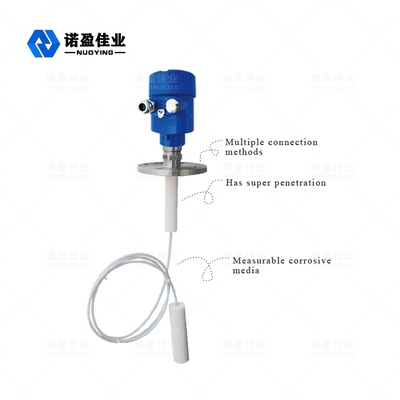

Highly Corrosive Media NYRD701 PTFE 1.8GHz Guided Wave Radar Level Meter
NYRD701 PTFE 1.8GHz Guided Wave Radar Level Meter
Guided wave radar level meter antenna using PTFE material,PTFE commonly known as "plastics king", PTFE is made up of tetrafluoroethylene by the polymerization of polymer compounds, it has excellent chemical stability, high corrosion resistance, sealing, lubrication is not sticky, electric insulation and good anti-aging endurance, PTFE has the following features:
NYRD701 PTFE 1.8GHz Guided Wave Radar Level Meter Technical Parameter
| Typical application | Liquids, powders,particles, corrosive media |
| Antenna material | PTFE (optional) |
| Measuring range | 30 m |
| Accuracy | ±1mm |
| Power supply | 24 VDC(Two-wire,Four- wire) (optional) |
| Medium temperature | -40～+250℃ |
| Pressure | -0.1～2.0MPa |
| Process connection | Sanitary clamp,Thread, Flange (optional) |
| Protection class | IP67,IP68 (optional) |
| Explosion-proof grade | ExdⅡCT6 Gb(optional) |
| Signal output | 4...20mA/HART/Modbus... |
※ Note: Products can be customized according to the specific requirements of users!
