Product Details:
|
| Typical Application: | Liquids,solid Particles, Corrosive Media | Antenna Material: | PTFE ,316,304(optional) |
|---|---|---|---|
| Measuring Range: | 6m | Power Supply: | 220VAC |
| Medium Temperature: | -40～+250℃ (optional) | Pressure: | -0.1～4.0MPa |
| Process Connection: | Thread, Flange (optional) | Protection Class: | IP67,IP68 |
| High Light: | Radar Level Meter Explosion Proof,PTFE Radar Liquid Level Gauge,1.8GHz Guided Radar Level Transmitter |
||

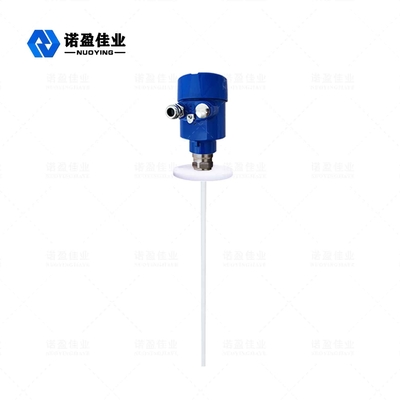

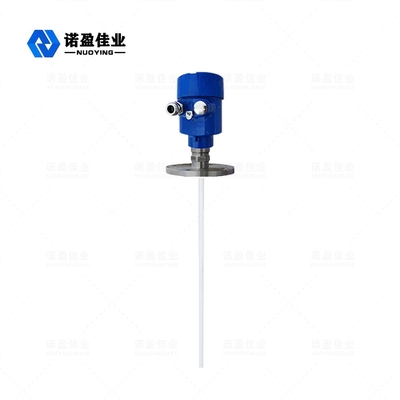

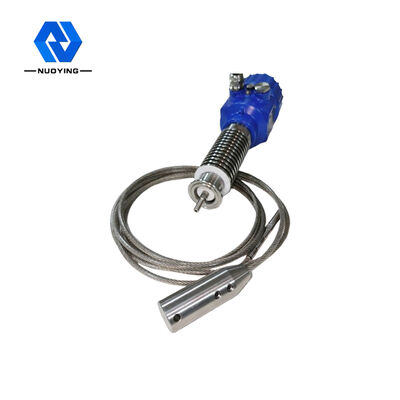

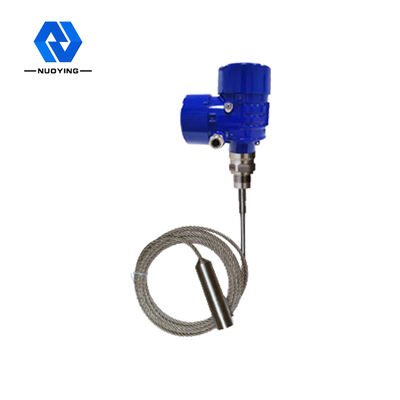

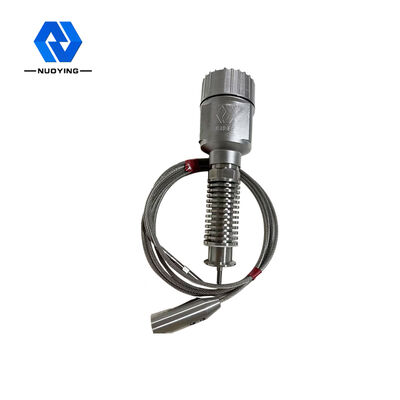

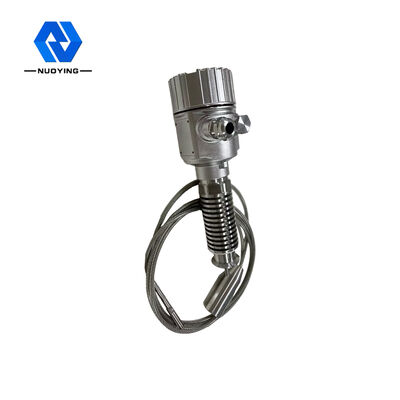

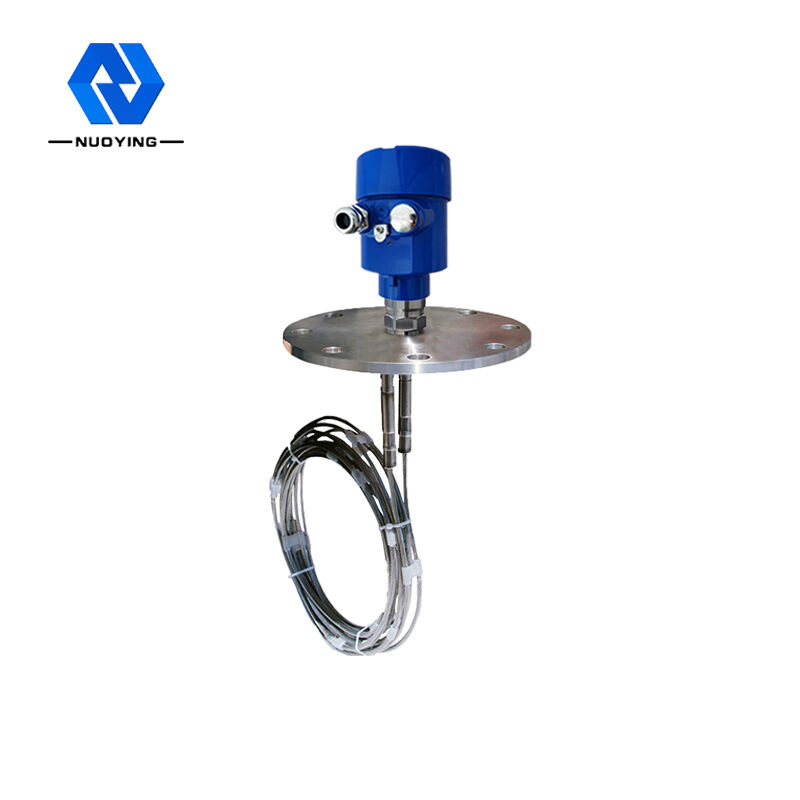

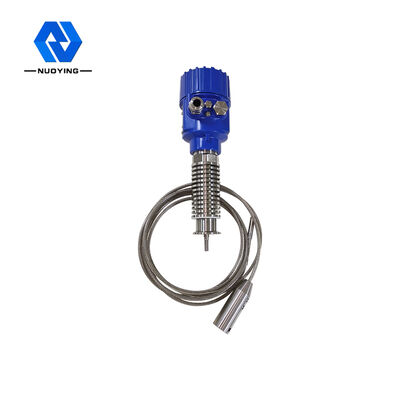

Strong Corrosive NYRD702 PTFE 1.8GHz Guided Wave Radar Level Meter Explosion-Proof
NYRD702 PTFE 1.8GHz Guided Wave Radar Level Meter Design Features
1. The guided wave radar level meter adopts advanced microwave processing technology and unique Echo Discovery echo processing technology, contact measurement, high measurement accuracy and more accurate measurement. At the same time, the guided wave radar is resistant to adhesion and is not affected by the external environment such as medium temperature and adhesion.
2. NYRD702 anticorrosive guided wave radar level meter is more suitable for the level monitoring of strong corrosive medium, such as hydrochloric acid solution, nitric acid solution, hydrobromic acid, dilute sulfuric acid and so on.
3. Using the pulse working mode, the product has extremely low emission power, and can be installed in various metal and non-metal containers, without harm to the human body and the environment.
4.A variety of process connection methods and types of detection components make 70X series guided wave radar level gauges suitable for various complex working conditions and applications. Such as: high temperature, high pressure and low dielectric constant medium.
NYRD702 PTFE 1.8GHz Guided Wave Radar Level Meter Technical Parameter
| Typical application | Liquids,solid particles, corrosive media |
| Antenna material | PTFE ,316,304(optional) |
| Measuring range | 6m |
| Accuracy | ±1mm |
| Power supply | 220VAC |
| Medium temperature | -40～+250℃ (optional) |
| Pressure | -0.1～4.0MPa |
| Process connection | Thread, Flange (optional) |
| Protection class | IP67,IP68 |
| Explosion-proof grade | ExdⅡCT6 Gb |
| Signal output | 4...20mA/RS485/Modbus... |
※ Note: Products can be customized according to the specific requirements of users!
