Product Details:
|
| Medium Temperature Range: | -50℃~+150℃ | Working Pressure: | 207bar |
|---|---|---|---|
| Stress Effect: | Negligible | Wetted Material: | 316L,2205 Stainless Steel |
| Fork Body Coating: | Standard PTFE Or PFA | Power Supply: | 24VDC,≥50 MA |
| Analog Signal Output: | 4-20 MA,0-1000Hz | Output Accuracy (20℃): | ±0.1% Of Reading |
| High Light: | 24VDC Fork Digital Density Meter,Aluminum Alloy Tuning Fork Digital Sensor,Digital Tuning Fork Density Meter |
||

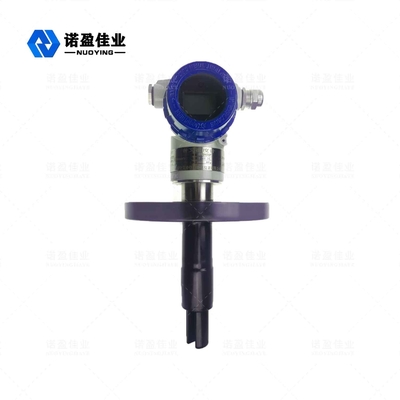

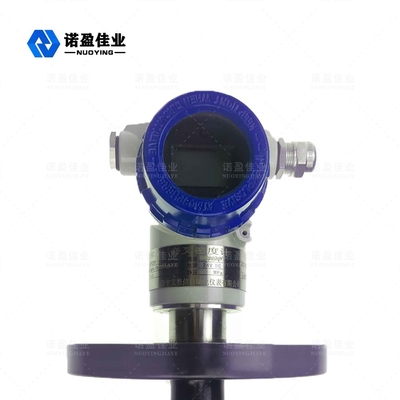

Digital Sensor NYDE Modbus RTU Tuning Fork Density Meter 24VDC Aluminum Alloy
NYDE Modbus RTU Tuning Fork Density Meter
The NYDE plug-in density meter adopts plug-in installation and is widely used in pipelines. The sensor works based on the principle of component vibration, and the component part is the part of the tuning fork immersed in the measured liquid.The density of medium in open tanks and closed tanks is directly determined by the vibration frequency received by the tuning fork of the sensor inserted into the medium. The tuning fork part induces vibration through an internal piezoelectric device fixed at the bottom end of the fork body. The built-in temperature sensor of the sensor provides temperature compensation for it.
Scope of application: The plug-in density meter can perform density detection online in real time. The oscillation frequency is detected by a secondary piezoelectric device fixed at the other end of the fork body, and then the signal is amplified by the circuit on the top. It can be used for process control of products with density as the basic parameter or quality control with solid percentage or concentration percentage as a reference.The density of the liquid is closely related to the vibration frequency when the measured liquid flows. Typical industries include petrochemical industry, wine industry, food industry, pharmaceutical industry and mineral processing (such as clay, carbonate, silicate, etc.), which are specifically used in the interface detection and mixing of multi-product pipelines in the above industries The density detection, the end-point monitoring of the reactor, and the interface detection of the separator.
NYDE Modbus RTU Tuning Fork Density Meter Technical Parameters
| Measuring range | 0.5 – 2.5 g /cc (500– 2500 kg/m3) |
| Calibration range | 0.5 – 2.5 g /cc (500 – 2500 kg/m3),0~100.0% |
| measurement accuracy | ± 0.002 g /cc (± 2 kg/m3) ,±0.5% |
| Repeatability | ± 0.001 g /cc (± 0.2 kg/m3) ±0.1% |
| Medium temperature range | -50℃~+150℃ |
| Working pressure | 207bar |
| Stress effect | Negligible |
| Built-in temperature sensor | Digital sensor |
| Wetted material | 316L,2205 Stainless steel |
| Fork body coating | Standard PTFE or PFA |
| Power supply | 24VDC,≥50 mA |
| Analog signal output | 4-20 mA,0-1000Hz |
| Output accuracy (20℃) | ±0.1% of reading |
| Output repeatability (-40~+85℃) | ± 0.05% FS |
| Process connection | DIN 50 PN16 DIN 50 PN40 |
| IDF and RJT sanitary | |
| Protection level | IP67 |
| shell | Aluminum alloy |
