Product Details:
|
| Medium Temperature Range: | -50℃~+200℃ | Working Pressure: | 3000psi |
|---|---|---|---|
| Stress Effect: | Negligible | Fork Body Coating: | Standard PTFE Or PFA |
| Power Supply: | 24VDC,≥50 MA | Output Accuracy (20℃): | ±0.1% Of Reading |
| Protection Level: | IP67,IP68 | Shell: | Aluminum Alloy |
| High Light: | Tuning Fork Portable Density Meter 24VDC,Aluminum Alloy Tuning Fork Density Meter,Flange Stainless Steel Density Meter |
||

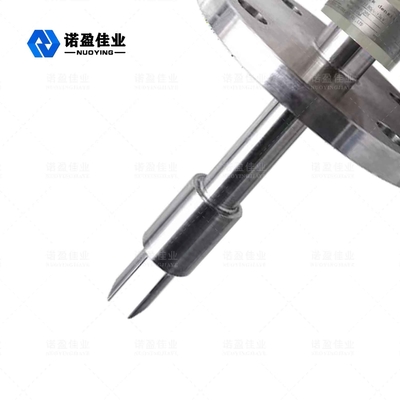

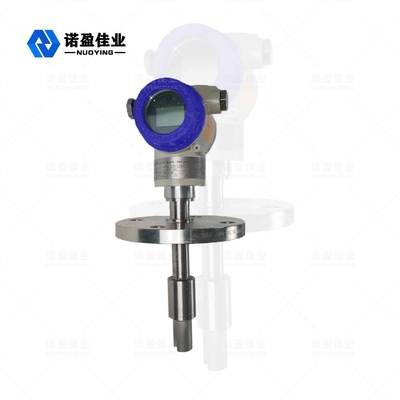

Aluminum Alloy NYDE Tuning Fork Density Meter Flange Stainless Steel 24VDC 0–600CP
NYDE Tuning Fork Density Meter Operating Principle
The sensor works based on the principle of component vibration, and the component part is the part of the tuning fork immersed in the measured liquid. Continuous online measurement of liquid density and temperature, high precision, more safe and reliable, can be directly used for production process control.The tuning fork part induces vibration through an internal piezoelectric device fixed at the bottom end of the fork body. The oscillation frequency is detected by a secondary piezoelectric device fixed at the other end of the fork body, and then the signal is amplified by the circuit on the top. Easy maintenance, no regular cleaning.The density of the liquid is closely related to the vibration frequency when the measured liquid flows. When the density of the measured liquid changes, the vibration frequency when the liquid flows also changes.Microprocessor-based electronic conversion device, integrated signal processing, calculation and diagnostic functions. Through the following equation, the density of the measured liquid can be accurately calculated.
D= K0+K1T+K2T2
D= Uncalibrated density of the measured medium (kg/m3)
T= Vibration frequency (μ s).
K0 , K1 , K2= constant
In the process of density detection, NYDE plug-in density meter can automatically compensate for the influence of temperature on the density (D) of the measured medium, and pressure has no significant influence on density.
NYDE Tuning Fork Density Meter Technical Parameters
| Measuring range | 0.5 – 2.5 g /cc (0 – 2500 kg/m3),0~100.0% |
| Calibration range | 0.5 – 2.5 g /cc (0 – 2500 kg/m3) |
| Medium temperature range | -50℃~+200℃ |
| Working pressure | 3000psi |
| Stress effect | Negligible |
| Built-in temperature sensor | Digital sensor |
| Wetted material | 316L,2205 Stainless steel,Titanium alloy |
| Fork body coating | Standard PTFE or PFA |
| Power supply | 24VDC,≥50 mA |
| Analog signal output | 4-20 mA,RS485 Modbus RTU |
| Output accuracy (20℃) | ±0.1% of reading |
| Output repeatability (-40~+85℃) | ± 0.05% FS |
| Process connection | DIN 50 PN16 DIN 50 PN40 |
| IDF and RJT sanitary | |
| Protection level | IP67,IP68 |
| Shell | Aluminum alloy |
