Product Details:
|
| Antenna Material: | Dual Cable/304 (optional) | Measuring Range: | 30m |
|---|---|---|---|
| Medium Temperature: | -40~+150℃ | Process Pressure: | -0.1~4.0MPa |
| Process Connection: | Flange (optional) | Protection Level: | IP67 |
| Typical Application: | Low Dielectric Constant Liquids, Powders, Solids | ||
| High Light: | Dual Cable Radar Level Transmitter,Guided Wave Radar Level Transmitter 30m,Guided Wave Radar Liquid Level Transmitter |
||

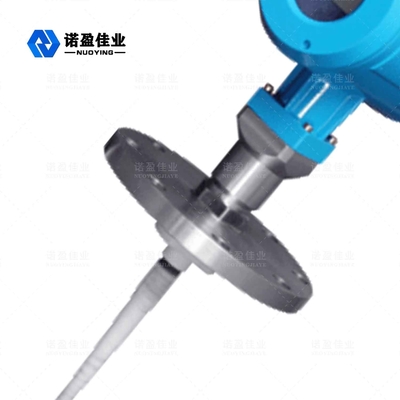

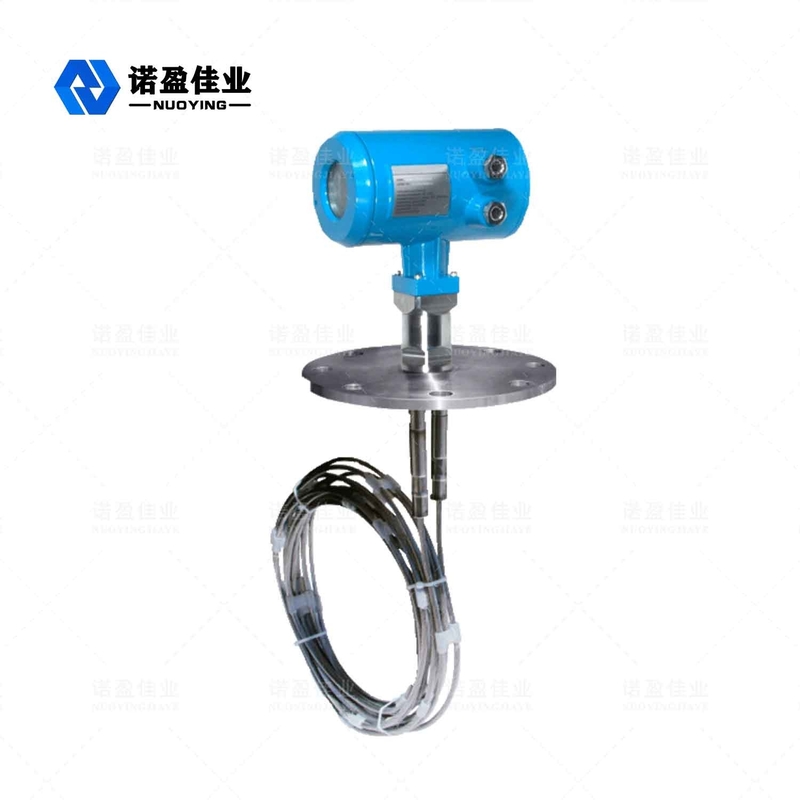

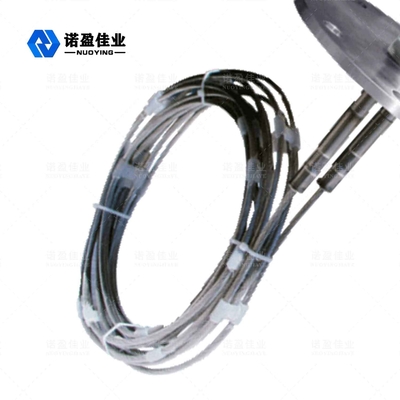

High Measurement Accuracy Dual Cable 30m NYRD703 Guided Wave Radar Level Transmitter
NYRD703 Guided Wave Radar Level Transmitter Working Principle
As a result of advanced microprocessor and unique choDiscovery echo processing technology, guided wave radar level meter can beused in a variety of complex conditions.Because of the type of process connections and detection components, making HCDAR-5X Series Guided Wave Radar Level Meter is suitable for a variety of complex conditions and applications. Such as: high temperature, high pressure and low dielectric constant media. Pulsed work, guided wave radar level instruments transmit power is very low, can be installed in a variety of metals, non-metallic container, no harm to humans and the environment.
NYRD703 Guided Wave Radar Level Transmitter Design Feature
1. The electromagnetic waves emitted are constant and do not require field verification or migration to change the range.
2. Various installing methods, can be connected by thread or flange.
3. Changes in temperature, pressure and density have no effect on the measurement.
4. There are no moving parts during the measuring process, no mechanical parts damaged problems, free maintenance.
5. Almost any liquid or stationary particle medium can be measured.
6. The disadvantage is there are blind zones at the top and bottom. The minimum dead zone on the top is 0.25m.
NYRD703 Guided Wave Radar Level Transmitter Technical Parameters
| Typical application | Low dielectric constant liquids, powders, solids |
| Antenna material | Dual cable/304 (optional) |
| Measuring range | 30m |
| Measuring accuracy | 0.05%-0.1%F.S |
| Power supply | 24VDC(Two lines, four lines) |
| Medium temperature | -40~+150℃ |
| Process pressure | -0.1~4.0MPa |
| Process connection | flange (optional) |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6(optional) |
| Signal output | 4...20mA/HART/RS485/Modbus... |
Note: Products can be customized according to the specific requirements of users.
